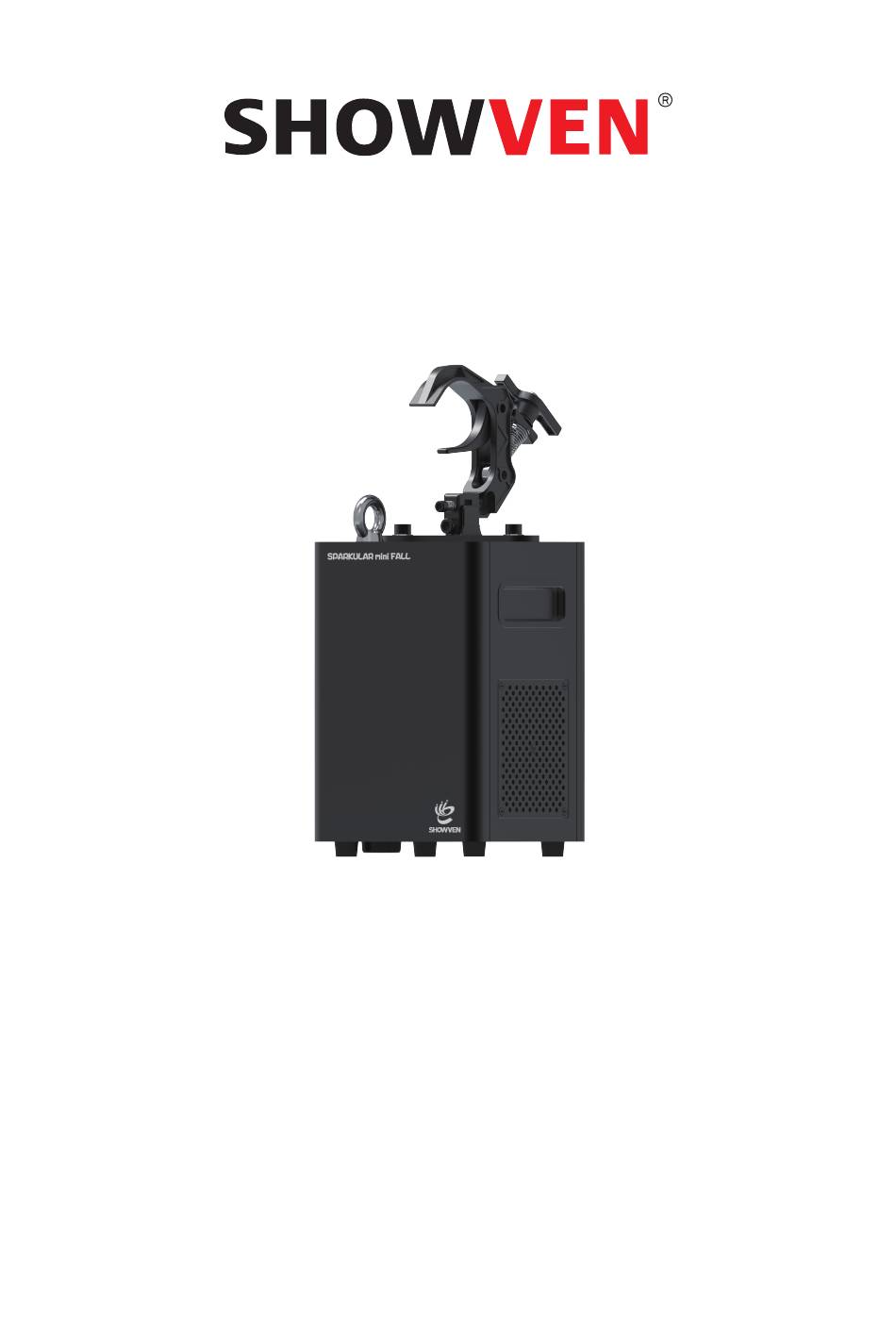

- Page 1 User Manual SPARKULAR miniFALL V1.0...
- Page 2 User Manual SPARKULAR miniFALL Please read this manual carefully before operating the product. This manual contains the warranty card, please keep it well. Safety Considerations 》Never touch the nozzle of SPARKULAR miniFALL, danger of getting burnt; 》Never touch the sparks which shooting out from the nozzle. 》Unauthorized repair are prohibited, it may cause serious incident.
- Page 3 Sparkular miniFALL Model No.BT14 Parameter Size 150×160×240mm Hopper capacity 280g Material Consumption 15g/min Weight Input 220 -240VAC, 50/60Hz Working Power 130w Working Temperature -10℃~ 50 ℃ Casing Anti-flame ABS Fall Length 3-4m(large)，2-3m(medium) Double DMX input interfaces, double AC Interface power interfaces Feature：...
- Page 4 Operation Panel: LCD information display area, showing operate menu and working status of machine. Light emitting diode display area: READY：After turning on machine, it will automatically preheat around 6 minutes, when the "READY" green light turns from flashing into long on, indicates that the machine is ready to work. When it flashes slowly, it indicates some error.
- Page 5 Interface Main Interface: First line : Display DMX address is “1”. Second line : Display the present inner core temperature and the temperature progress bar; displays remianing time is 7 minutes and 24 seconds. Error informations display table： Error Informations Explanation E0 System IC System error.
- Page 6 Explanation Options Range Setup inner Core temperature. Please don't change default Set Temperature 500-620 value without engineer's suggestion from SHOWVEN. Auto preheat function switch after turning on Auto Heat ON/OFF machine Adjust the sparks density. Please don't change default Density 70-100 value without engineer's suggestion from SHOWVEN.
- Page 7 3.Damage caused by external reasons (lightning strike, power supply etc); 4.Damage caused by improper installation or use; For product damage not included in warranty range, we can provide paid service. Invoice and warranty card are necessary when asking for service from SHOWVEN. --------------------------------------------------------------------------------------------------------------------------------- -------------------------------------------------------------------------------------...
- Page 8 Showven Technologies Co., Ltd Add：Building B1, Changsha E-center No.18, Xiangtai Road, Economic & Technology Development Zone, Hunan, China Tel：+86-731-83833068 Fax：+86-731-83833069 Web：www.showven.com E-mail：info@showven.com...
