- Page 1 USER MANUAL uFlamer II V1.0 2024/05/27 SHOWVEN Technologies Co., Ltd PREMIUM FACTORY - OFFICIAL DISTRIBUTOR info@premiumfactory.eu | www.premiumfactory.eu...
-
Page 2: Safety Instructions
Thanks for choosing SHOWVEN uFlamer II, we wish it will bring you lots of exciting moments. Please read the following user’s manual and related product installation guide carefully before operating this device. Safety Instructions Δ 1. Safety icons explanation Safety instructions warn of hazards when handling equipment and provide information on how to avoid those hazards. -
Page 3: Technical Specifications

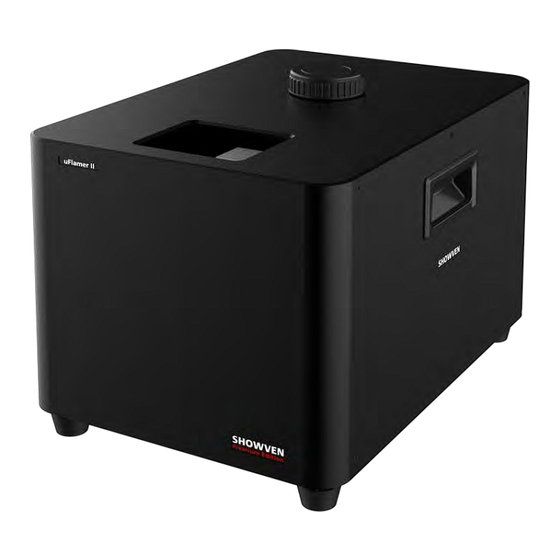

Technical Specifications Δ Model: uFlamer II Housing Material: Die-casting Aluminum Dimension: 460 330 330mm Weight: 25kg... - Page 4 Structure Δ 1. Rear panel 5. Igniter (Dual) 2. Top panel 6. Nozzle 3. Handle 7. Flame monitor 4. Fire box 8. Fuel tank lid Diagram of bottom panel...
- Page 5 DC5V power supply) 8. 9-60V pyro signal port 9. E-stop interface 10. ARM indicator light Display and setting Δ 1. Welcome interface Software Version UFlamer II-240307 Serial Number *********** Pump Run Time 00:00:00 Ignition Times 2. Main interface...
- Page 6 1.) Status Bar : appears when “Flame Monitor” is “ON” : appears when “Flame Monitor” is “ON” and detected successful ignition : appears when “External Trigger” is “ON” : appears when “safety switch” stay at “USER MODE” 2N/2P/6N: DMX mode : it appears when machine is charging : battery volume : No battery or battery box not connected...
-
Page 7: Advanced Menu
Operators can enable/disable the arm indicator light by set the “ARM STATE” in ADVANCED menu. If “ARM STATE” is ON, there will be three status: OFF: DMX signal input BLINK: DMX armed or Ext Ignite in advanced menu is ON ON: no DMX signal and Ext Ignite in advanced menu is OFF 4. - Page 8 Consecutive ignition failures Restart machine / reset safety E8 MissFire exceed the set value of “Fl Moni channel / set “Flame Exceed Fail Num” in advanced interface Monitor” to OFF 6. Monitoring Interface Press “MONI” enter below interface Menu Explanation Pressure Current pressure value Fuel Level...
- Page 9 Available only under 2CH-P 76-120/ mode. 102-153/ Safety channel DMX value Safety Level 127-178/ 102-153 within the set threshold 153-204/ range, firing enabled; 178-229 outside the range, firing disabled. 9. Advanced menu Select “ADVANCED” in menu interface, press “EDIT” enter advanced menu. Use UP / DOWN / SAVE to change the parameters.
-
Page 10: Dmx Control
II with 3 different channel mode: 2CH-P, 2CH-N and 6CH. 2CH-P: In this channel mode uFlamer II occupies 1 functional channel CH-F and 1 separate safety channel CH-S (this channel is independent from operational channel, can be shared with other machine). -
Page 11: Operation
0~239: Firing Disable (Emergency STOP) CH-2 Firing Enable / Disable 240~255: Firing Enable 6CH: In this channel mode uFlamer II occupies 6 functional channel. This channel mode is designed to control the uFlamer together with CIRCLE FLAMER on our Host Controller. Channel Function Value... - Page 12 ≥ 8 , please stop use uFlamer II. 2. Battery for uFlamer II uFlamer II can be powered through 16 pcs of 18650 cells. New uFlamer II come only with battery compartment, customer need to get 18650 cells locally. The battery we suggest to...
- Page 13 New uFlamer II supplied with a nozzle PM which generate up to 10m flame. b) Horizontal installation is preferred for uFlamer II. If need to install uFlamer in angles, to avoid fake error message please turn the TIP Setting and Low fuel switch to OFF status first.
- Page 14 E-stop interface is a power cut-off interface, the machine can be powered on normally only when E-STOP in is connected. For safer use of uFlamer II we suggest to connect it with E- stopper. For operators who don’t want to use E-stopper can plug a E-stop terminator in E- STOP IN to enable the device.
- Page 15 Connect a DMX cable to the DMX IN socket of first unit of uFlamer II, another head of this DMX cable connect to DMX console (such as FXcommander). Make sure the DMX console is powered off. b) Connect a DMX cable to the DMX OUT socket of previous uFlamer II, and the other end to the DMX IN of next machine.
- Page 16 Double confirm the prescribed safety isolation zone is clear, no person, animal or other property within this region. b) Switch the safety lock of uFlamer II to USER MODE. c) Firing, the operator should always have a clear view of the device, so that he/she can stop the show immediately when there is danger.
- Page 17 Nozzle L 3-5m 6-8m SFSMA024 Nozzle EL 3-4m 4-6m SFSMA027 Nozzle Replacement Use 14mm outer hexagon socket wrench (SFMET944) to disassemble the nozzle, clean the nozzle and nozzle socket with air gun (air compressor), change a new nozzle and install it. Igniter Position Adjustment Whenever changed the nozzle or ignition is not good, please check igniter pole position according to below parameters.
-
Page 18: Maintenance
Nozzle Installation Please assemble the stailess steel gasket, O ring and nozzle main part according to below picture. The O ring should be inside the stailess steel gasket, otherwise it may leads to fuel leakage. Use nozzle replacement tool outer hexagon socket wrench to tighten the nozzle. Maintenance Δ... -
Page 19: Warranty Instructions
Damage caused by external reasons (lightning strike, power supply etc.) Damage caused by improper installation or use; For product damage not included in warranty range, we can provide paid service. Invoice is necessary when applying for maintenance service from SHOWVEN... - Page 20 ASK US FOR YOUR PROFESSIONAL PRICES ! PREMIUM FACTORY SAS - DISTRIBUTEUR OFFICIEL 1 Route Neuve, 71710 MONTCENIS – FRANCE Office +33 805 69 13 27 | +33 608 630 452 info@premiumfactory.eu | www.premiumfactory.eu...
