Chapter 2 Unpacking and Installation
7 Loosen the two screws holding the blower in place.
8 Remove the exhaust tubing connected to the zero count filter.
9 Grip the electronic cage and lift slightly up and forward to remove the electronic
assembly.
Page 2-8

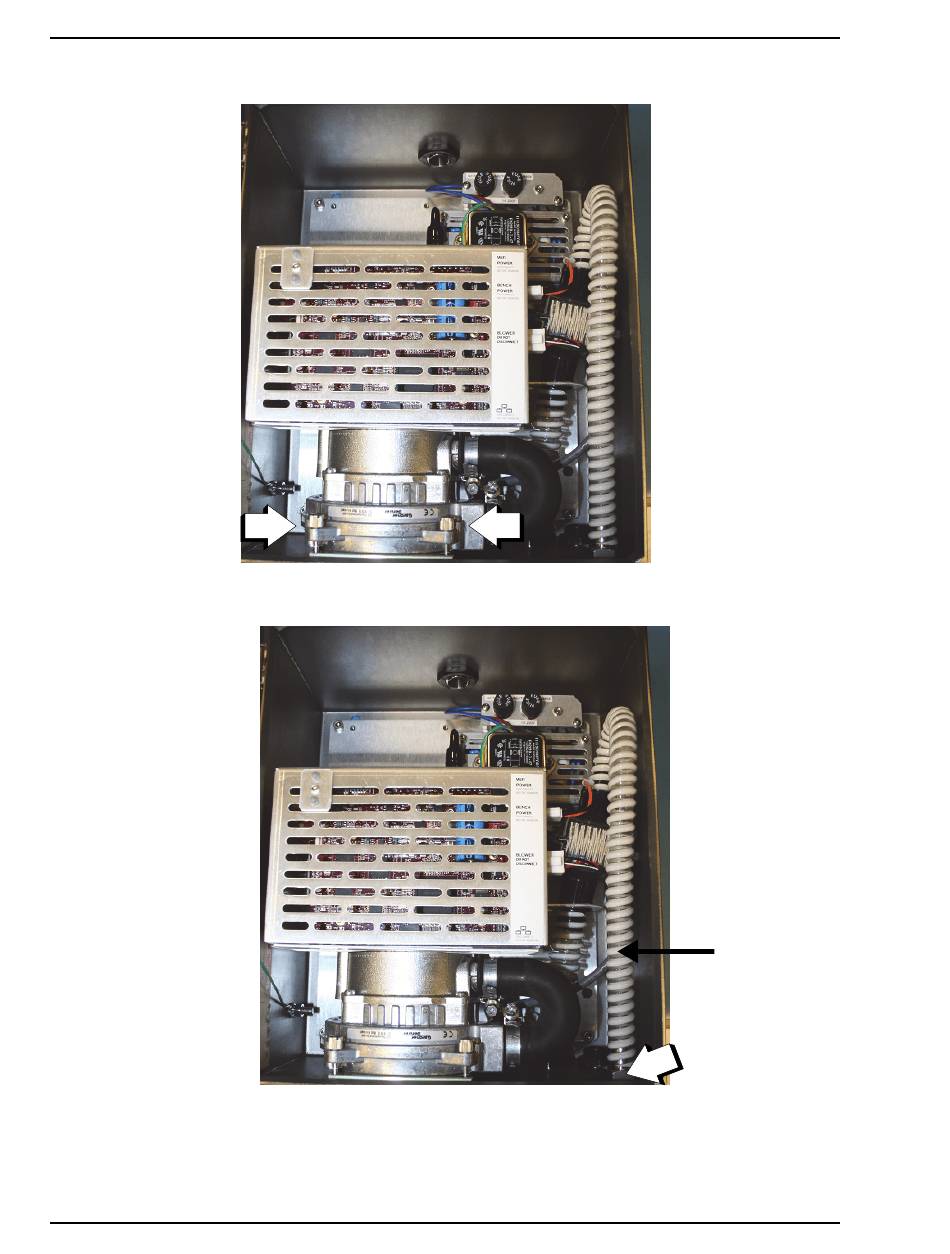

Figure 2-5 Blower screws

Figure 2-6 Exhaust filter

IsoAir 310P Aerosol Particle Sensor Operations Manual
Sensor Installation
Exhaust
Tubing
Disconnect
Here
