Specifications

Specifications
Particle Measuring Systems reserves the right to change specifications without notice.
Channel Options
Flow rate
Vacuum source
Pump shutoff
Calibration
Zero count level
Maximum particle
a
concentration
Exterior surface
Communications
Wireless
Controlling software
Data security
Status indicators
Dimensions (w, h, d)
Weight
Power
IsoAir 310P Aerosol Particle Sensor Operations Manual

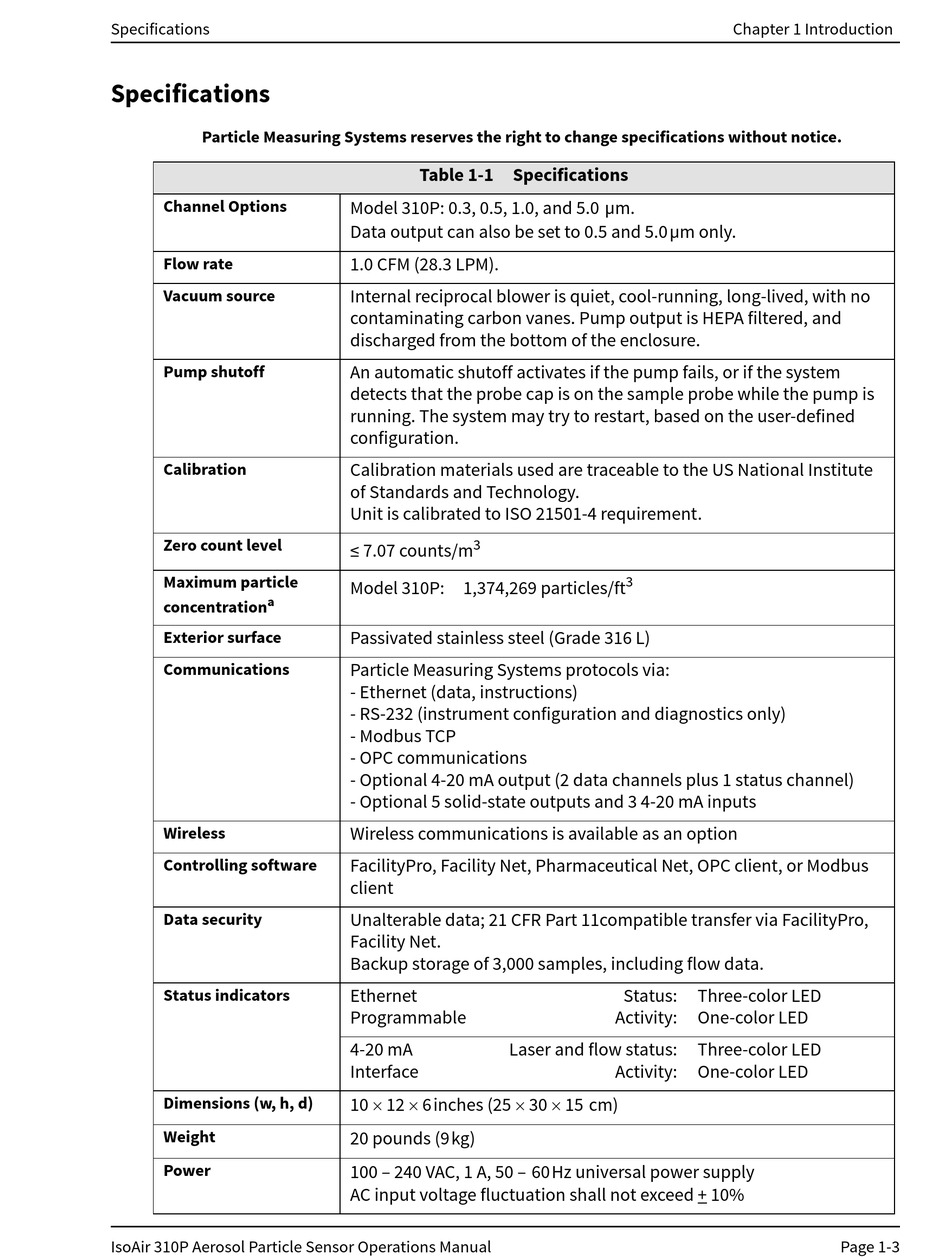

Table 1-1 Specifications

Model 310P: 0.3, 0.5, 1.0, and 5.0 µm.
Data output can also be set to 0.5 and 5.0 µm only.
1.0 CFM (28.3 LPM).
Internal reciprocal blower is quiet, cool-running, long-lived, with no
contaminating carbon vanes. Pump output is HEPA filtered, and
discharged from the bottom of the enclosure.
An automatic shutoff activates if the pump fails, or if the system
detects that the probe cap is on the sample probe while the pump is
running. The system may try to restart, based on the user-defined
configuration.
Calibration materials used are traceable to the US National Institute
of Standards and Technology.
Unit is calibrated to ISO 21501-4 requirement.
3
≤ 7.07 counts/m
Model 310P: 1,374,269 particles/ft
Passivated stainless steel (Grade 316 L)
Particle Measuring Systems protocols via:
- Ethernet (data, instructions)
- RS-232 (instrument configuration and diagnostics only)
- Modbus TCP
- OPC communications
- Optional 4-20 mA output (2 data channels plus 1 status channel)
- Optional 5 solid-state outputs and 3 4-20 mA inputs
Wireless communications is available as an option
FacilityPro, Facility Net, Pharmaceutical Net, OPC client, or Modbus
client
Unalterable data; 21 CFR Part 11compatible transfer via FacilityPro,
Facility Net.
Backup storage of 3,000 samples, including flow data.
Ethernet
Programmable
4-20 mA Laser and flow status:
Interface
10  12  6 inches (25  30  15 cm)
20 pounds (9 kg)
100 – 240 VAC, 1 A, 50 – 60 Hz universal power supply
AC input voltage fluctuation shall not exceed + 10%

Chapter 1 Introduction

3
Status: Three-color LED
Activity: One-color LED
Three-color LED
Activity: One-color LED
Page 1-3
