Sensor Installation
6 Remove the accessory board ribbon cable if options were ordered with this unit.
Ribbon
Cable
Connection
(If ordered)
IsoAir 310P Aerosol Particle Sensor Operations Manual

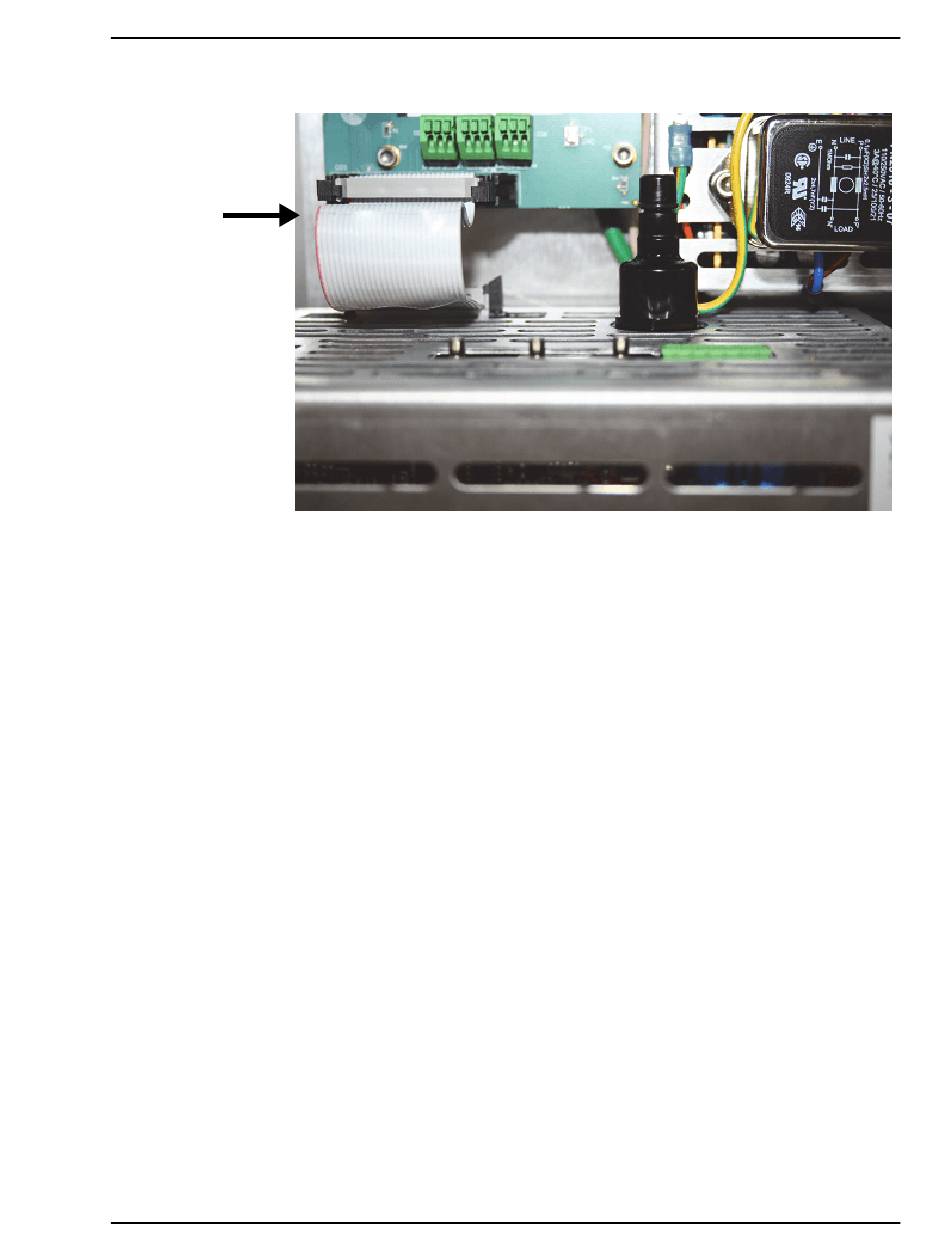

Figure 2-4 Accessory ribbon cable

Chapter 2 Unpacking and Installation
Page 2-7
