2.1

System Setup

You can easily get SPC started by following the below steps.
1. Unpack the SPC package. Check the packing list at the beginning of this man-
ual to make sure all items have been included.
2. Connect the power connector with M12 connector to the 24 V
The power lines can either be of some power adapter or in-house power source.
3.
Power Input
M12-A-5P-M
Power
SPC-515 Series User Manual

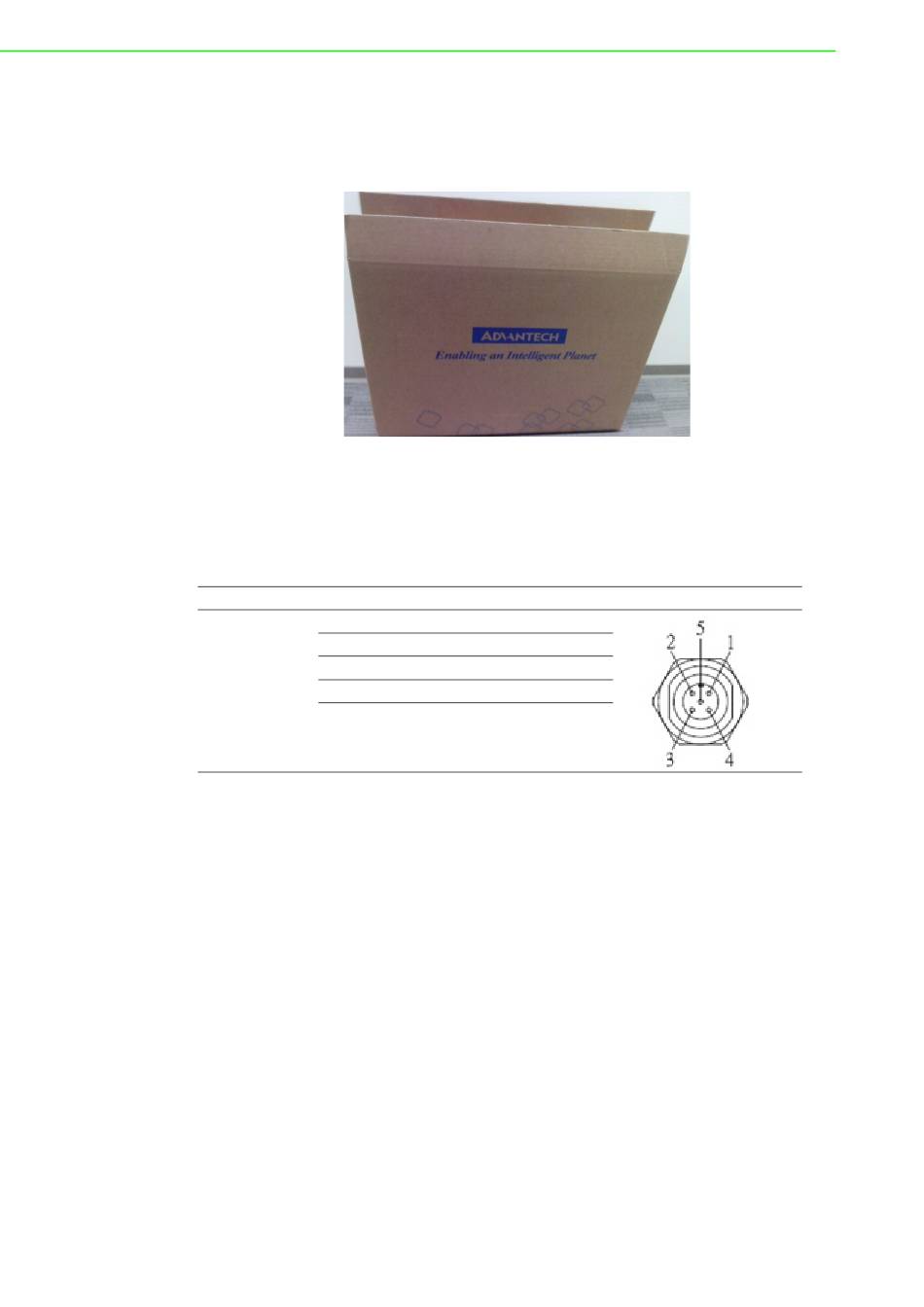

Figure 2.1 Unpack the Package
Pin Number Signal
1 DC 24V-
2 DC 24V-
3 DC 24V+
4 DC24V+
5 F_GND
Figure 2.2 Pin Definition of Power Connector
8
power lines.
DC
(Male)
