DISPLAY SCREEN DIAGRAM
LCD Screen:
Screen Name or Units

Diagnostic Alert
Logo

Numeric Data
Buttons:
(Up)
Select
+
(Left)
Back
–
(Down)
Select
ZL0067-0B PAGE 7
Alta Labs, Enercept, Enspector, Hawkeye, Trustat, Veris, and the Veris 'V' logo are trademarks or registered trademarks of Veris Industries, L.L.C. in the USA and/or other countries.
E51
Alive Indicator
♥
Export

Import

Tx
Rx
ERR Transmit Data
Receive Data
Receive Data Error
(Right)
Next
©2011 Veris Industries USA 800.354.8556 or +1.503.598.4564 / support@veris.com

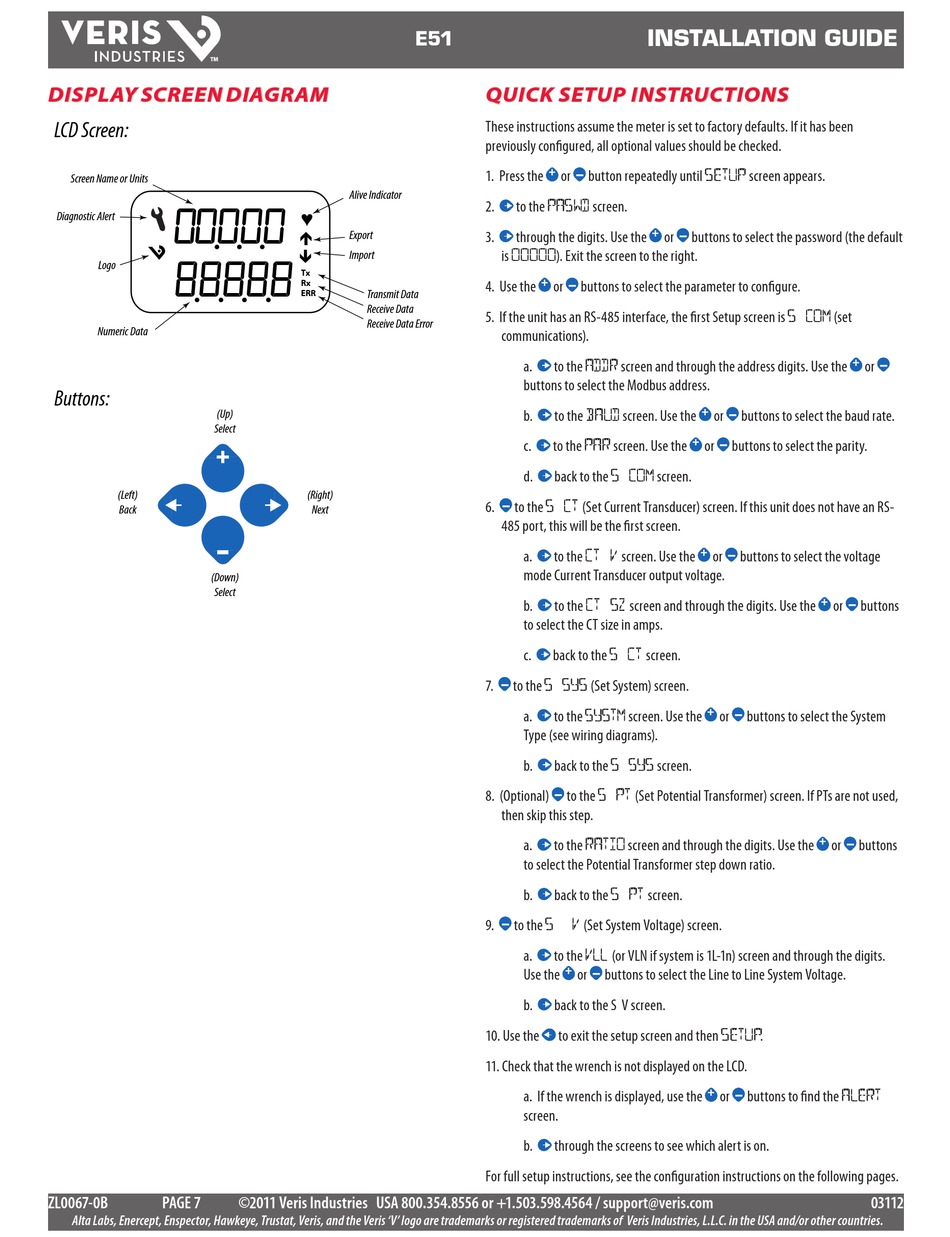

INSTALLATION GUIDE

QUICK SETUP INSTRUCTIONS

These instructions assume the meter is set to factory defaults. If it has been
previously configured, all optional values should be checked.
+ –
1. Press the or button repeatedly until SETUP screen appears.
+
2. to the PASWD screen.
+
3. through the digits. Use the + or
is 00000). Exit the screen to the right.
+ –
4. Use the or buttons to select the parameter to configure.
+
5. If the unit has an RS-485 interface, the first Setup screen is S COM (set
communications).
a. to the ADDR screen and through the address digits. Use the
buttons to select the Modbus address.
b. to the BAUD screen. Use the
c. to the PAR screen. Use the
d. back to the S COM screen.
–
6. to the S CT (Set Current Transducer) screen. If this unit does not have an RS-
485 port, this will be the first screen.
a. to the CT V screen. Use the
mode Current Transducer output voltage.
b. to the CT SZ screen and through the digits. Use the
to select the CT size in amps.
c. back to the S CT screen.
–
7. to the S SYS (Set System) screen.
a. to the SYSTM screen. Use the
Type (see wiring diagrams).
b. back to the S SYS screen.
–
8. (Optional) to the S PT (Set Potential Transformer) screen. If PTs are not used,
then skip this step.
a. to the RATIO screen and through the digits. Use the
to select the Potential Transformer step down ratio.
b. back to the S PT screen.
–
9. to the S V (Set System Voltage) screen.
a. to the VLL (or VLN if system is 1L-1n) screen and through the digits.
+ –
Use the or buttons to select the Line to Line System Voltage.
+
b. back to the S V screen.
10. Use the to exit the setup screen and then SETUP.
11. Check that the wrench is not displayed on the LCD.
a. If the wrench is displayed, use the
screen.
b. through the screens to see which alert is on.
For full setup instructions, see the configuration instructions on the following pages.
–
