1
Verify kit contents
ZigBee
Antenna
Ethernet
cross-over cable
2

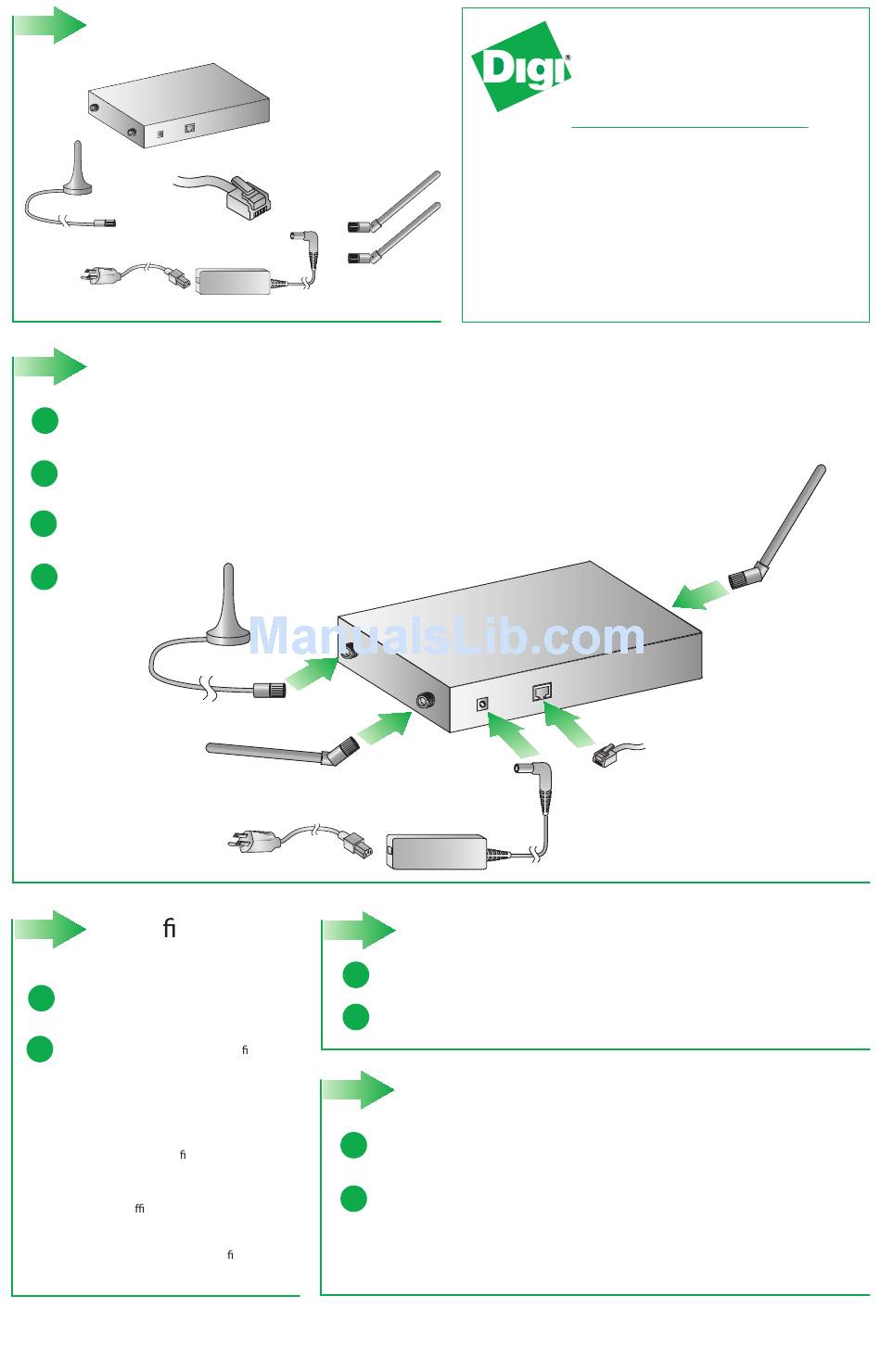

Connect hardware
a
Connect ZigBee antenna
b
Connect cellular antennas
Connect Ethernet cross-over cable to a PC and the
c
Ethernet port located directly next to the power jack
d
Connect power supply
3
Con gure your
cellular settings
a
Open your web browser and enter the IP
address 192.168.1.1 in the URL address bar
b
From the web interface, under Con guration,
click "Mobile." Enter your service provider name
and connection parameters and click "Apply."
For CDMA carriers that support Over-the-Air
provisioning, select "Click Here" to automatically
provision the device, then click "Apply."
Your device is now con gured. If you would
like to verify connections go to steps 4 and 5
If you have di culty discovering your device,
NOTE:
make sure your host computer is set up to obtain IP
addresses sutomatically (DHCP server is enabled by
default on the device). Also ensure all rewall
software is temporarily disabled
© 2007 Digi International, Inc.
Digi, Digi International, Inc., Digi Connect, ConnectPort and the Digi logo are trademarks or registered trademarks of Digi International, Inc., in the United States and other countries worldwide. All other trademarks are property of their respective owners.
ConnectPort X4
Cellular Antennas
may be sold
separately
Power Supply
a
a
b
a
b
For additional information about your cellular connection, click System Information > Mobile or
reference the User's Guide provided on the Digi support site (www.digi.com/support/)
b
d
4
Discover ZigBee Mesh Network
Under Administration, click System Information > Mesh Network
Click Discover Mesh Network. You should see the devices on your Mesh network
5
Validate Internet connection
Disconnect the Ethernet cross-over cable and reconnect it. This will re-establish the Ethernet
connection by assigning a new IP address through the DHCP server
To verify your Internet connection, enter a website of your choice (e.g. www.digi.com) in the URL
address bar of your browser and click "enter." Connecting to a website indicates the connection
is working
Quick Start Guide
ConnectPort
X4
™
with CDMA, 1xRTT, EVDO Rev. 0,
or EVDO Rev. A provisioning
b
c
90000871_B
