Digi ConnectPort x4 Quick Start Manual

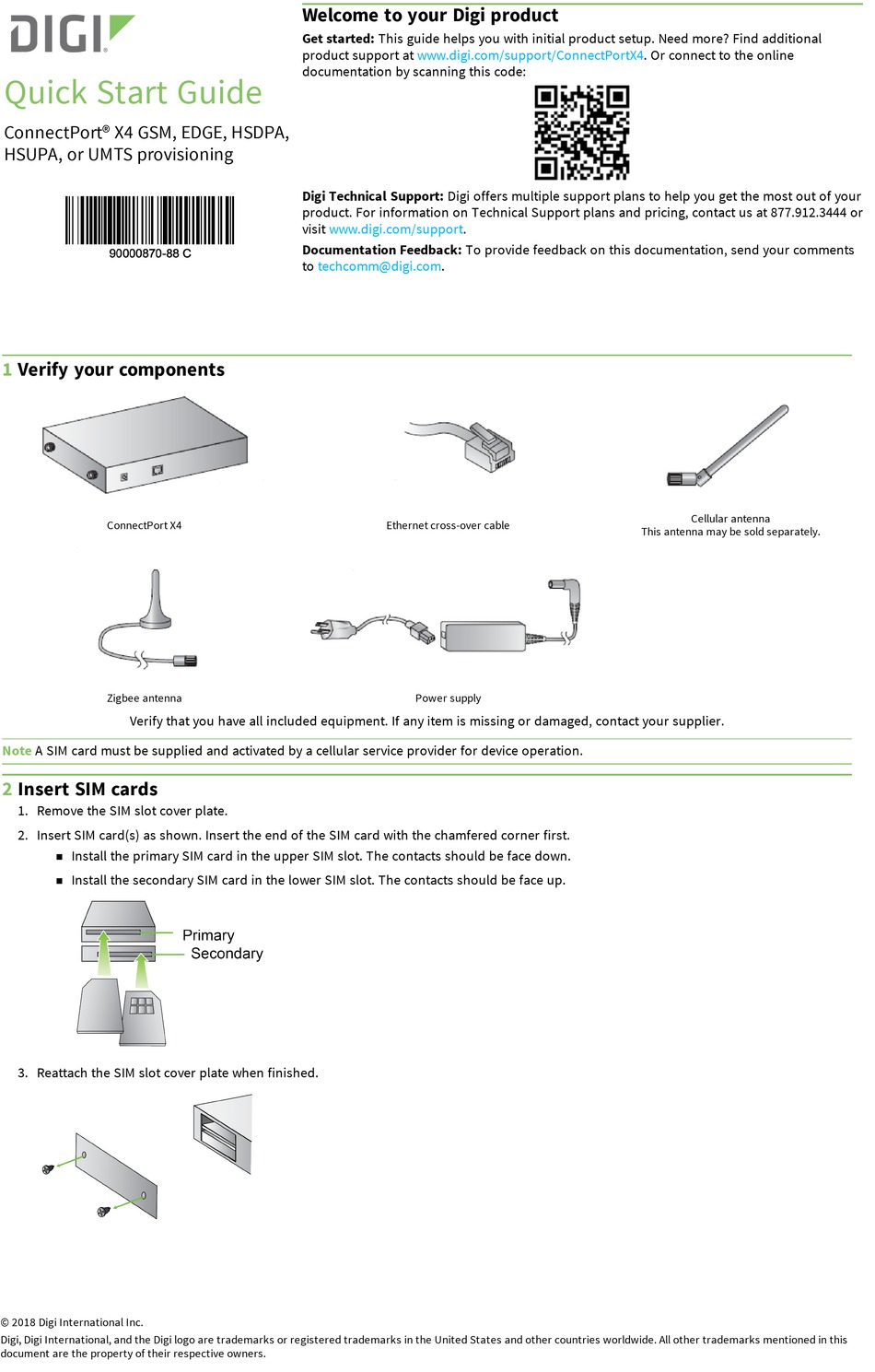

Quick Start Guide
ConnectPort® X4 GSM, EDGE, HSDPA,
HSUPA, or UMTS provisioning
1

Verify your components

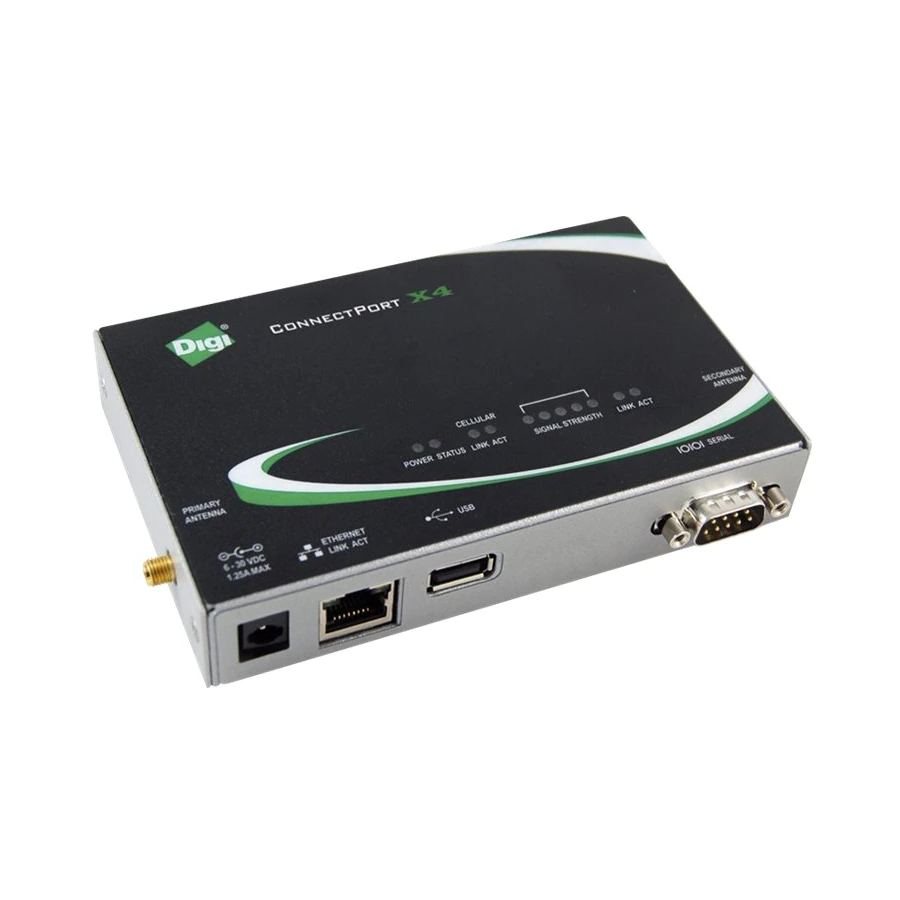

ConnectPort X4
Zigbee antenna
Verify that you have all included equipment. If any item is missing or damaged, contact your supplier.
Note A SIM card must be supplied and activated by a cellular service provider for device operation.
2

Insert SIM cards

1. Remove the SIM slot cover plate.
2. Insert SIM card(s) as shown. Insert the end of the SIM card with the chamfered corner first.
Install the primary SIM card in the upper SIM slot. The contacts should be face down.
n
Install the secondary SIM card in the lower SIM slot. The contacts should be face up.
n
3. Reattach the SIM slot cover plate when finished.
© 2018 Digi International Inc.
Digi, Digi International, and the Digi logo are trademarks or registered trademarks in the United States and other countries worldwide. All other trademarks mentioned in this
document are the property of their respective owners.
Welcome to your Digi product
Get started: This guide helps you with initial product setup. Need more? Find additional
product support at www.digi.com/support/ConnectPortX4. Or connect to the online
documentation by scanning this code:
Digi Technical Support: Digi offers multiple support plans to help you get the most out of your
product. For information on Technical Support plans and pricing, contact us at 877.912.3444 or
visit www.digi.com/support.
Documentation Feedback: To provide feedback on this documentation, send your comments
to techcomm@digi.com.
Ethernet cross-over cable
Power supply
Cellular antenna
This antenna may be sold separately.
