TM

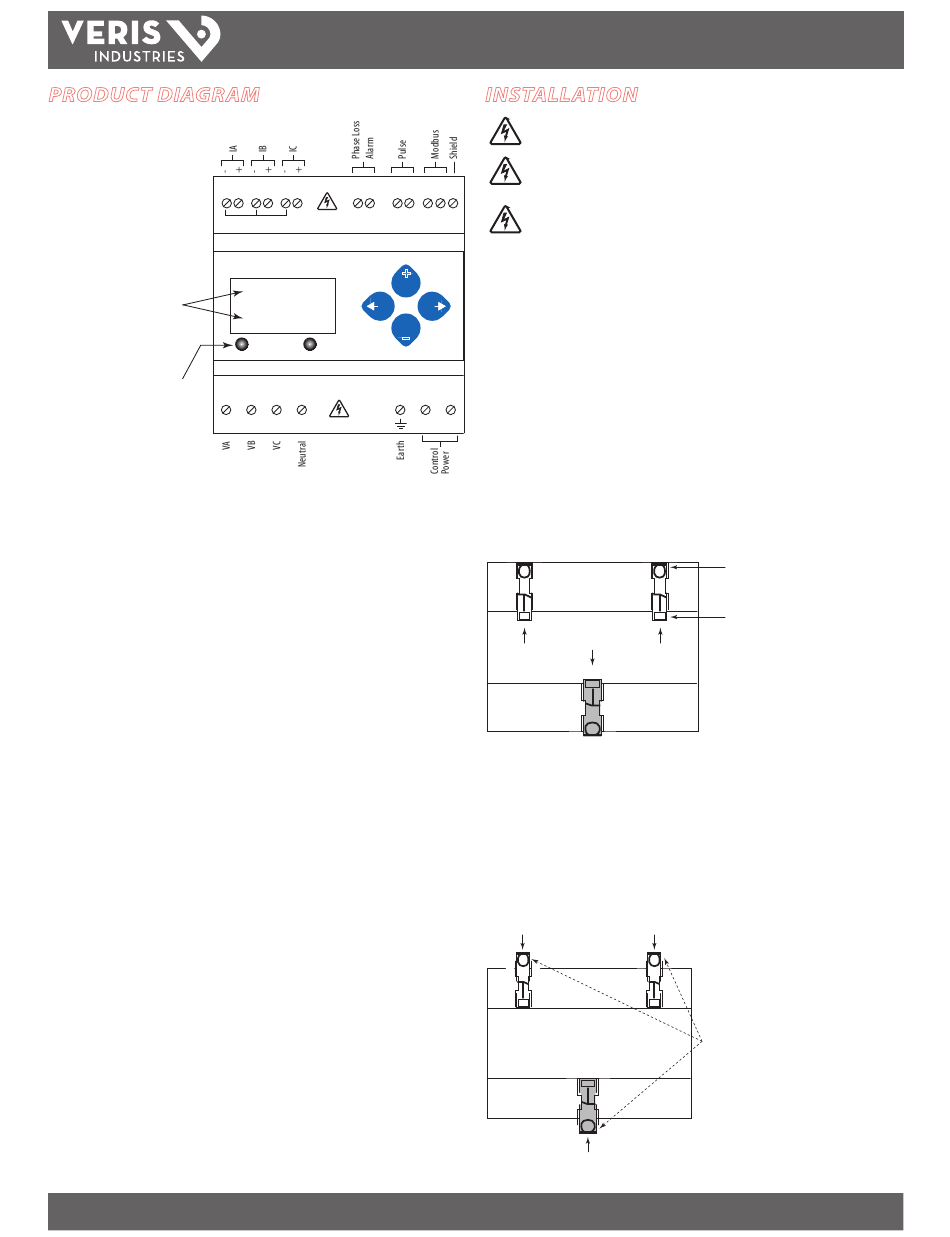

PRODUCT DIAGRAM
Common - 1 or 1/3 VAC Input
Two 5-character rows
of display text.
Top row alphanumeric;
Bottom row numeric only
The red Alarm LED lights when
any of the 3 phase voltages
VOLTAGE INPUTS
drop below the selected thresh-
CAT III 50/60 Hz
old. The green Energy LED lights
A
momentarily each time the
Energy output pulse is active.
ZL0067-0B
PAGE 3
Alta Labs, Enercept, Enspector, Hawkeye, Trustat, Veris, and the Veris 'V' logo are trademarks or registered trademarks of Veris Industries, L.L.C. in the USA and/or other countries.
A
B
C
Alarm
Energy
NC
NO
+
kWh
1234.5
–
Alarm
Energy
UL: 90V
- 600V
CE: 90V
- 300V
L-N
L-L
L-N
L-N
B
C
N
©2011 Veris Industries USA 800.354.8556 or +1.503.598.4564 / support@veris.com
E51
INSTALLATION
Disconnect power prior to installation.
Any covers that may be displaced during the installation
must be reinstalled before powering the unit.
OUTPUT
Mount the meter in an appropriate electrical enclosure
+ - S
near equipment to be monitored.
Do not install on the load side of a Variable Frequency Drive
(VFD), aka Variable Speed Drive (VSD) or Adjustable Frequency
Drive (AFD).
Observe correct CT orientation.
The meter can be mounted in two ways: on standard 35 mm DIN rail or screw-
mounted to the interior surface of the enclosure.
CONTROL POWER
0.1A 50/60 Hz
A. DIN Rail Mounting
1
2
1. Attach mounting clips to the underside of the housing by sliding them into the
slots from the inside. The stopping pegs must face the housing, and the outside
edge of the clip must be flush with the outside edge of the housing.
2. Snap the clips onto the DIN rail. See diagram of the underside of the housing
(below).
Insert clips from inside
3. To prevent horizontal shifting across the DIN rail, use two Veris AV02 end stop clips.
B. Screw Mounting
1. Attach the mounting clips to the underside of the housing by sliding them into the
slots from the outside. The stopping pegs must face the housing, and the screw
hole must be exposed on the outside of the housing.
2. Use three #8 screws (not supplied) to mount the meter to the inside of the
enclosure. See diagram of the underside of the housing (below).
Insert clips from outside
INSTALLATION GUIDE
Clip flush with
outside edge
Snap onto
DIN rail
Screw holes
exposed for
mounting
