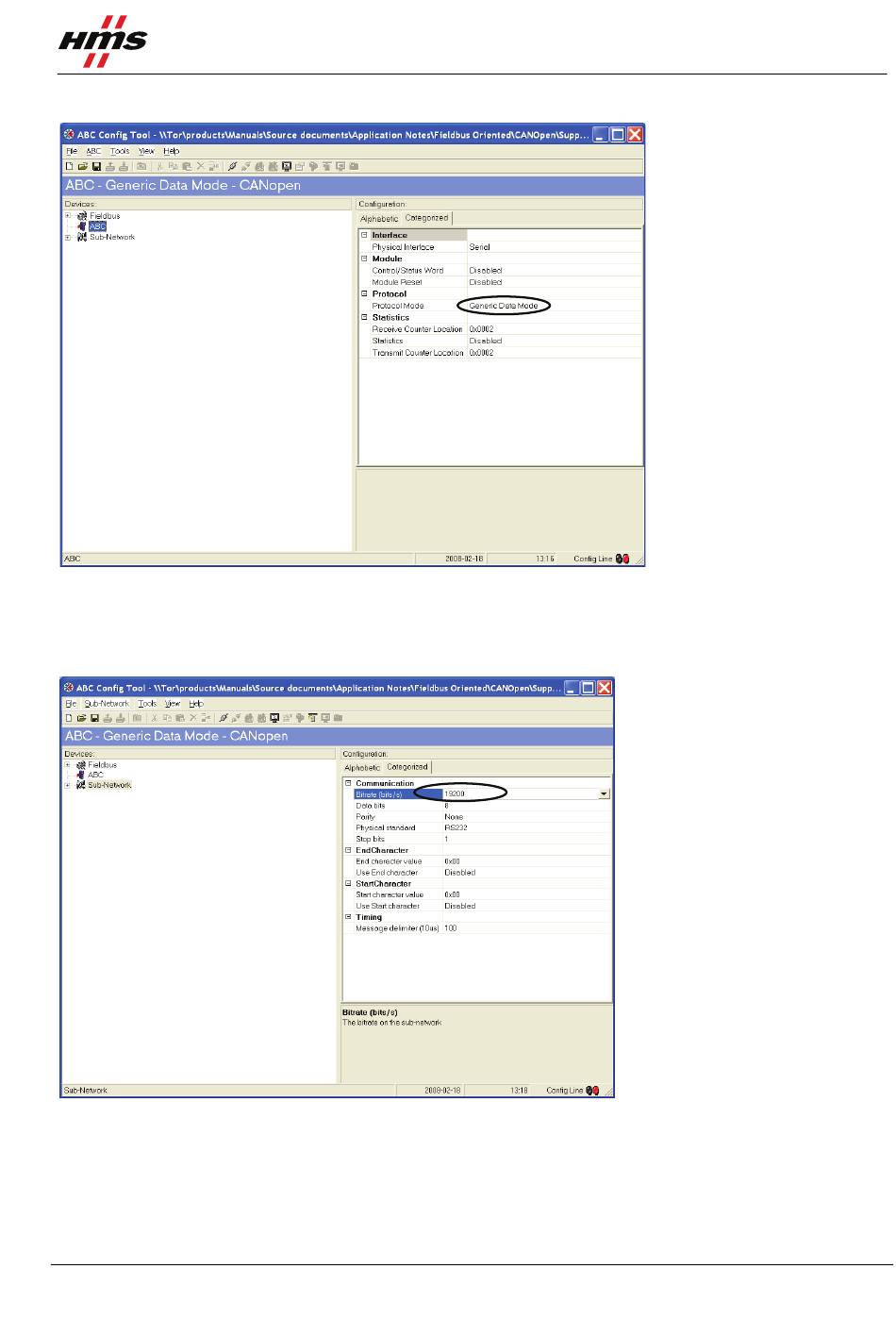

Figure 5
Configuring the ABC.
In this case a loop back dongle at the serial connection of the Communicator is connected. To loop data the
generic data mode is selected, all other values are left at their defaults. The next step is to configure the sub-
network.
Figure 6
Configuring the Sub-Network.
In this case the bit rate is set to 19200 bits/s, all other parameters are left at their default values. Right click
on new node and add consume and a produce transaction as shown below.
www.anybus.com
How to configure an Anybus CANopen slave module with TwidoSoft
HMS Industrial Networks AB
SCM-7032-042
Rev 1.01
Page 9 (29)
