Anybus X-gateway configuration
Use the HyperTerminal or TeraTermPro on a PC to configure the X-gateway. Connect a serial cable
between the PC and the config port on the X-gateway.
Start the HyperTerminal and Open the File menu and click on new. Choose the desired COM port and then
click on OK. The following window will appear.

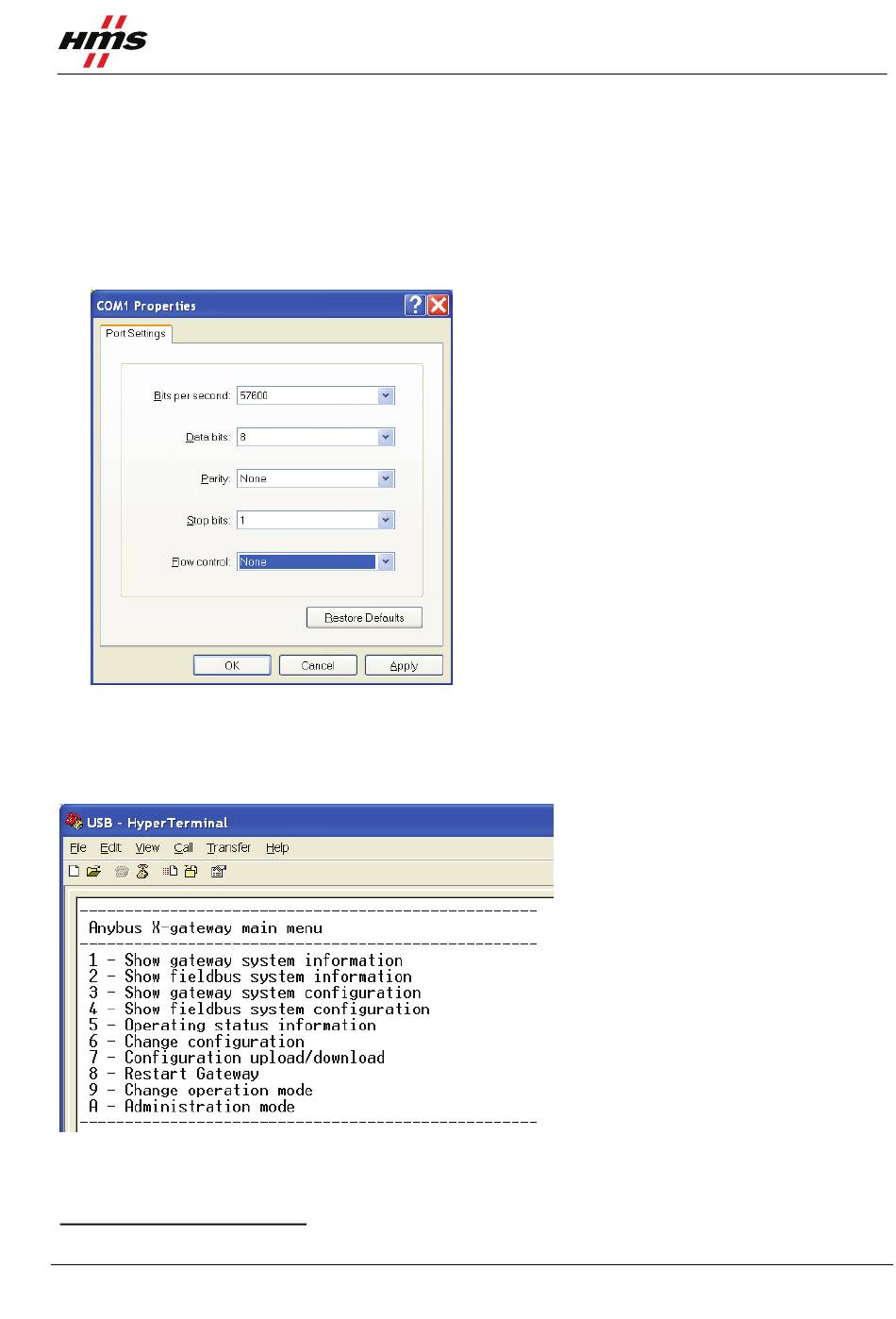

Figure 10 Configuring the connection in the HyperTerminal.
Make sure the settings are identical to those shown in the window above. Alternatively download a
HyperTerminal session file from the HMS website
Connect and press ESC and the following menu will appear.
Figure 11 Anybus X-gateway main menu.
Press 6 and enter the desired configuration.
1
www.anybus.com
www.anybus.com
How to configure an Anybus CANopen slave module with TwidoSoft
1
, double click on it and select COM port.
HMS Industrial Networks AB
SCM-7032-042
Rev 1.01
Page 12 (29)
