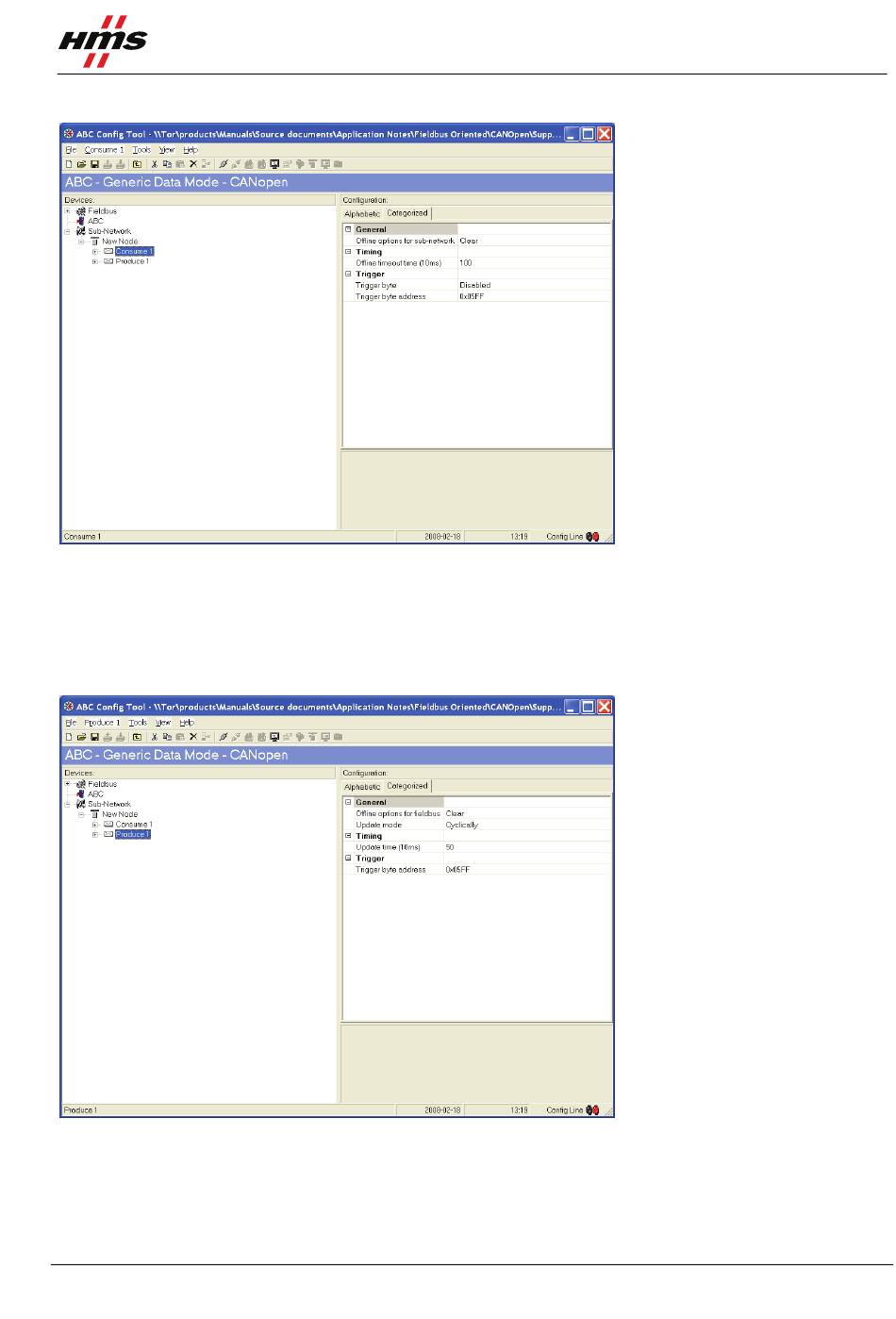

Figure 7
Configuring the consume transaction.
Leave the settings for the consume transaction at the defaults as shown above.
For the produce transaction the update time is set to 500ms as shown below.
Note: The update time for the produce transaction is to be set to less than the offline timeout time for the
consume transaction.
Figure 8
Configuring the produce transaction.
www.anybus.com
How to configure an Anybus CANopen slave module with TwidoSoft
HMS Industrial Networks AB
SCM-7032-042
Rev 1.01
Page 10 (29)
