HMS Anybus CANopen Slave How To Configure page 25

4 Enter some values in the Retained column
output bytes QWC1.0.0, QWC1.0.1 and QWC1.0.2 are written.

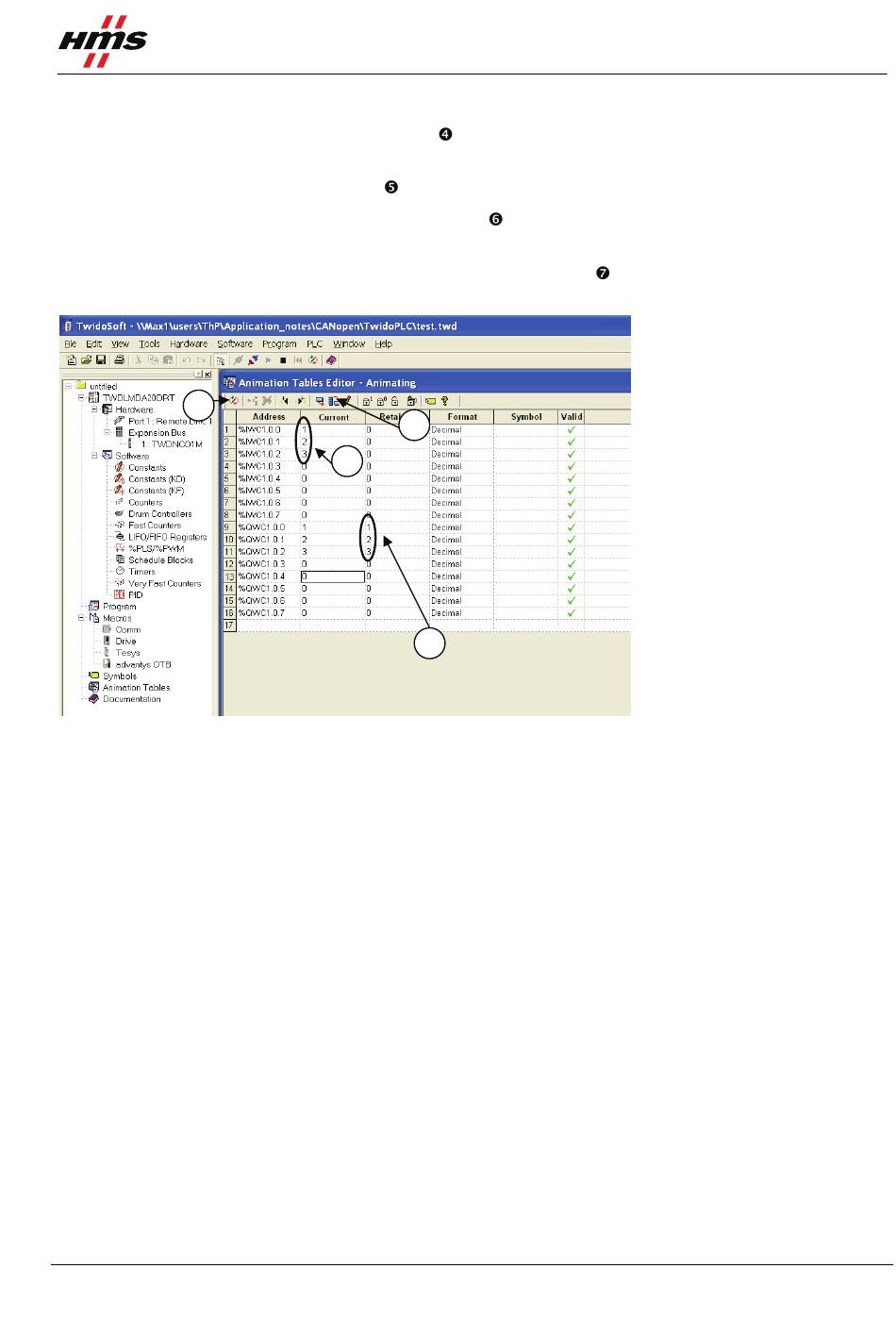

5 Press the Toggle Animation button
6 After that press the Write Retained Values button
respective object mapped in the TPDO of the PLC according to the CANopen configuration.
7 The data is looped at the Anybus Communicator and the RPDO
simultaneously.
5
Figure 30 Monitoring the input and output data.
