Right click on the produce and consume transaction respectively and select add data. In this case 20 bytes of
data is used.

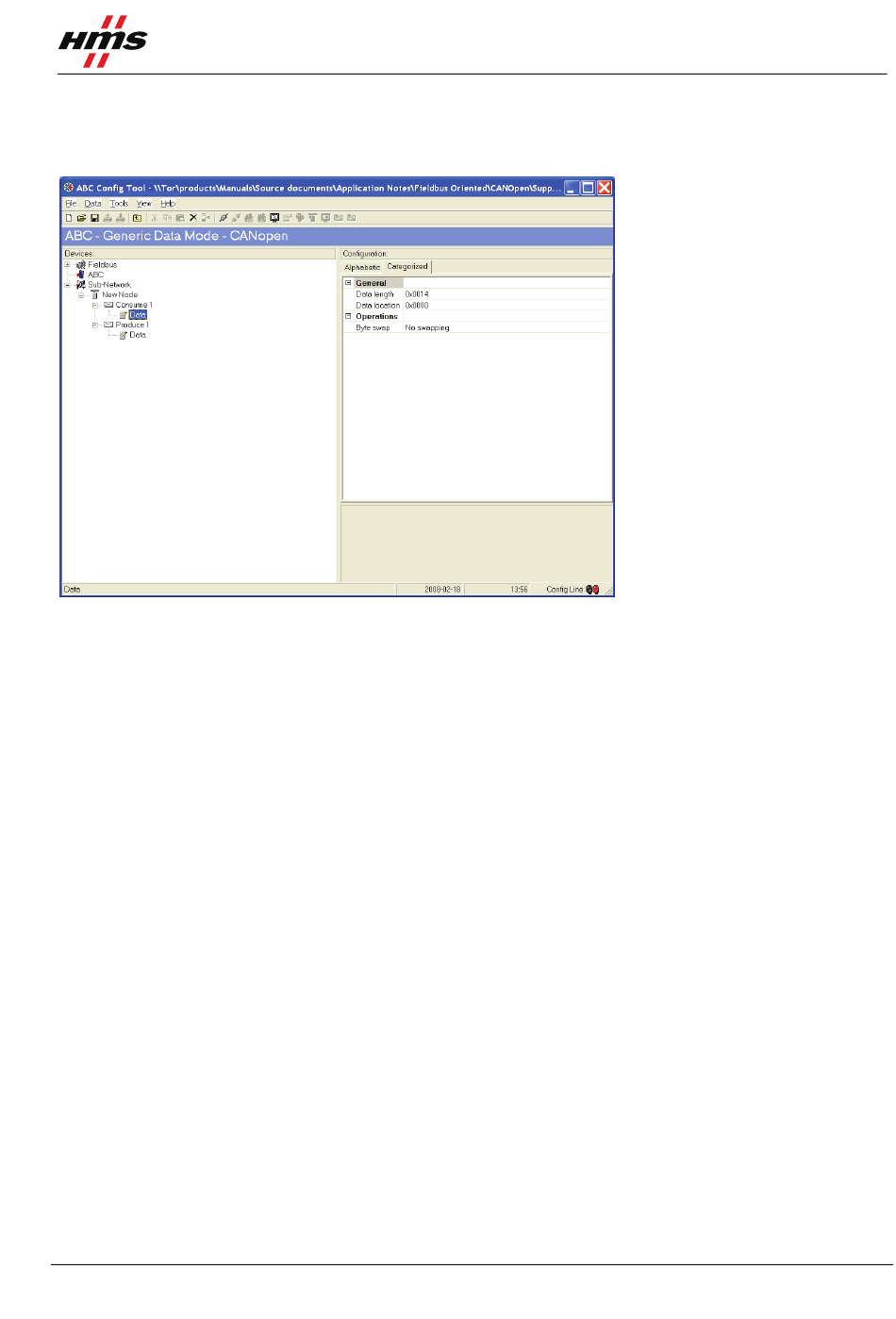

Figure 9 Configuring the consume data.
The next step is to save the configuration. Then connect to the Communicator and download the
configuration to the module.
