FITTING GUIDE
Appliance
Housing
HEIGHT: 34 "
1/2
WIDTH: 24" - 30"
DEPTH: 24" - 25"
Sample Cabinet Shown
For Internal Use: FI.PK.FIT.004_50-WKIN00004_AppHousing_Rev3.indd
FI.PK.FIT.004
(B) x22 "Screws
5/8
(G) x2 "Screws
13/16
Screws for attaching to walls and worktop are not provided as these vary depending on
materials, thickness and construction. Ensure appropriate fixings for wall and worktop
construction are used. Please refer to the specialist worktop supplier if these are
required for solid surface worktops.
K
B B
Top Filler
Bottom Filler
(H) x4 1 " Screws (R) x2 Dummy Fixing Clip
1/4
(K) x2 L Bracket Large

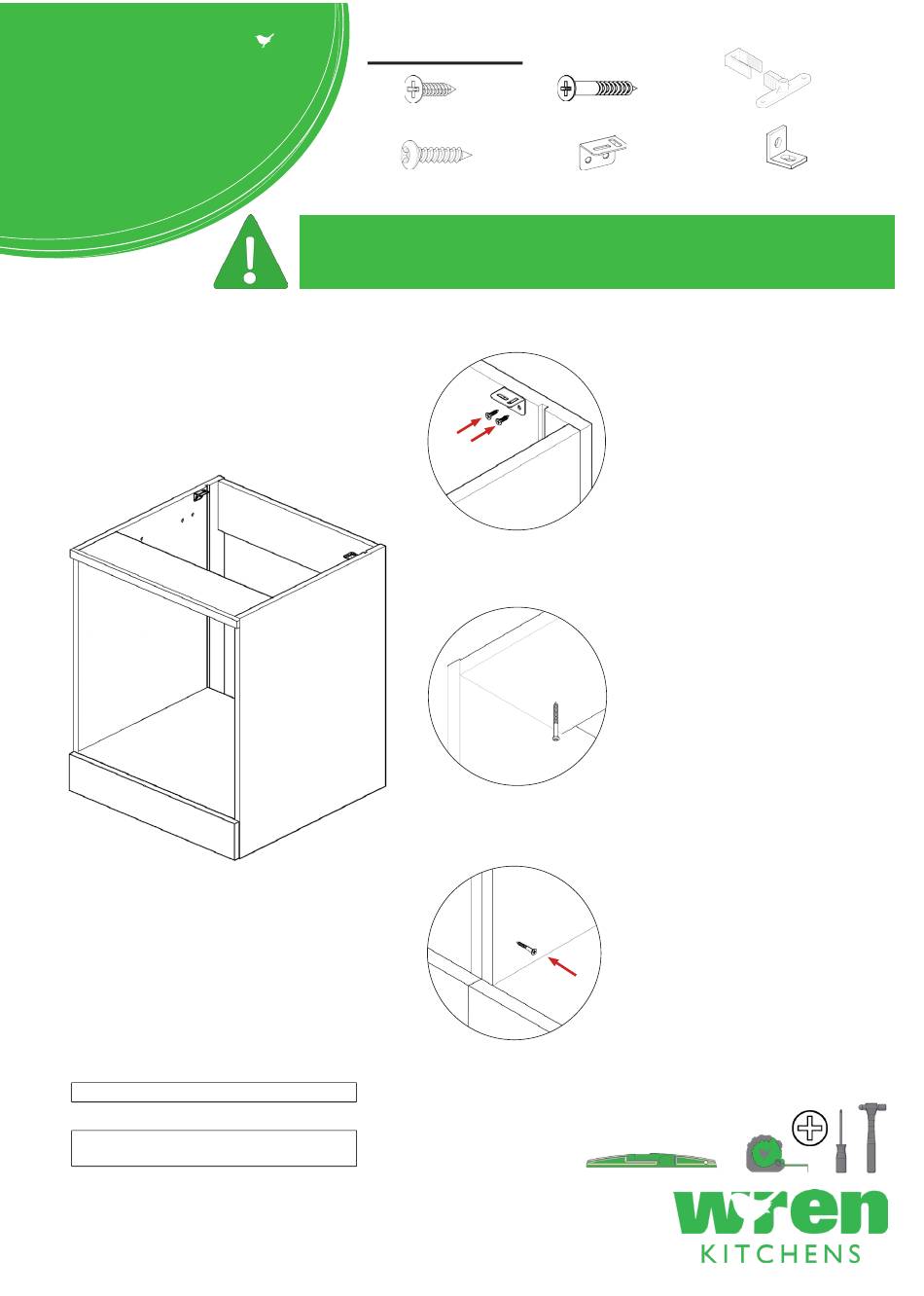

Step 1.
Use 2 x " screws (B) to secure each
5/8
of the L brackets LGE (K) to the
cabinets at either side.
Then screw up through into the
worktop as shown.
Step 2.
Screw up through the front rail into
your worktop to secure it in place, then
also through the back rail into your
wall. Screws for attaching to the
wall are not supplied as these vary
depending on your wall material and
construction. Ensure appropriate
fixings for wall construction are
used.
Step 3.
Screw into any adjacent cabinets
using 1 " screws (H) provided to
1/4
secure the cabinet. Screw at the top
and bottom of the left and right
H
sides of the cabinet. Place a cover
cap on the head to conceal it.
(J) x2 L Bracket Small
