FITTING GUIDE
Appliance
Housing
HEIGHT: 34 1/2"
WIDTH: 24" - 30"
DEPTH: 24" - 25"
Sample Cabinet Shown
Page 1
FI.PK.FIT.004
(B) x22 5/8" Screws
(G) x2 3/4" Screws
Screws for attaching to walls and countertop are not provided as these vary depending
on materials, thickness and construction. Ensure appropriate fixings for wall and coun-
tertop construction are used. Please refer to the specialist countertop supplier if these
are required for solid surface countertops.
B B
Top Filler
Bottom Filler
For Internal Use: FI.PK.FIT.004_50-WKIN00004_AppHousing_Rev5.indd
(H) x4 1 1/4" Screws
(K) x2 L Bracket Large
K

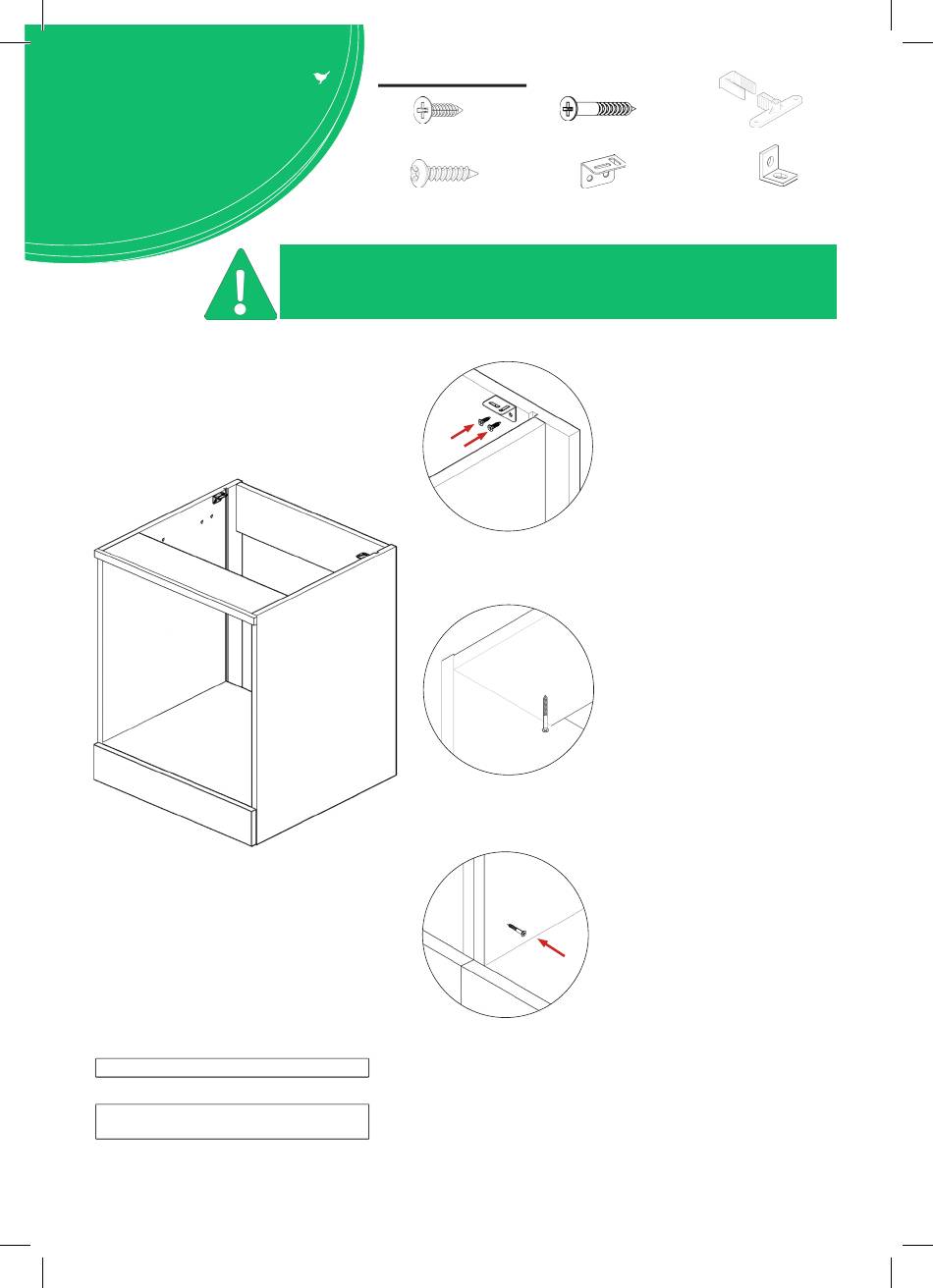

Step 1.
Use 2 x 5/8" screws (B) to secure each
of the L brackets LGE (K) to the
cabinets at either side.
Then screw up through into the
countertop as shown.
Step 2.
Screw up through the front rail into
your countertop to secure it in place,
then also through the back rail into
your wall. Screws for attaching
to the wall are not supplied as
these vary depending on your wall
material and construction. Ensure
appropriate fixings for wall
construction are used.
Step 3.
Screw into any adjacent cabinets
using 1 1/4" screws (H) provided to
secure the cabinet. Screw at the top
and bottom of the left and right
H
sides of the cabinet. Place a cover
cap on the head to conceal it.
(R) x2 Dummy Fixing Clip
(J) x2 L Bracket Small
