FITTING GUIDE
L CORNER BASE
CABINET
Screws for attaching to walls and countertop are not provided as these vary depending on materials,
thickness and construction. Ensure appropriate fixings for wall and countertop construction are used.
Please refer to the specialist countertop supplier if these are required for solid surface countertops.

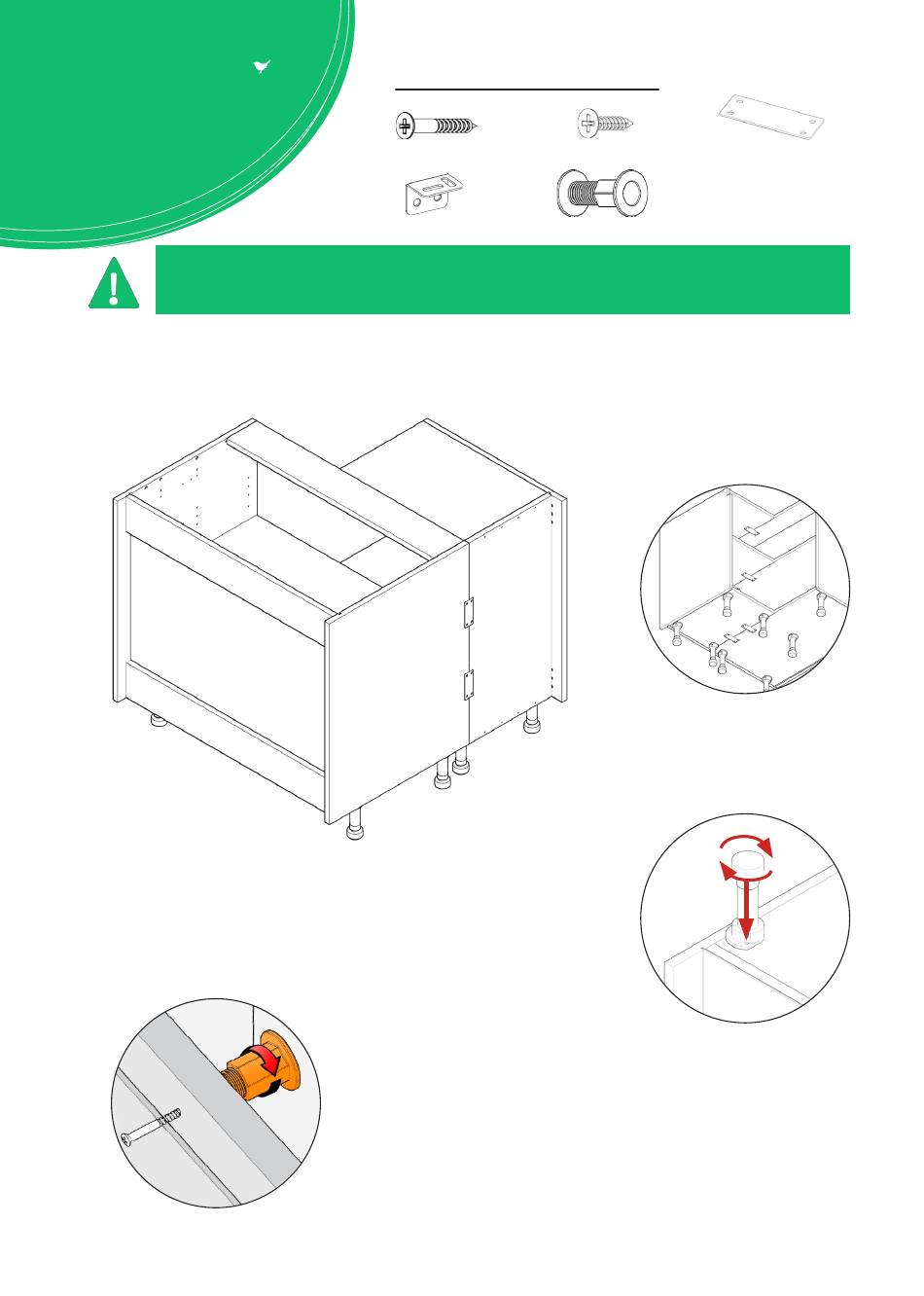

Step 1.
Attach Fixing Plates (Ff) onto cabinets in 3 positions (1), (2), (3) as shown
using 4 x 5/8" screws (B) per plate. Be careful not to interfere with leg
Step 2.
Secure each of the legs into place with 2 x 5/8" screws (B). Ensure legs
are rotated as shown so that part of them is supporting the end panel.
Page 1
FI.PK.FIT.014 - BASE 2 MILANO
(H) x8 1 1/4" Screws
(K) x3 L Bracket - Large
Ff
(3)
Ff
Sample cabinet shown
View from rear of cabinet
Step 3.
Secure cabinet to the wall using XL Space-Plugs (V).
Use a stud finder to locate the studs on the wall, drill pilot holes through the back brace
of the cabinet into the wall at the stud locations. Unwind the XL Space-Plugs (V) until
they contact both surfaces, insert and tighten an appropriately sized screw through the
back of the cabinet and the XL Space-Plug (V) into the wall. (Use appropriate fixing for
wall construction where a stud is not available)
For Internal Use:CON_INS_002.001_50-WKIN0008_BASE2_MILANO_LCNR_Rev5
(B) x82 5/8" Screws (Ff) x10 Fixing Plate
(V) x3 XL Space-Plug
Ff
View from underside
B
Ff
(1)
Ff
Ff
(2)
