ADJUSTABLE
CORNER
BASE CABINET
MILANO
Fitting
Guide
Adjustable Corner
Cabinet
(Cabinet A)
B
Page 1
FI.PK.FIT.015 - BASE 3 MILANO
(H) x16 1
" Screws (B) x34
1/4
Screws for attaching to walls and countertop are not provided as these vary
depending on materials, thickness and construction. Ensure appropriate fixings for
wall and countertop construction are used. Please refer to the specialist countertop
supplier if these are required for solid surface countertops.
Packer 1
Adjustable
Corner post
part 1

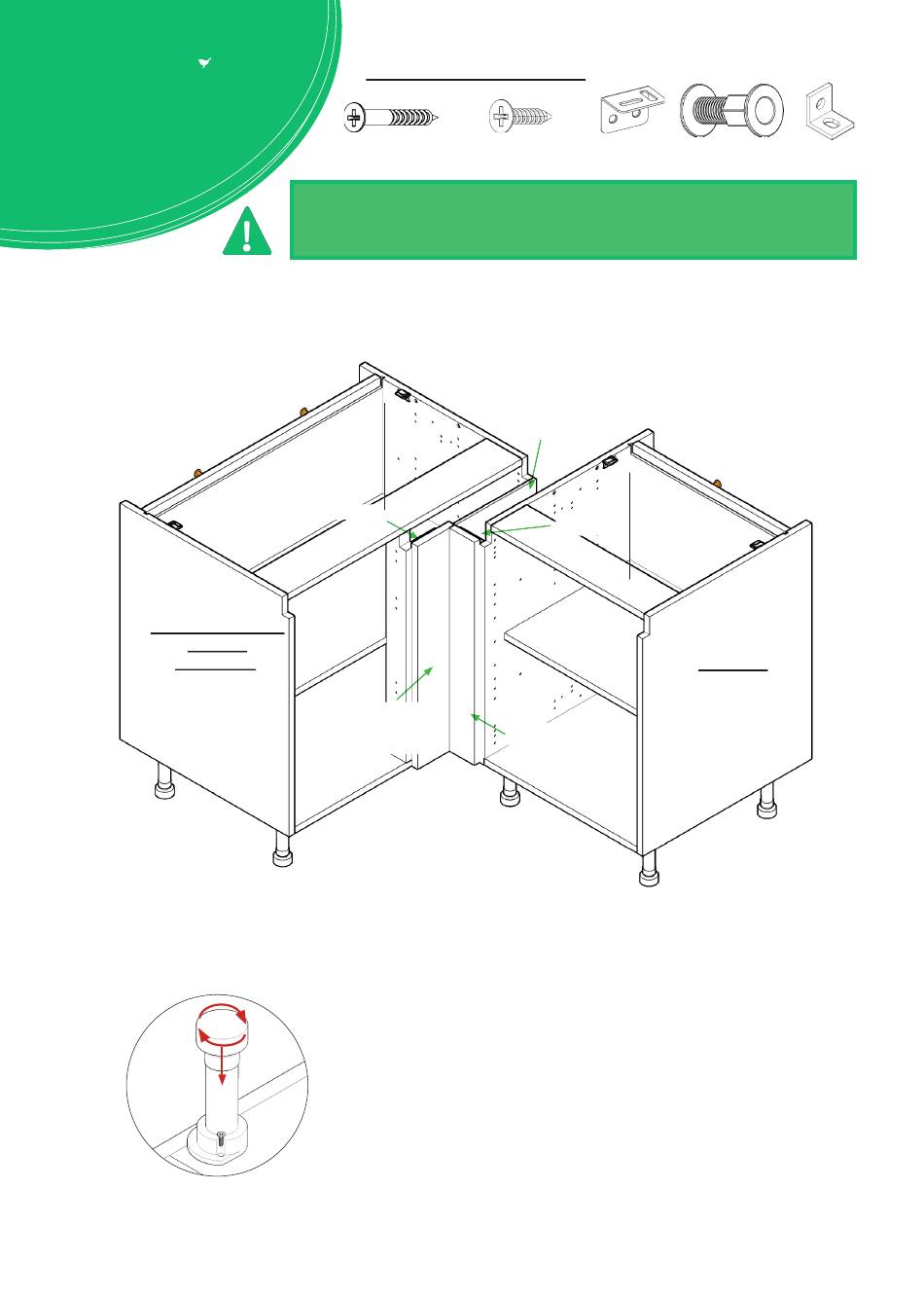

Step 1.
Secure each leg into place with
"
2 x
screws (B). Ensure legs are
5/8
rotated as shown so that part is
supporting the end panel.
For Internal Use:FI.PK.FIT.015_50-WKIN00019_MILANO_BASE3_ADJ_CNR_FITTING_Guide_Rev1
" Screws (K) x2 L Bracket -
5/8
Large
Blanking
panel
Packer 2
Adjustable
corner post
part 2
(V) x2 XL
(J) x2 L Bracket -
Space-Plug
Small
Cabinet B
Advertisement
Table of Contents
Related Manuals for Wren Kitchens BASE 3 MILANO
Summary of Contents for Wren Kitchens BASE 3 MILANO
- Page 1 ADJUSTABLE FI.PK.FIT.015 - BASE 3 MILANO CORNER BASE CABINET MILANO (H) x16 1 ” Screws (B) x34 ” Screws (K) x2 L Bracket - (V) x2 XL (J) x2 L Bracket - Large Space-Plug Small Fitting Screws for attaching to walls and countertop are not provided as these vary Guide depending on materials, thickness and construction.
- Page 2 ADJUSTABLE CORNER BASE CABINET MILANO Fitting Blanking Guide panel Step 2. Cut Blanking panel to required width and height (refer to customer specific plan) and attach to cabinet face as shown. Step 3. Press packer 1 tightly against the muntin post and screw through the bottom of the cabinet using 2 x 1 1/4”...
- Page 3 ADJUSTABLE Step 6. CORNER Secure cabinet to the wall using XL Space- Plugs (V). BASE CABINET Use a stud finder to locate the studs on MILANO the wall, drill pilot holes through the back brace of the cabinet into the wall at the Fitting stud locations.
- Page 4 ADJUSTABLE CORNER BASE CABINET MILANO Fitting Guide Packer 1 Packer 2 Adjustable Adjustable Corner post corner post Cabinet A part 1 part 2 / 1 6 ” Blanking w i d panel Step 10. Attach adjustable corner post to cabinet A, by screwing through packer 1 at four locations, using 4 x 1 1/4”...
