Wren Kitchens FRONTALS Replacement Manual

Drawer frontal
Hide thumbs

Advertisement

Quick Links

Download this manual
FRONTALS

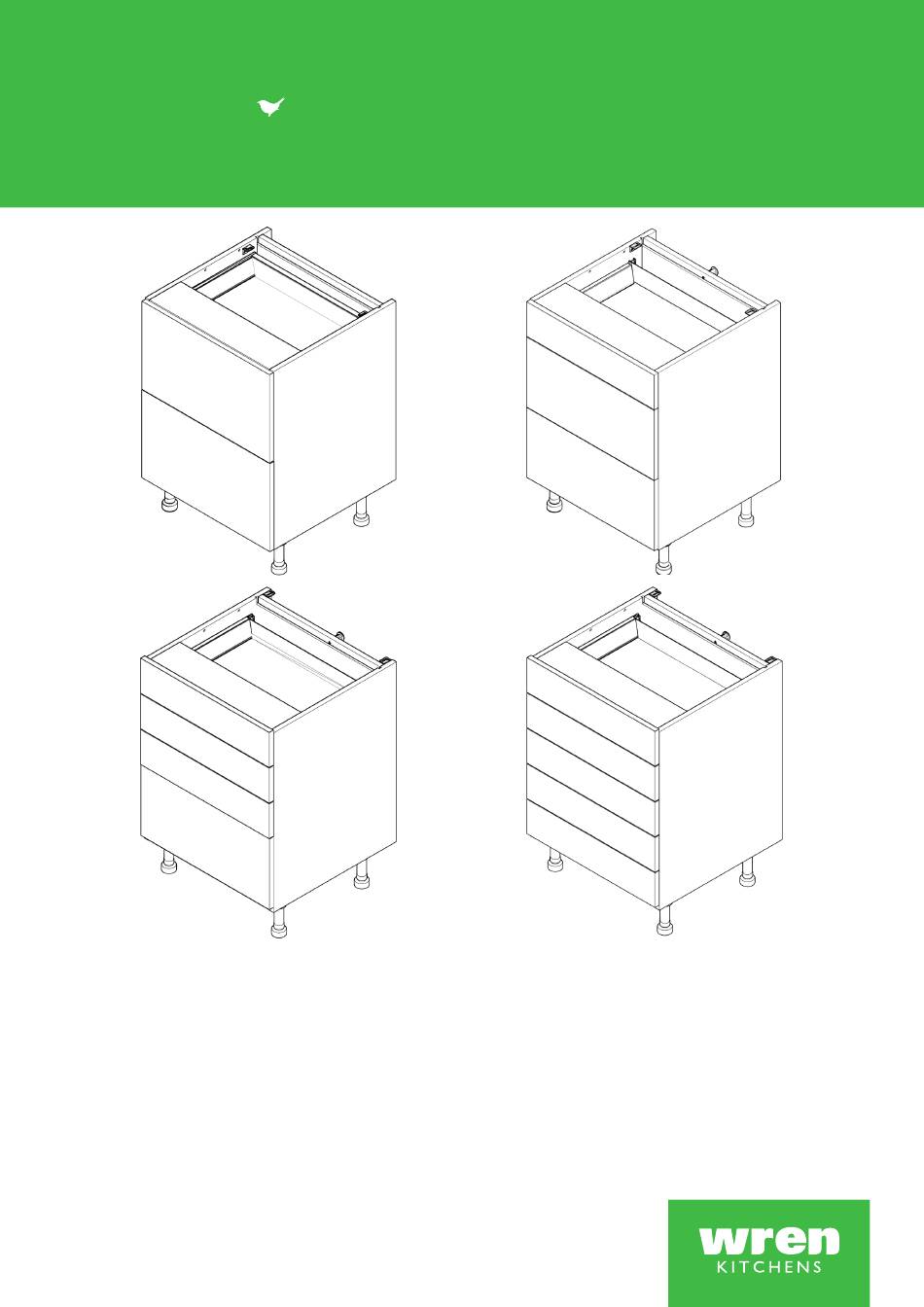

Drawer Frontal Replacement Guide
Pg 1.
Grass Drawer Box Removal
Pg 2.
Grass Drawer Box Insertion
Pg 3.
Grass Standard Drawer
Pg 4.
Grass Deep Drawer
Pg 5-6.
Grass Glass Drawer
Pg 7.
TM Drawer Box Removal
Pg 8.
TM Drawer Insertion
Pg 9.
TM Standard Drawer
Pg 10.
TM Mid Drawer
Pg 11.
TM Deep Drawer
Pg 12.
TM Mid Glass Drawer
Pg 13.
TM Deep Glass Drawer
Pg 14.
TM Drawer Side Cover Cap
For Internal Use: FI.WR.INS.076_WKIN0066_Drawer_ReplaceFRTL_Rev6
