Table A-1. RabbitCore RCM3100 Specifications (continued)
Feature
Operating Temperature
Humidity
Connectors (for connection to
headers J4 and J5)
Board Size
A.1.1 Exclusion Zone
It is recommended that you allow for an "exclusion zone" of 0.04" (1 mm) around the
RCM3100 in all directions when the RCM3100 is incorporated into an assembly that
includes other printed circuit boards. This "exclusion zone" that you keep free of other
components and boards will allow for sufficient air flow, and will help to minimize any
electrical or electromagnetic interference between adjacent boards. An "exclusion zone"
of 0.08" (2 mm) is recommended below the RCM3100 when the RCM3100 is plugged
into another assembly using the shortest connectors for headers J1 and J2. Figure A-2
shows this "exclusion zone."
0.04
(1)
36
RCM3100
5% to 95%, noncondensing
(47 mm × 42 mm × 14 mm)
1.650
(41.9)
0.04
(1)
J2 J1
1.850
(47.0)

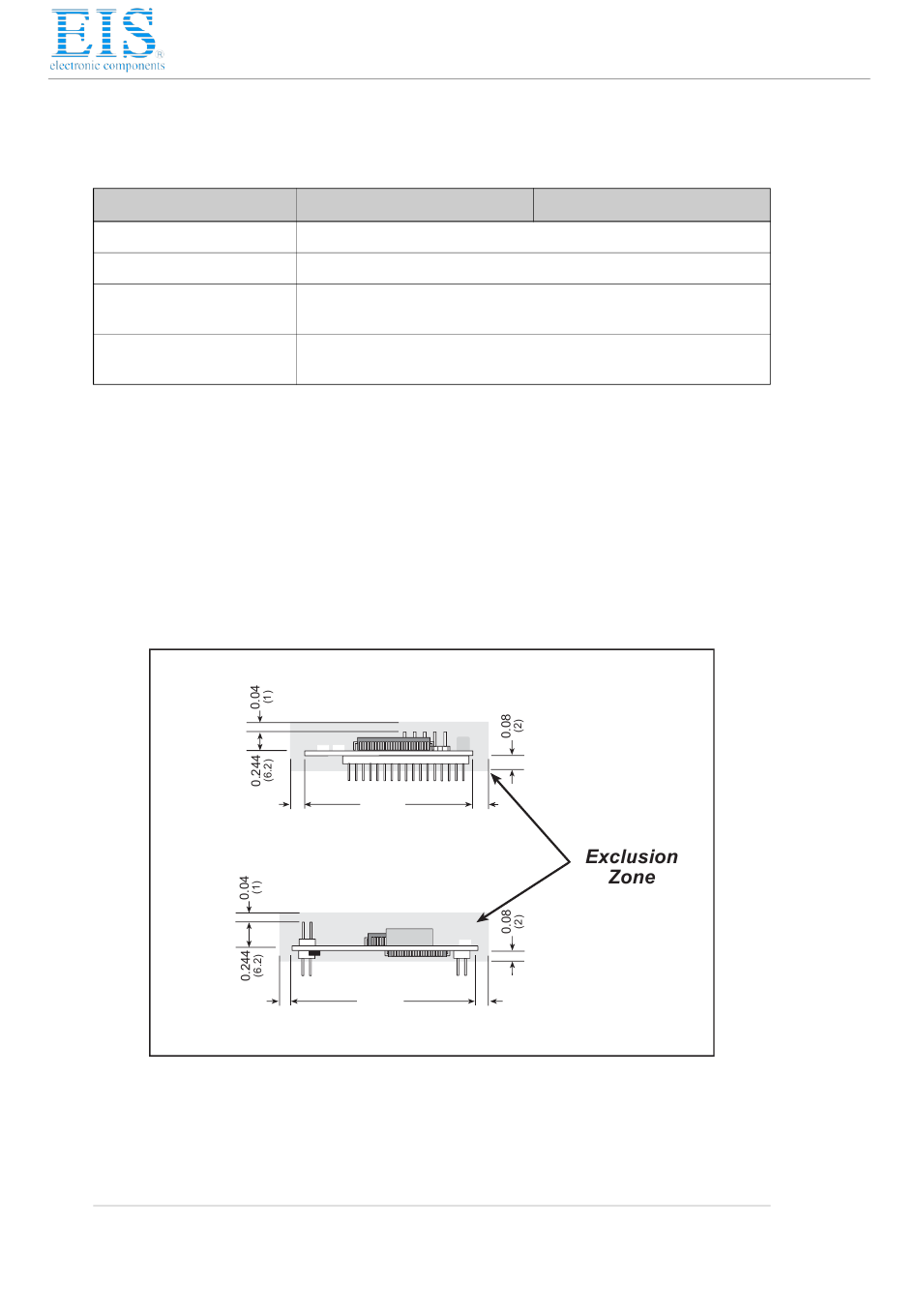

Figure A-2. RCM3100 "Exclusion Zone"
RCM3110
–40°C to +85°C
Two 2 ×17, 2 mm pitch
1.850" × 1.650" × 0.55"
0.04
(1)
0.04
(1)
