Step 3:

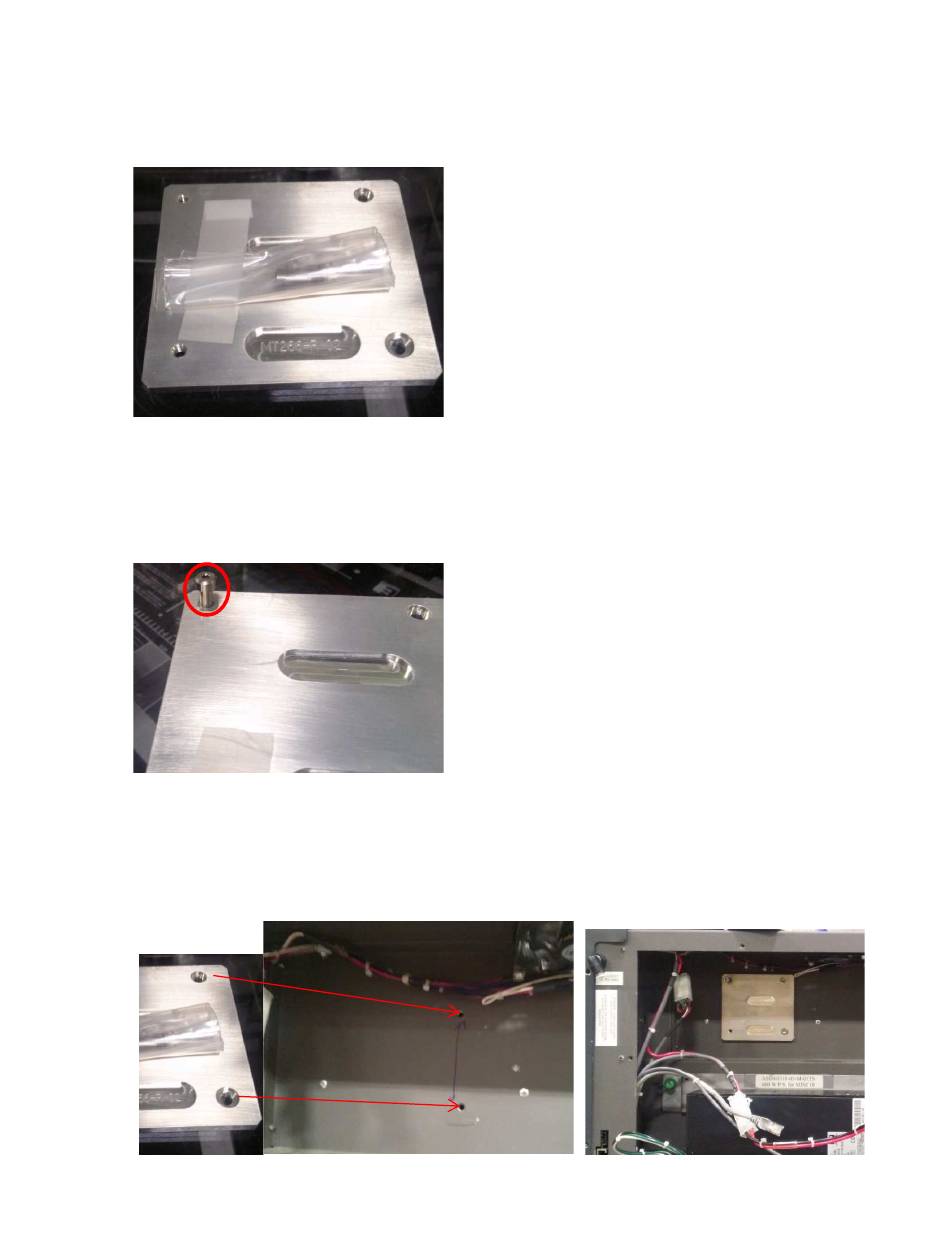

Locate the MT266 adapter bracket that came with the upgrade kit.
Step 4:
Install the new Shoulder Screw and washer (that came packaged with the
MT266) into the top left hand corner of the MT266 Adapter Bracket.
Step 5:
Align the two screw holes on the right hand side of the adapter bracket, with the
screw holes on the engraver. Fasten with the provided screws.
