Procedure A: Removing the Old Laser Tube

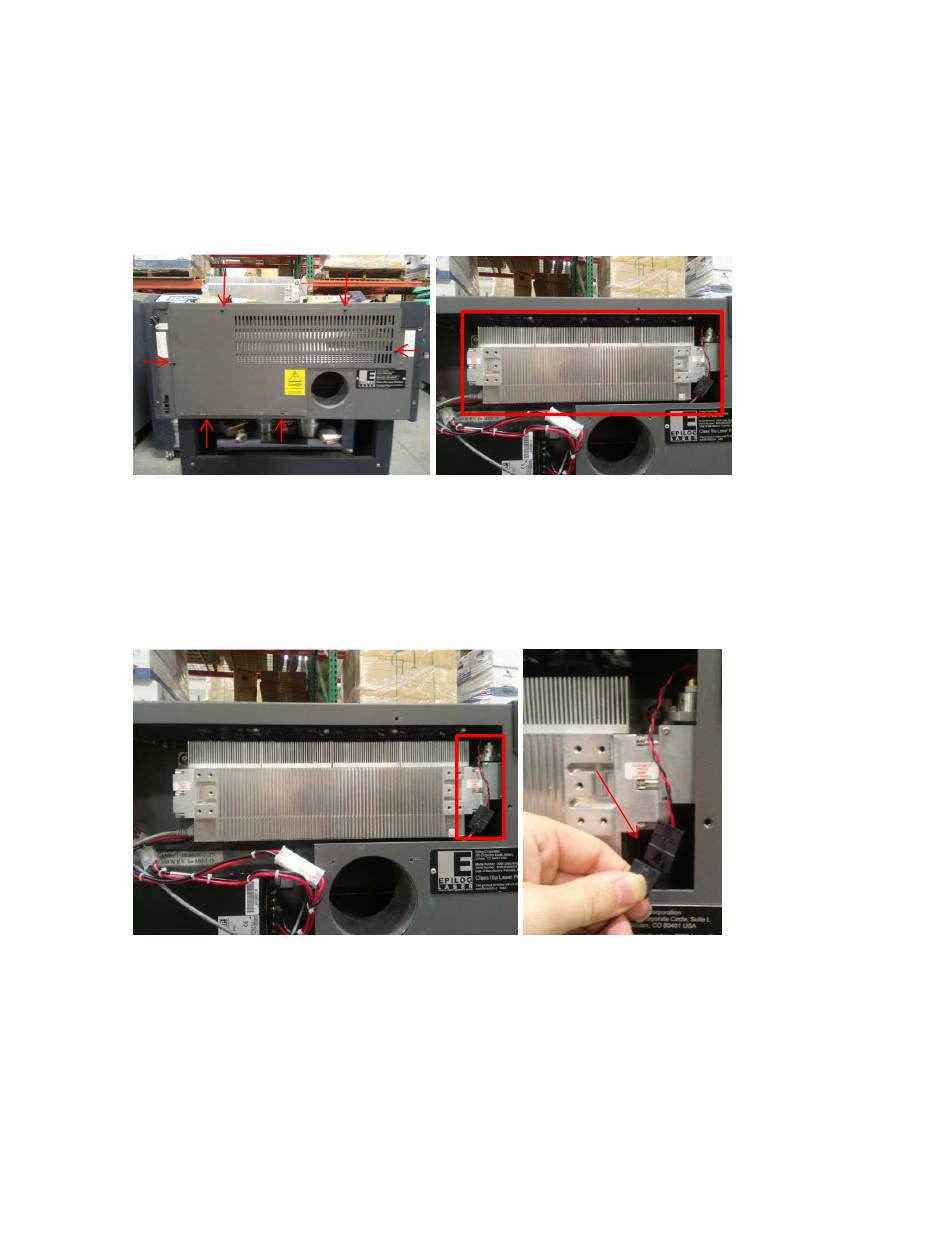

Step 1:
Be sure that the engraver is powered off and unplugged. Remove the rear panel
of the engraver to expose the laser tube.
Step 2:
Disconnect the Red Dot Pointer which is located on the right side of the laser
tube. Follow the thin Red and White wires to the Black Connector. Unplug the
connector.
