Step 1:

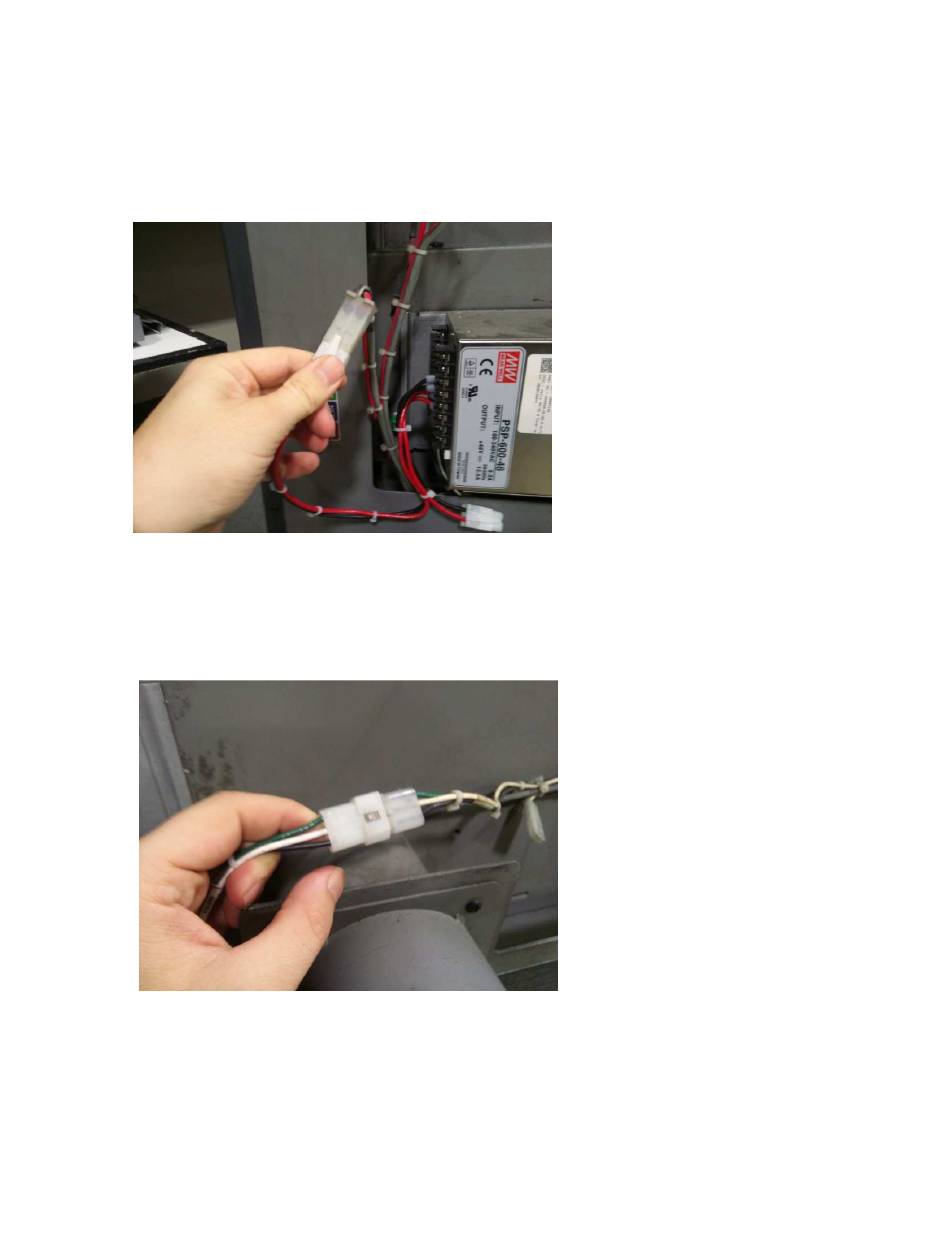

Disconnect PSU output from the engraver. First follow the Red and Black wires
from the PSU until you reach a white connector. Disconnect the white connector. Do
this for all pairs of Red and Black wires.
Step 2:
Disconnect the PSU from the Power Receptacle. Follow the Green, White and
Black wires until you reach a white connector. Disconnect the white connector.
Epilog Laser Tube Upgrade
Mini / Helix
Revision Date: 9/27/2013
pg. 11 of 17
