Procedure E: Installing the New Laser Tube.
Step 1:

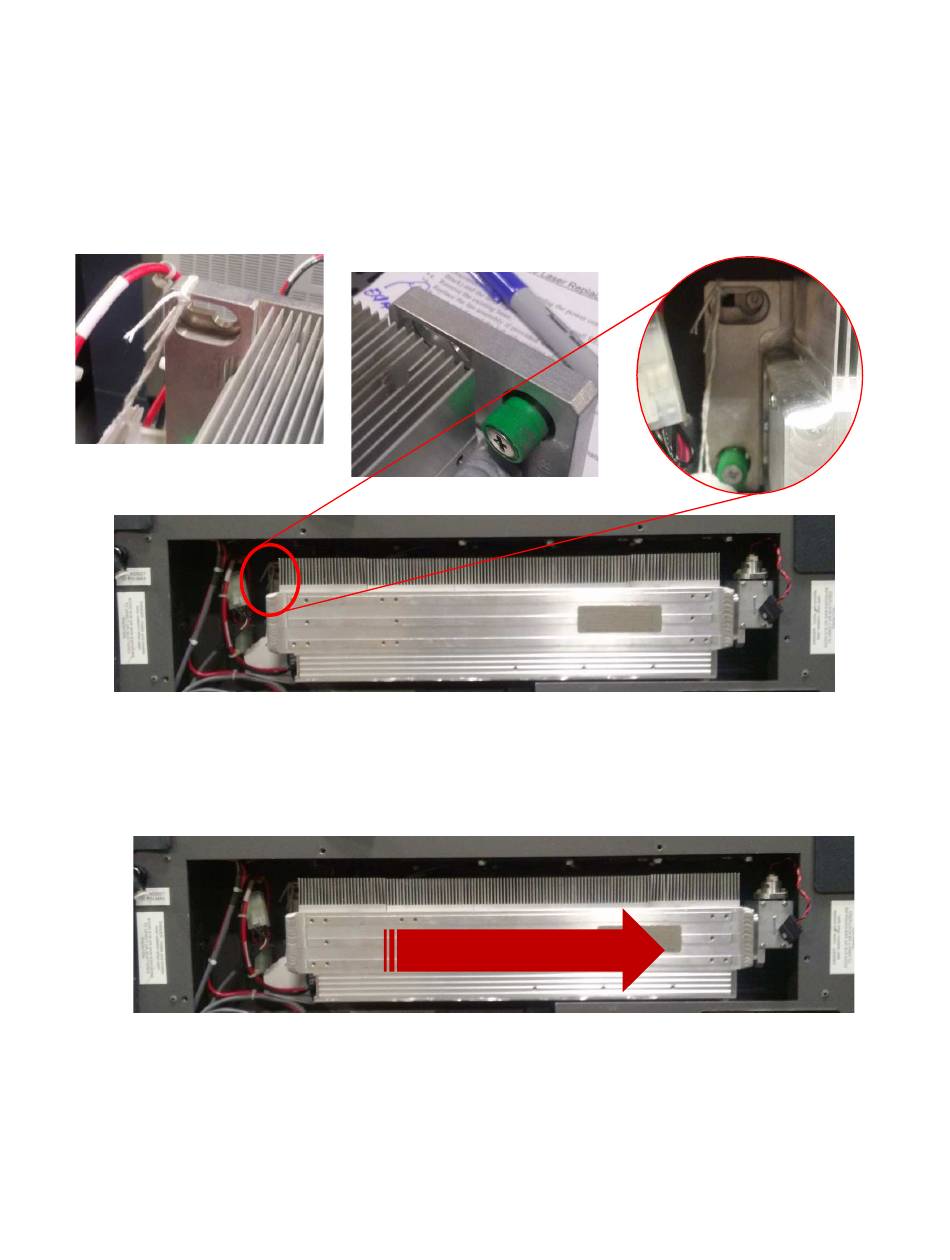

Align the slots on the mounting bracket of the laser tube, with the shoulder
screws on the chasses of the engraver. Hang the laser tube on the shoulder screws.
Step 2:
Slide the laser tube to the left. The entire unit will slide up to a half an inch
(12mm).
Epilog Laser Tube Upgrade
Mini / Helix
Revision Date: 9/27/2013
pg. 15 of 17
