Epilog Laser Helix Replacing Instructions

Replacing the x-axis assembly

Hide thumbs Also See for Helix:

EPILOG LASER

16371 Table Mountain Parkway

Golden, Colorado 80403

Phone 303-215-9171 - FAX 303-277-9669

www.epiloglaser.com

Procedure Title:

Machine Type:

This procedure details steps to removing the I-beam.

1. Unplug the power cord from the machine

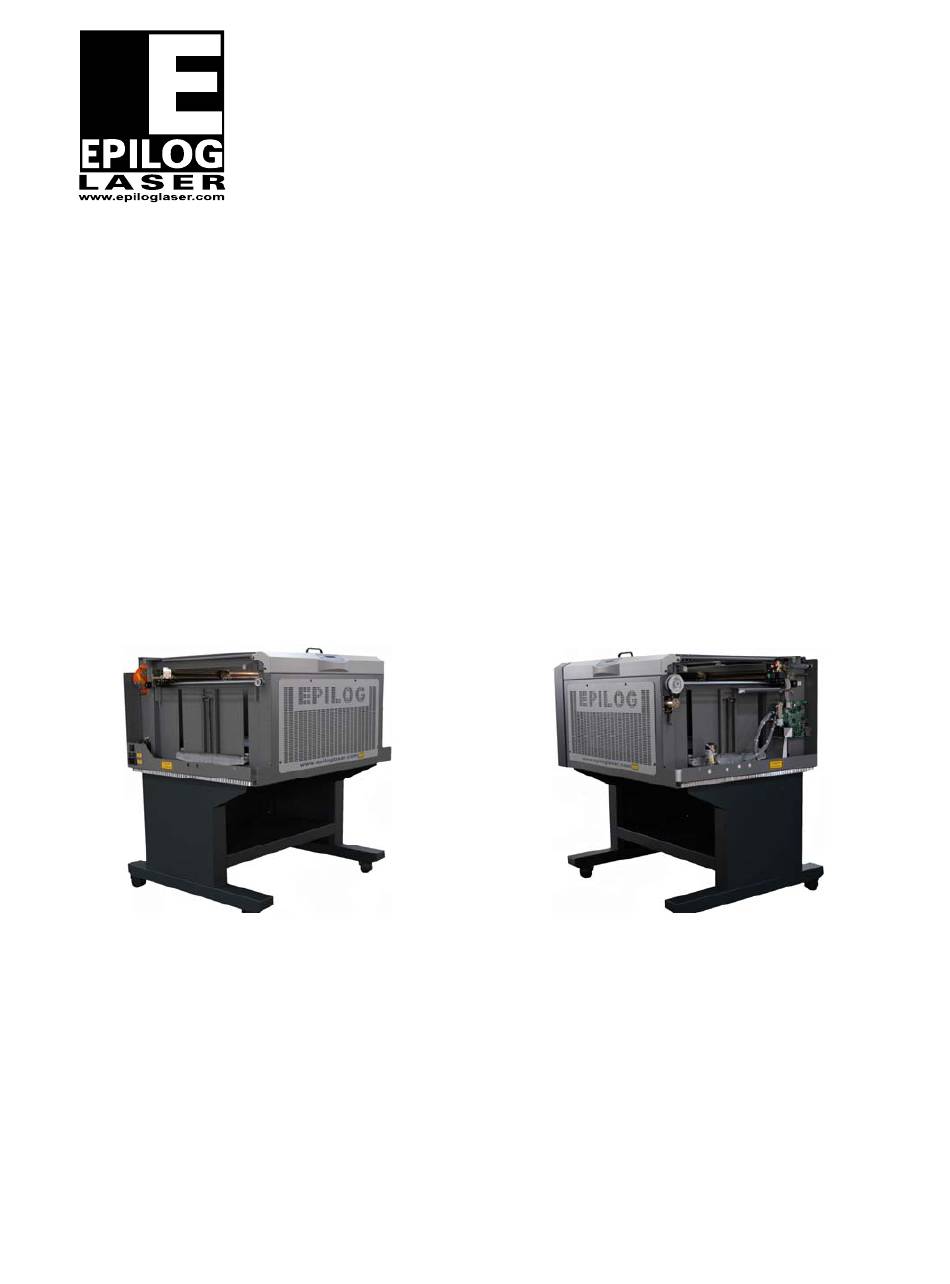

2. Remove both side panels. There are four screws on the

side and two screws on the back of the machine for

each panel.

Left Side

Replacing the X-Axis assembly

Helix

Philips head screw driver

Wire Snips

Right Side

Table of Contents

Do you have a question about the Helix and is the answer not in the manual?

Page 1 EPILOG LASER 16371 Table Mountain Parkway Golden, Colorado 80403 Phone 303-215-9171 - FAX 303-277-9669 www.epiloglaser.com Procedure Title: Replacing the X-Axis assembly Machine Type: Helix Tools Needed: Philips head screw driver Wire Snips Intro: This procedure details steps to removing the I-beam.
Page 2 3. Disconnect air intake. Push in the white ring and then pull the air hose out. 4. Cut the white electrical tie around the white ribbon cable. White Ribbon Cable Electrical tie 5. Disconnect white ribbon cable. 6. Unscrew the green captive screw on the left side of the I-beam.
Page 3 8. Lift the I-beam carefully. Use caution when lifting the right side of the I-beam. Bring the right side forward a little to ensure the motor clears the frame rail. Re-Installing the X-Axis Assembly 9. Place I-beam on the brackets, making sure to put the I-beam onto the pins.
Page 4 10. Tighten green captive screws on both sides of the I- beam. 11. Move the I-beam to the front and to the back to make sure for smooth y-axis movement. 12. Reconnect air intake 13. Reconnect white ribbon cable. 14. Replace side panels. If you have any questions, please contact Epilog’s Technical Support Phone...
