Step 7:
Install the PSU back into the engraver and secure with the green thumb screws.
Step 8:

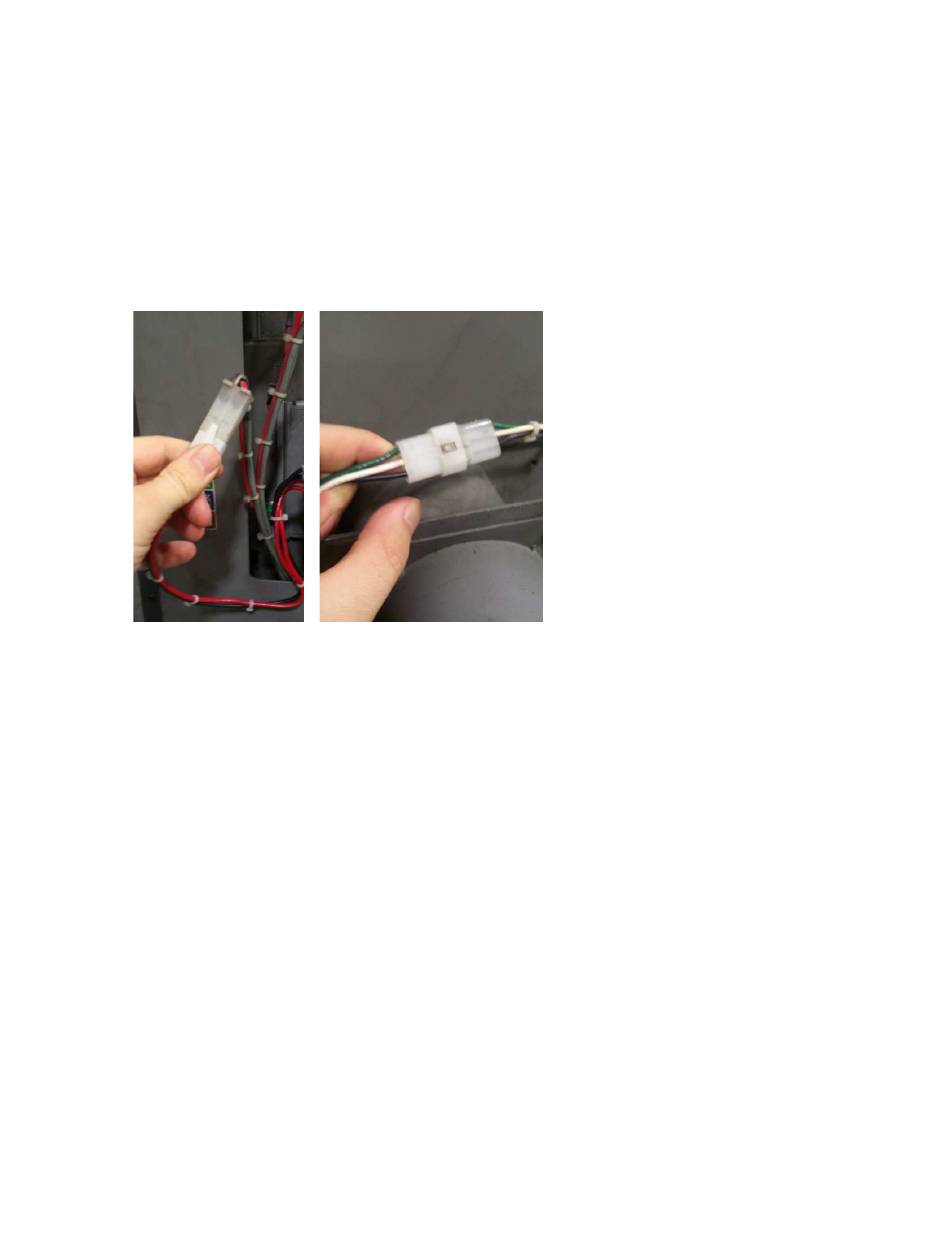

Reconnect the Red and Black wires as well as the Green, White and Black wires.
If your engraver has more than one PSU, than repeat this procedure for the second
Epilog Laser Tube Upgrade
Mini / Helix
Revision Date: 9/27/2013
supply as well.
pg. 14 of 17
