Epilog Laser Mini Manual page 8

Step 4

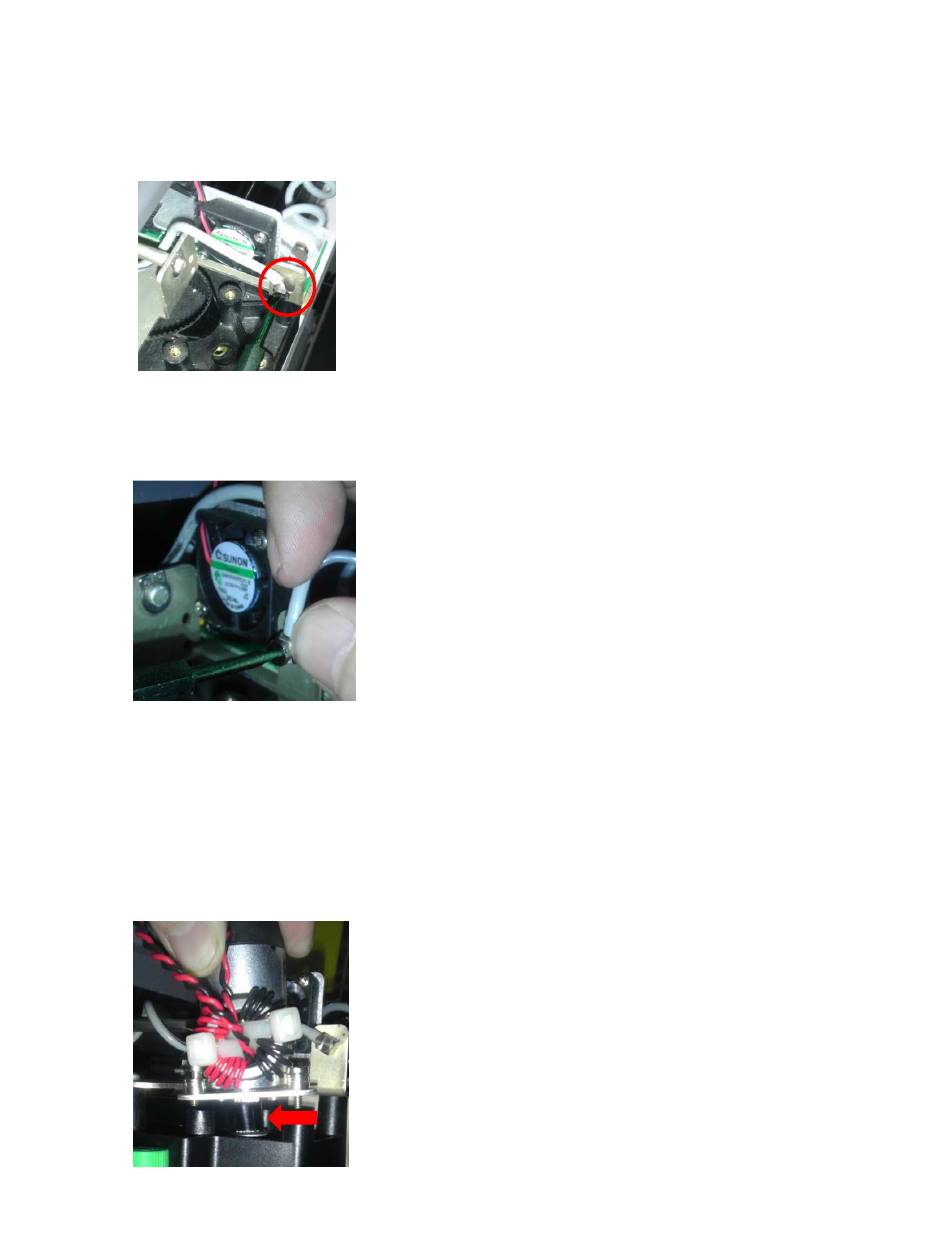

Locate the fitting for the X-Axis Air Assist Coil Tube. Using a Flat head screw driver loosen the
fitting. (Do not remove the screw.)
Step 5
Turn the fitting so that the tube goes up and over the Fan and retighten the fitting.
Step 6
Remove the fan assembly so that the motor can be remounted.
Step 7
Put the motor back in place, with your index finger, pull the belt and loop the belt around the silver
pulley.
Fan Assembly Upgrade
Mini / Helix
Revision Date: 2/21/2013 pg. 8 of 11
