Step 5

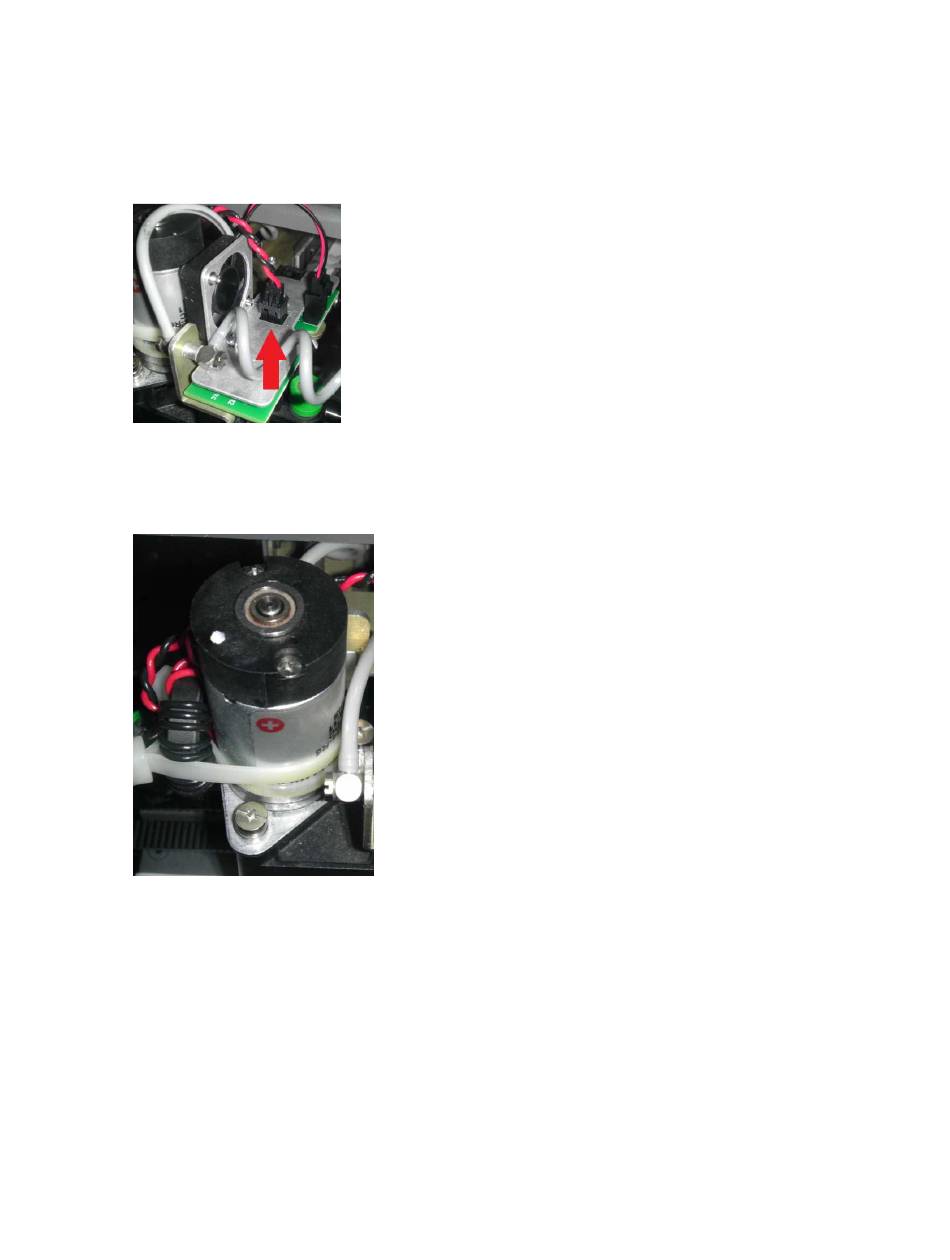

Identify the Motor Assembly on the right side of the I-Beam. Locate the motor wires (red and
Black twisted wire with a black quick disconnect at the end) and disconnect them by unplugging the black
quick disconnect which is connected to the circuit board just to the rear of the motor.
Step 6
Identify and unscrew the Captive Screws which mount the motor to the I-Beam.
NOTE: The captive screws will not release from the Motor Bracket.
Step 7
Remove the motor by pulling it straight up. You may need to angle the motor slightly so that the
belt falls from the drive pulley.
Fan Assembly Upgrade
Mini / Helix
Revision Date: 2/21/2013 pg. 3 of 11
