Epilog Laser Mini Manual page 2

Procedure A: Removing the Old Motor
Step 1
Unplug the engraver from its power source
Step 2

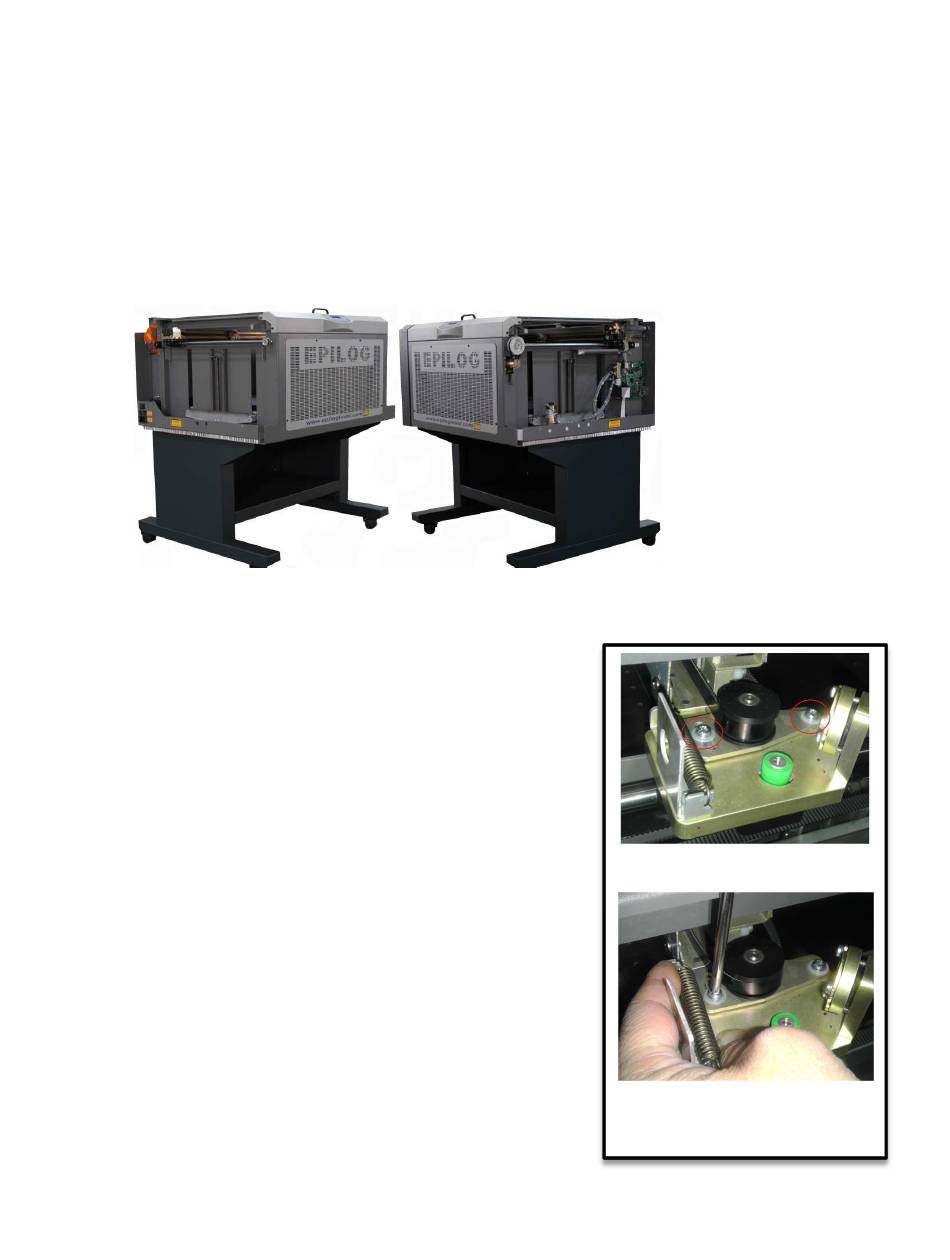

Remove both side panels.
Step 3
Remove cover on I-Beam.
Step 4
Loosen the X axis belt as follows.
1. On the left side of the I-Beam, locate the idler
pulley that the Belt wraps around. It is mounted to
a sliding plate which has two screws and a spring
attached.
2. Loosen the two Philips screws that hold the sliding
plate in place. (Do not remove the screws).
3. Push the pulley to the right hand side of the
engraver. The pulley should slide with the plate
towards the center of the machine forcing the
spring to stretch.
4. While holding the pulley to the right hand side of
the engraver, tighten the screw towards the rear of
the engraver. This will hold the pulley in place.
Fan Assembly Upgrade
Mini / Helix
Revision Date: 2/21/2013
Step 4-B
Step 4-C & 4-D
pg. 2 of 11
