17. While standing in front of the engraver, grasp the Mirror mount, No knurled edge, with your
index finger and your thumb. Turn the knurled portion of the mirror support toward you.
Note, because you are standing essentially behind the mirror, the removal of the mirror on
the threads may appear reversed.
18. The threads on the mirror support are about ¼ inch long. Turn the mirror support until the
mirror comes off in your hand.
19. Remove one of the mounted replacement mirrors from the package and install on the mirror
mount.
20. Locate the alignment target that was provided in your replacement optics kit, and place it in
the lens carriage.
21. Invoke the Red Dot pointer by depressing the "Pointer" button on the display panel.
22. On the control panel, depress the "X-Y Off" button.
23. Depress Go to disable the Axis. The carriage should now move freely around the table.
NOTE: The Red Dot pointer on the Fiber Laser is quiet large, roughly 3/8 of an inch when it is
projected on to the surface of the target.
24. Move the lens carriage to the far right hand side of the engraver. If the Red Dot image is on
the target, using the adjustment screws on the back of the mirror mount, move the red dot in
to the center of the target.

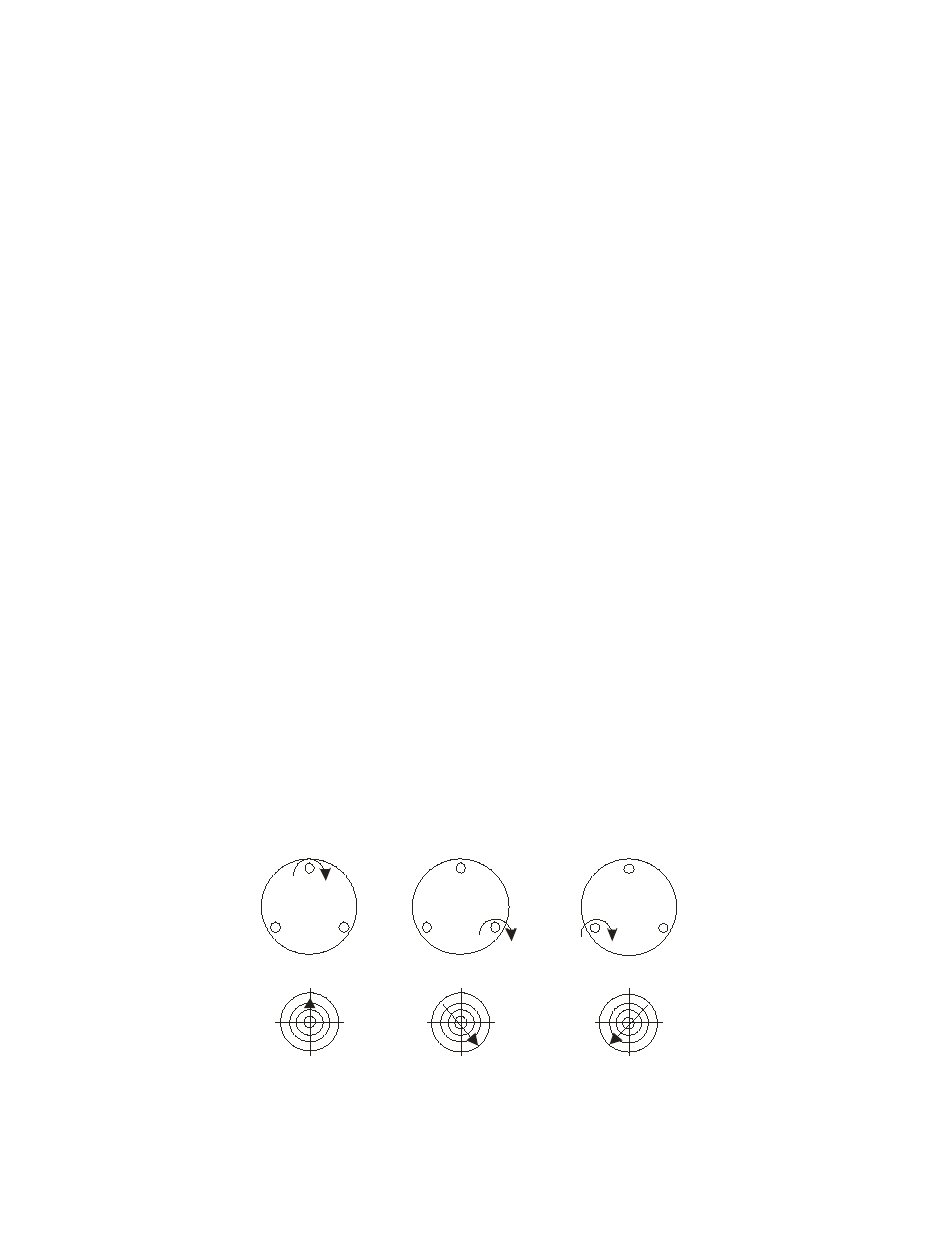

Carriage Mirror (Mirror 2) Adjustment Diagram:
The diagram below illustrates the direction the Red Dot can be expected to move when the
indicated mirror adjustment screw is turned.
Top Allen Lower right
screw turned Allen screw
clockwise turned clockwise
Diagram 1
Lower left
Allen screw
turned clockwise
