Summary of Contents for Modena Conesso Series

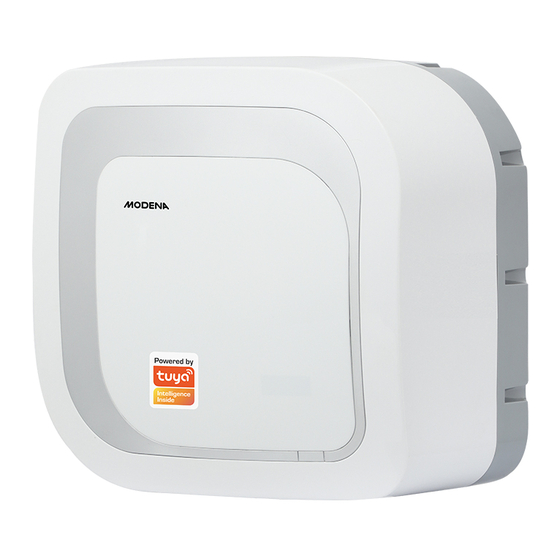

- Page 1 User Manual Book Electric Storage Water Heater Conesso Series ES 15 SKY, ES 30 SKY...
-
Page 2: Table Of Contents
Button Function Part 3: Installation Installation Instruction Plumbing Connection Electrical Connection Part 4: How to Use Operation Guideline Modena Smart Application Configuration Resetting the Factory Default Setting Part 5: Maintenance General Instruction Tank Cleaning Safety Valve Cleaning Magnesium Anode Heating Element... -
Page 3: Part 1: Important Safety Information
• If the power cord is damaged, it must be replaced by the manufacturer or qualified technicians to avoid hazard. Contact MODENA Customer Care for repair. • The pressure relief valve must be operated and checked regularly to remove limestone deposits and to ensure that it is not blocked. -
Page 4: Part 2: Name Of Parts
PART 2: NAME OF PARTS Product Structure Power Cord Cover for Maintenance Control Panel + Display Hot Water Outlet Cold Water Inlet Control Panel and Display Set Temperature /Actual Temperature Error Code Display Zone Time Display Zone Function Icons Display Zone Heating Status Display Zone Function Buttons Zone Button Function... -
Page 5: Part 3: Installation
(see the picture below), and then install the appliance. MODENA is not responsible for any improper installation and incorrect operation of this appliance due to the failure of user in following the instructions in this manual book. -
Page 6: Plumbing Connection
Plumbing Connection All piping parts should use G1/2” standard. Wind some white sealing tape to the thread sector of the inlet pipe (marked with blue). Install the safety valve to the inlet pipe and then connect it to the cold water pipe supply line. -
Page 7: Electrical Connection
Hot Water Safety Valve/Pressure Relief Valve Outlet Shower Triple Pipe Connection Water Inlet Pipe Basin/ Mixing Cold Water Inlet/Supply Water-pool Valve Drainage Pipe Electrical Connection • Electrical connection must be done by a qualified technician. • Electrical (power) supply is connected directly to the connector grounding provided with the connection. -
Page 8: Part 4: How To Use
PART 4: HOW TO USE • Check all the plumbing (piping) connections to early detect leakage before turning on this electric storage water heater. • Make sure that the tank has been fully filled up with water; otherwise it can cause the heating elements to be damaged. •... -
Page 9: Modena Smart Application Configuration
Modena Smart Application Configuration A. EZ Mode Modena Smart Install application on the smart-phone 2. Connect the smart-phone with Wi-Fi network. Modena Smart 3. Open the installed application 4. Follow the registration steps instructed by the application. 5. Turn on the water heater; turn it off after 10s, and then turn it standby on again (restart). -
Page 10: Resetting The Factory Default Setting
6. Click ''Go to connect'' to enter to the Wi-Fi-choosing pages in smart phone. 7. Select ''SmartLife'' hotspot and connect. 8. The application will do pairing with the device, wait until the process 100% finish. 9. After ''Device added successfully” notification appears, click ''Done'', and the application is ready to use. - Page 11 Manual Reset Button WARNING! Non-professionals technicians are not allowed to disassemble the thermal switch to reset. Please contact MODENA professionals for the appliance maintenance. Otherwise, MODENA will not take responsibility if any accident happens because of the failed maintenance procedure...
-
Page 12: Tank Cleaning
If the water has good enough quality, magnesium anode should be replaced within 2 (two) years. If the water quality is not good, magnesium anodes should be replaced 1 (one) year. To replace the magnesium anodes, contact MODENA Customer Care. Heating Element If the water contains lime (mud), the heating element cannot function properly (slow heat) because it was covered by a crust of lime (mud). -
Page 13: Part 6: Troubleshooting
Error Code E1 Temperature sensor failure – turn off the water heater immediately and contact MODENA Customer Care for the repair. Dry heating / there is no enough water in the tank – turn off the water heater immediately and contact MODENA Customer Care... -
Page 14: Part 7: Specification
PART 7: SPECIFICATION Model ES 30 SKY ES 15 SKY Type Storage (Tank) Installation Vertical Control Panel Touch Control + Remote Control + Wi-Fi Heat Source Electric Heating Tank Coating Titanium Porcelain Enamel Electric Safety (ELCB) Overpressure Safety Thermostat Double Anti-rust Magnihealth Capacity... -
Page 15: Appendix: Wiring Diagram
12/20...
