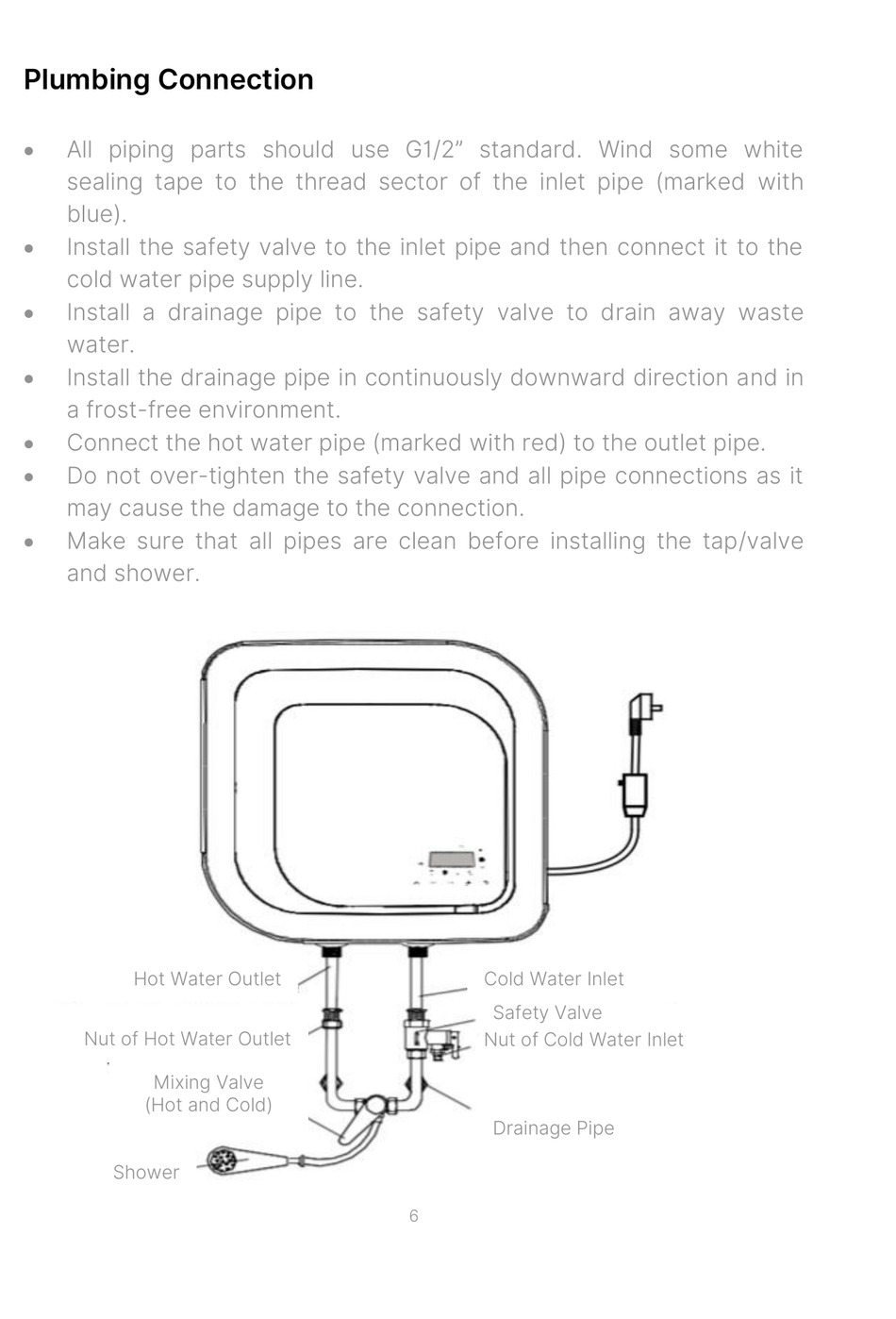

Plumbing Connection


All piping parts should use G1/2" standard. Wind some white
sealing tape to the thread sector of the inlet pipe (marked with
blue).

Install the safety valve to the inlet pipe and then connect it to the
cold water pipe supply line.

Install a drainage pipe to the safety valve to drain away waste
water.

Install the drainage pipe in continuously downward direction and in
a frost-free environment.

Connect the hot water pipe (marked with red) to the outlet pipe.

Do not over-tighten the safety valve and all pipe connections as it
may cause the damage to the connection.

Make sure that all pipes are clean before installing the tap/valve
and shower.
Hot Water Outlet
Nut of Hot Water Outlet
Mixing Valve
(Hot and Cold)
Shower
Cold Water Inlet
Safety Valve
Nut of Cold Water Inlet
Drainage Pipe
