Summary of Contents for Modena Veloce Series

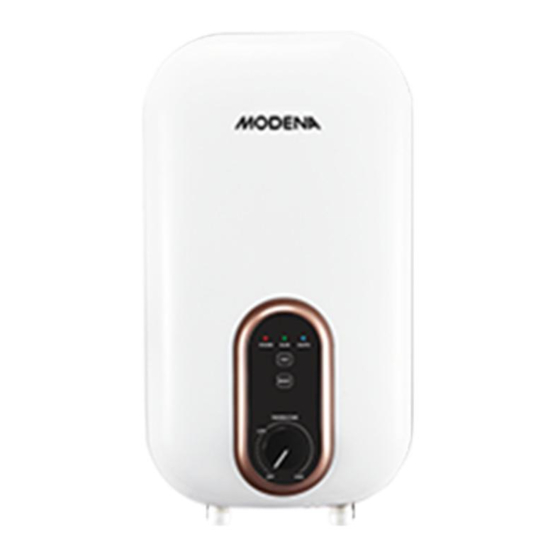

- Page 1 User Manual Book Electric Instant Water Heater Veloce Series EI 2D B, EI 2 W...
-
Page 2: Table Of Contents
Part 6: Troubleshooting Part 7: Specification Appendix: Wiring Diagram EI 2D B EI 2 W This manual book explains everything you need to know about your new product. Please contact our Customer Care should you need further assistance through www.modena.com. -
Page 3: Part 1: Important Safety Information
PART 1: IMPORTANT SAFETY INFORMATION To prevent personal injury, injury to others, and property damage, the safety instructions below must be followed. Incorrect operation due to the failure to follow the instructions will cause harm or damage. Special Caution This water heater is household-based usage, and it can be installed in every area with hot water necessity. -
Page 4: Part 2: Name Of Parts
For the safety use, please do not change the location of the water heater installation and do not block its water outlet. MODENA will not be liable for any responsibility regarding to any improper installation and incorrect operation of this appliance. -
Page 5: Part 3: Installation
EI 2 W Terminal Block Main Board Control Thermal Cut-out Tank Front Cover Ring Circlip Indicator Light Stainless Steel Board Indicator Silicon Control Light Flow Switch Button Water Outlet Water Inlet Marker (Red) Marker (Blue) Water Outlet Water Inlet Power Knob PART 3: INSTALLATION Power Cord Installation Remove the screws at the... - Page 6 2. Remove the pressing plate of Tighten the wire-pressing plate the power cord and keep the with the screws to the primary screws. position. Make sure that the power cord doesn’t come loose when it is pulled at 60N force. 3.
-
Page 7: Water Heater Installation
Water Heater Installation 1. Determine the installation position of the water heater according to the length of the power cord / the position of switch (the distance from the floor to bottom part of the appliance should be ≥1.6m). 2. Make sure the distance between the appliance and the surrounding wall is not less than 300mm, so that to have enough space for maintenance purpose. -
Page 8: Plumbing Connection
Plumbing Connection 1. The water valve that is equipped with filter should be installed at the water inlet of the appliance, and the sealing ring equipped with filter should be installed at the end of the valve. (See below Picture). 2. -
Page 9: Power Supply Connection
Power Supply Connection 1. Adjust the power controller knob to “OFF”. 2. Choose circuit breaker (such as Miniature Circuit Breaker/MCB) that is equipped with leakage protection according to the power of the water heater. 3. When connecting the water heater to the electric network, please live neutral pay attention to connect the... -
Page 10: Button Function
Display Function Functional description Icon If the “Safety Sign” is displayed normally, it means the machine is trouble-free. If the “Safety Sign” twinkling Safety Sign flicker, it means the water heater cannot be connected Ground to the firmly. Cold Water If this function icon appears, the water heater is not Mode heated. -
Page 11: Parameter Setting Mode
Parameter Setting Mode (EI 2D B Only) To activate this mode, do press the "Mode" button for 3 second, system will enter parameter setting and screen will flicker. Rotate the knob to set the temperature as desired. Re-press the "Mode" button; the parameters are set successfully. -
Page 12: Electric Leakage Protection
means the water heater has problem and cannot be used; all the buttons are invalid and heating stopped. If the “Earth” blue indicator light turns off, it means the water heater cannot be connected to the Ground firmly. Please check the grounding before use. Electricity Leakage Protection When the electricity leakage testing circuit is working normally and if the electrical leakage is bigger than certain value between 7.5mA and 15mA,... -
Page 13: Part 5: Maintenance
NOTE This water heater can only be maintained and repaired by authorized service technician of MODENA. The incorrect installation and using method may cause serious injury or loss of property. WARNING! Do cut off power supply before maintenance to avoid danger like... -
Page 14: Part 6: Troubleshooting
1. Check whether the power 1. Power supply error. “E5” and flashing (EI supply is cut. 2. PCB error. 2D B). 2. Contact MODENA 3. Electricity leaks. ELCB indicator light is Customer Care for repair. off (EI 2 W). -
Page 15: Part 7: Specification
PART 7: SPECIFICATION Model EI 2D B EI 2 W Rated Voltage / Frequency 220V / 50/60Hz Rated Power 2400W Rated Current 0～11A Minimum Flow Rate 1.5 Liter/Minute Water Output Temperature 30 ~ 55 °C Working Pressure 0.03 ~ 0.3 MPa Protection Class IP Rating Product Size... -
Page 16: Appendix: Wiring Diagram
APPENDIX: WIRING DIAGRAM EI 2D B Thermal Cut-out Terminal Block Heating Element Flow Switch Silicon Control Main Control Board Display Board EI 2 W Thermal Cut-Out Terminal Block Heating Element Flow Switch Silicon Control Main Control Board Indicator Light Board... - Page 17 12/20...
