Agent336-FL Series User's Manual

Wall mounting (optional)
1.2

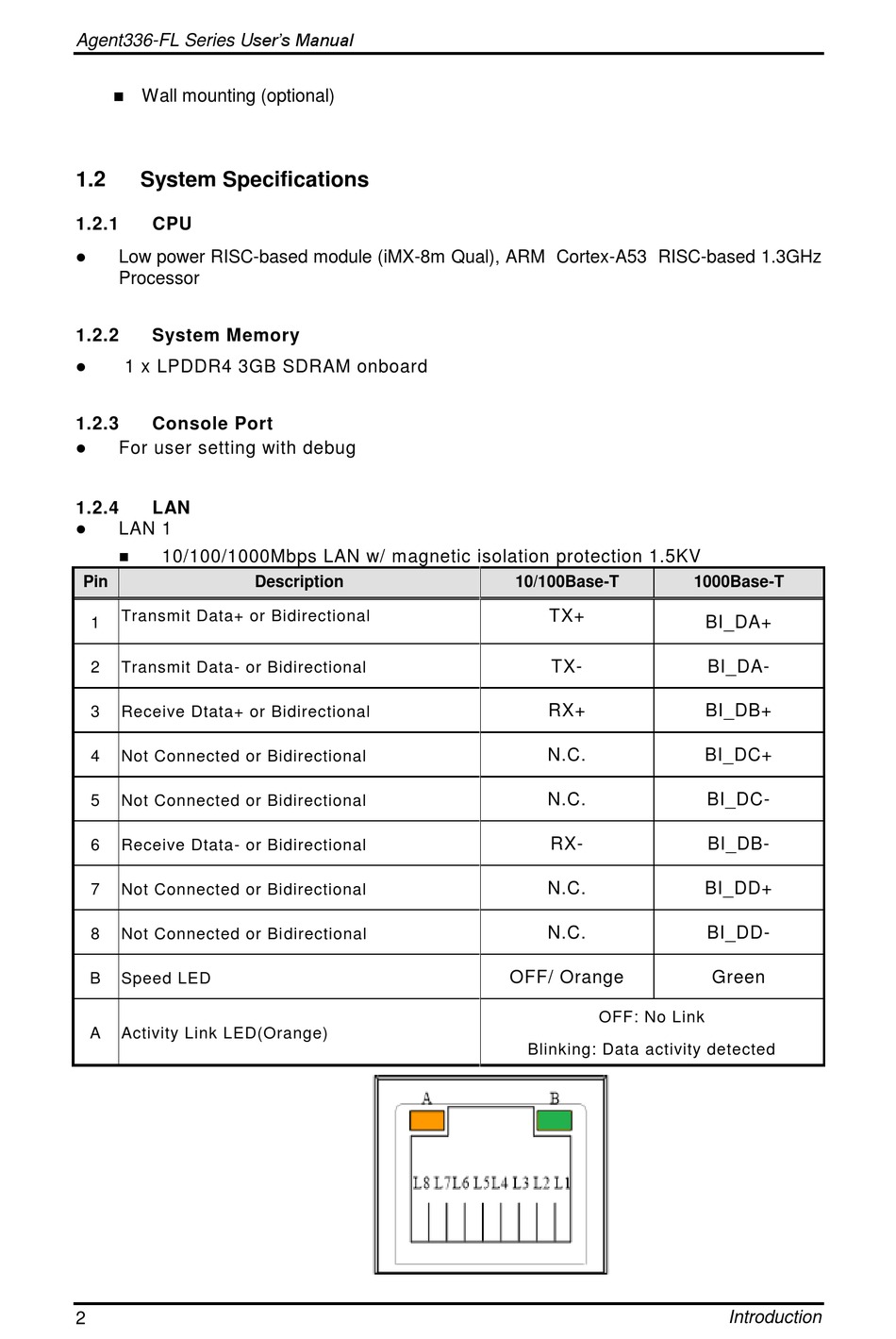

System Specifications

1.2.1

CPU

 Low power RISC-based module (iMX-8m Qual), ARM Cortex-A53 RISC-based 1.3GHz
Processor
1.2.2

System Memory

 1 x LPDDR4 3GB SDRAM onboard
1.2.3

Console Port

 For user setting with debug
1.2.4

LAN

 LAN 1
 10/100/1000Mbps LAN w/ magnetic isolation protection 1.5KV
Pin
Transmit Data+ or Bidirectional
1
2 Transmit Data- or Bidirectional
3 Receive Dtata+ or Bidirectional
4 Not Connected or Bidirectional
5 Not Connected or Bidirectional
6 Receive Dtata- or Bidirectional
7 Not Connected or Bidirectional
8 Not Connected or Bidirectional
B Speed LED
A Activity Link LED(Orange)
2
Description 10/100Base-T
TX+
TX-
RX+
N.C.
N.C.
RX-
N.C.
N.C.
OFF/ Orange
OFF: No Link
Blinking: Data activity detected
1000Base-T
BI_DA+
BI_DA-
BI_DB+
BI_DC+
BI_DC-
BI_DB-
BI_DD+
BI_DD-
Green
Introduction
