Agent336-FL Series User's Manual

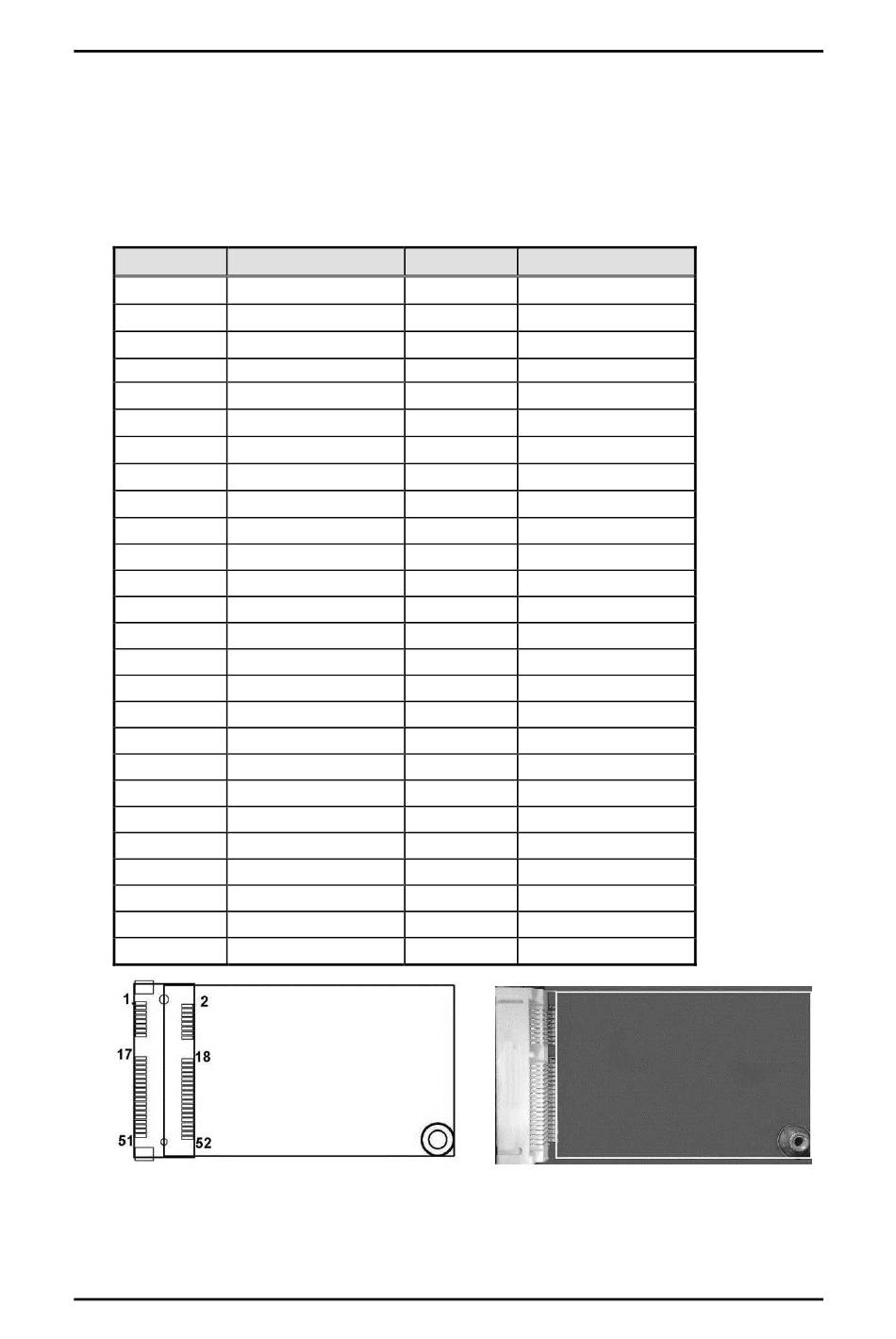

PCI-Express Mini Card Connector
The PCI Express Mini Card connectors are supported 1x PCI Express lane and 1x USB
2.0 lanes. A PCI Express Mini Card can be applied either PCI Express or USB 2.0. It's
very helpful that we designed USB 2.0 and PCI Express lane in the same slot once it was
been an inteface migration. We provide a convient and low cost solution for you by this
friendly design.
Pin Signal
1 W AKE#
3 No use
5 No use
7 CLKREQ#
9 GND
11 REFCLK-
13 REFCLK+
15 GND
No use
17
No use
19
21 GND
23 PE_RXN4
25 PE_RXP4
27 GND
29 GND
31 PE_TXN4
33 PE_TXP4
35 GND
37 GND
+3.3VSB
39
+3.3VSB
41
43 GND
No use
45
No use
47
No use
49
No use
51
10
Pin Signal
2 +3.3VSB
4 GND
6 +1.5V
8 No use
No use
10
No use
12
No use
14
No use
16
18 GND
20 +3.3VSB
22 PERST#
24 +3.3VSB
26 GND
28 +1.5V
30 SMB_CLK
32 SMB_DATA
34 GND
36 USB_D3-
38 USB_D3+
40 GND
LED_W W AN#
42
LED_W LAN#
44
LED_W PAN#
46
48 +1.5V
50 GND
52 +3.3VSB
