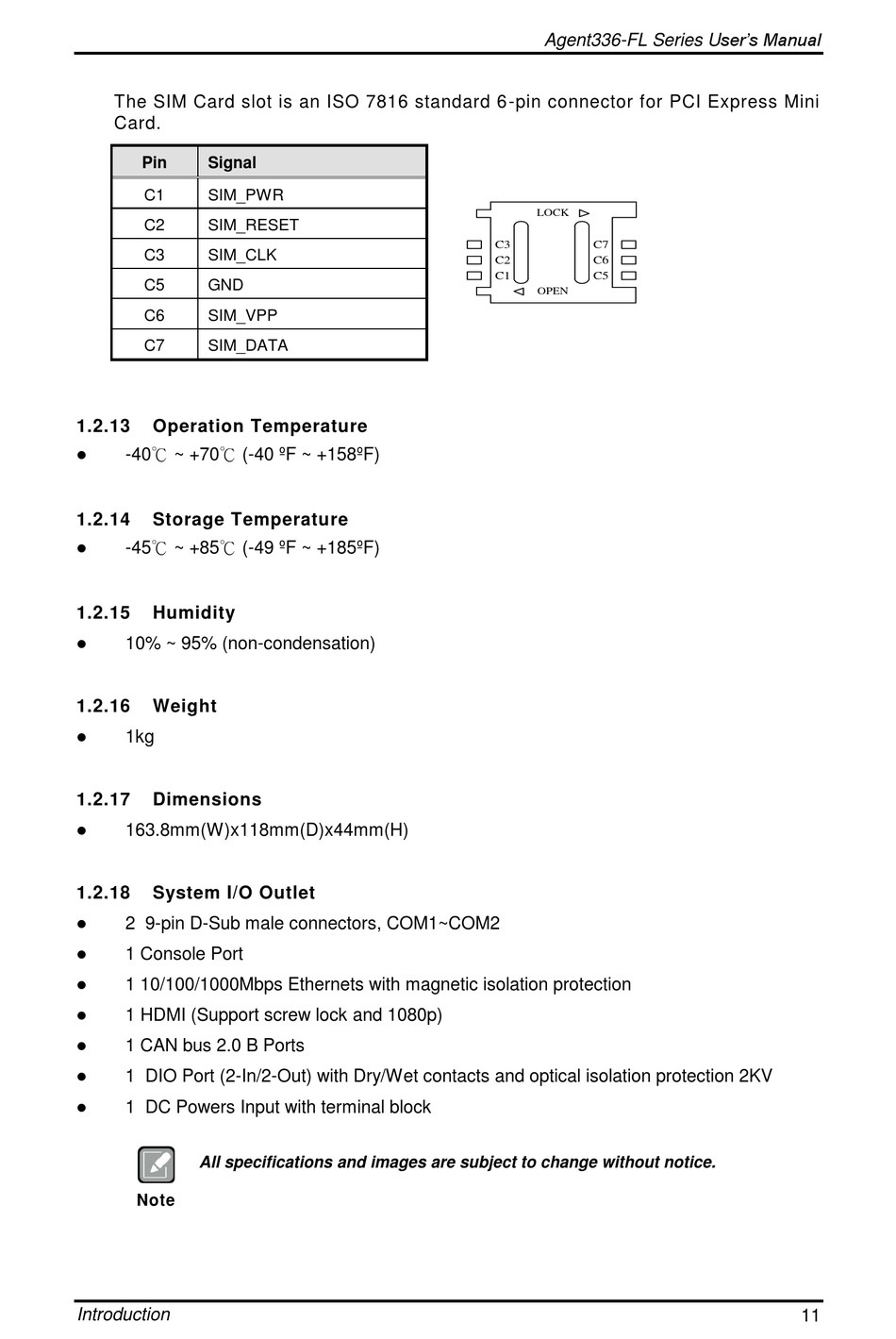

The SIM Card slot is an ISO 7816 standard 6 -pin connector for PCI Express Mini
Card.
Pin Signal
C1 SIM_PWR
C2 SIM_RESET
C3 SIM_CLK
C5 GND
C6 SIM_VPP
C7 SIM_DATA
1.2.13

Operation Temperature

 -40℃ ~ +70℃ (-40 ºF ~ +158ºF)
1.2.14

Storage Temperature

 -45℃ ~ +85℃ (-49 ºF ~ +185ºF)
1.2.15

Humidity

 10% ~ 95% (non-condensation)
1.2.16

Weight

 1kg
1.2.17

Dimensions

 163.8mm(W)x118mm(D)x44mm(H)
1.2.18

System I/O Outlet

 2 9-pin D-Sub male connectors, COM1~COM2
 1 Console Port
 1 10/100/1000Mbps Ethernets with magnetic isolation protection
 1 HDMI (Support screw lock and 1080p)
 1 CAN bus 2.0 B Ports
 1 DIO Port (2-In/2-Out) with Dry/Wet contacts and optical isolation protection 2KV

1 DC Powers Input with terminal block
All specifications and images are subject to change without notice.
Note
Introduction
Agent336-FL Series User's Manual
LOCK
C3 C7
C2 C6
C1 C5
OPEN
