WARNING

Please use only when the operating environment meets the
requirements specified above. Otherwise, the pump's performance will
not match the technical specifications in A Product Specifications. Device
failure and other unexpected consequences may also result.

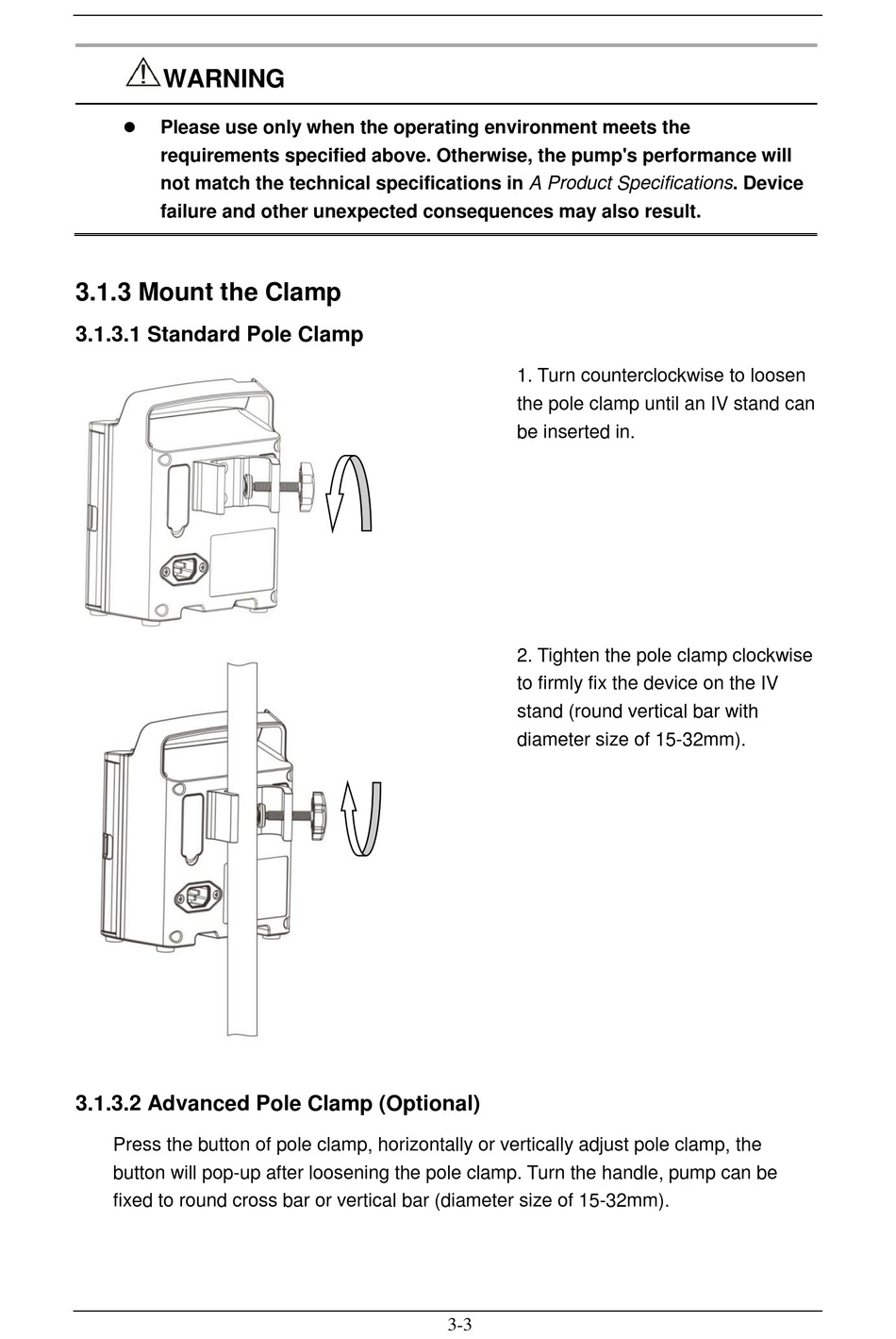

3.1.3 Mount the Clamp

3.1.3.1 Standard Pole Clamp

3.1.3.2 Advanced Pole Clamp (Optional)

Press the button of pole clamp, horizontally or vertically adjust pole clamp, the
button will pop-up after loosening the pole clamp. Turn the handle, pump can be
fixed to round cross bar or vertical bar (diameter size of 15-32mm).
1. Turn counterclockwise to loosen
the pole clamp until an IV stand can
be inserted in.
2. Tighten the pole clamp clockwise
to firmly fix the device on the IV
stand (round vertical bar with
diameter size of 15-32mm).
3-3
