Preparatory steps

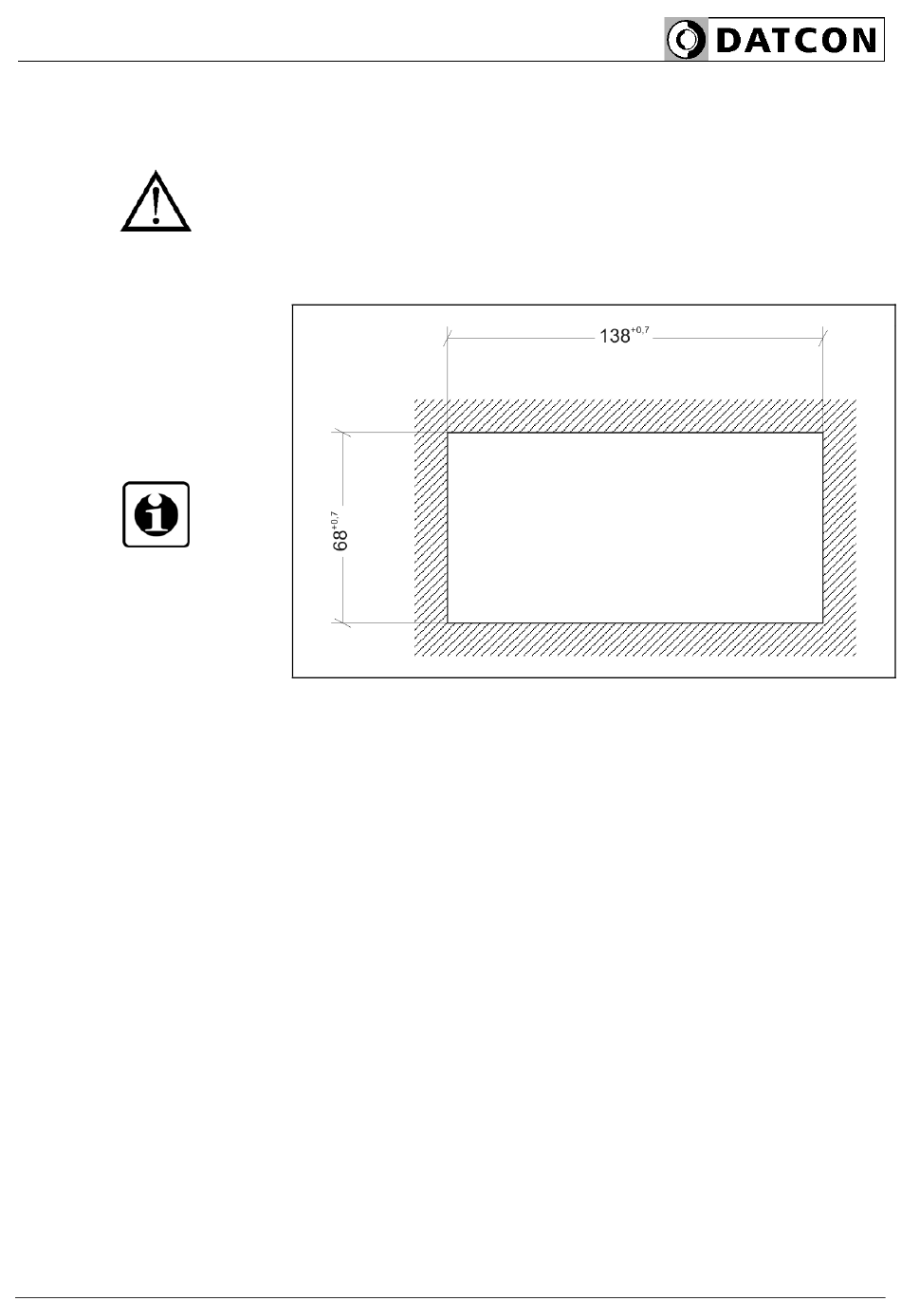

Cut-out dimensions
20180621-V1

4.3. Mounting procedure

1. Cut-out the panel according to the figure shows below.
The cut-out needs special tools, it must be carried out by
trained specialist personnel.
2. Put on the enclosed seal onto the instrument case from
the rear side and fit it to the instrument front panel back
side.
3. Put the instrument into the prepared cut-out until it
possible and check the seal between the case and the
mounting surface.
