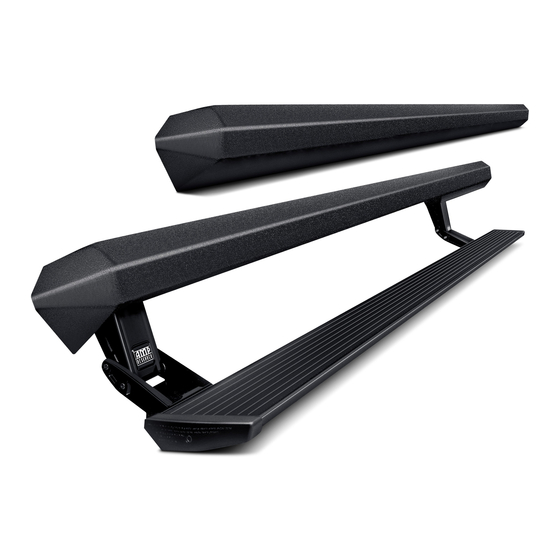

AMP Research PowerStep 77122-01A Installation Manual

Jeep wrangler jk 4dr 2007-2018
Hide thumbs

Advertisement

Quick Links

Download this manual
APPLICATION
Jeep Wrangler JK 4Dr
AMP RESEARCH TECH SUPPORT 1-888-983-2204 (Press 2) Monday - Friday, 7:00 AM - 5:00 PM PST
Invented, engineered and manufactured exclusively by AMP Research in the USA. May be covered by one of the following patents:
6,641,158; 6,830,257; 6,834,875; 6,938,909; 7,055,839; 7,380,807; 7,398,985; 7,584,975 ©2012 AMP Research. All rights reserved.
Printed in USA.
www.amp-research.com
I N S T A L L A T I O N G U I D E
2007-2018
1/11
AMP Part #
77122-01A
INSTALLATION TIME
3-5 Hours
Professional installation recommended
SKILL LEVEL
1 2 3
4= Experienced
TOOLS REQUIRED
q Safety goggles
q Measuring tape
q 10 mm socket
q 13 mm socket
q 1/2" socket
q Ratchet wrench and extension
q Wire crimpers
q Wire stripper / cutter
q
3 /16" hex key wrench (allen wrench)
q
4mm hex key wrench ( allen wrench )
q
Electrical tape
q
Weather proof caulking (silicone sealer)
q
Silicone spray
WARRANTY
5-Year Limited Warranty
IM77122 rev 01.21.20
4

Advertisement

loading

Related Manuals for AMP Research PowerStep 77122-01A

Summary of Contents for AMP Research PowerStep 77122-01A

  • Page 1 AMP RESEARCH TECH SUPPORT 1-888-983-2204 (Press 2) Monday - Friday, 7:00 AM - 5:00 PM PST Invented, engineered and manufactured exclusively by AMP Research in the USA. May be covered by one of the following patents: 6,641,158; 6,830,257; 6,834,875; 6,938,909; 7,055,839; 7,380,807; 7,398,985; 7,584,975 ©2012 AMP Research. All rights reserved.

  • Page 2: Exploded View

    A M P R E S E A R C H P O W E R S T E P – J e e p W r a n g l e r J K EXPLODED VIEW • Motor • Hex Head Bolts CAUTION: HANDLE WITH CARE.
  • Page 3 A M P R E S E A R C H P O W E R S T E P – J e e p W r a n g l e r J K (A) End cap left (x1) (B) End cap right (x1) (C) T-nut insert (x2) (D) Socket cap screw (x2)
  • Page 4 A M P R E S E A R C H P O W E R S T E P – J e e p W r a n g l e r J K 5/16 Flange Bolt M8 Flange Bolt Controller STA Posi Tap Wire harness...
  • Page 5 A M P R E S E A R C H P O W E R S T E P – J e e p W r a n g l e r J K Support Tab LED Lamp LED Light Bracket Rail Support Bracket Cinch Fastener CRH Motor...
  • Page 6 A M P R E S E A R C H P O W E R S T E P – J e e p W r a n g l e r J K Locate rear linkage installation position in front of Install adaptor as shown rear body mount Hole not used...
  • Page 7 A M P R E S E A R C H P O W E R S T E P – J e e p W r a n g l e r J K Slide 4 carriage bolts (14) into rail pocket of driver side rail.
  • Page 8 A M P R E S E A R C H P O W E R S T E P – J e e p W r a n g l e r J K Using a 13mm socket Torque linkage bolts 4x (15) Attach motor to linkage.
  • Page 9 A M P R E S E A R C H P O W E R S T E P – J e e p W r a n g l e r J K Lift carpet. Slit rubber grommet and pass trigger Remove passenger side front door sill.
  • Page 10 A M P R E S E A R C H P O W E R S T E P – J e e p W r a n g l e r J K On driver side, run Wire Harness leg down and along underside of the vehicle floor and frame to front Drive Linkage. Connect harness to motor and secure harness with tie wraps.

  • Page 11: Final System Check

    A M P R E S E A R C H P O W E R S T E P – J e e p W r a n g l e r J K Reinstall Fuses from Powerstep Wire Harness. Check that all doors activate the Power Step and the LED Lights work when doors open and close.

  • Page 13: Year Limited Warranty

    5-YEAR LIMITED WARRANTY AMP RESEARCH warrants this product to be free from defects in material and workmanship for FIVE (5) YEARS FROM DATE OF PURCHASE, provided there has been normal use and proper maintenance. This warranty applies to the original purchaser only.
