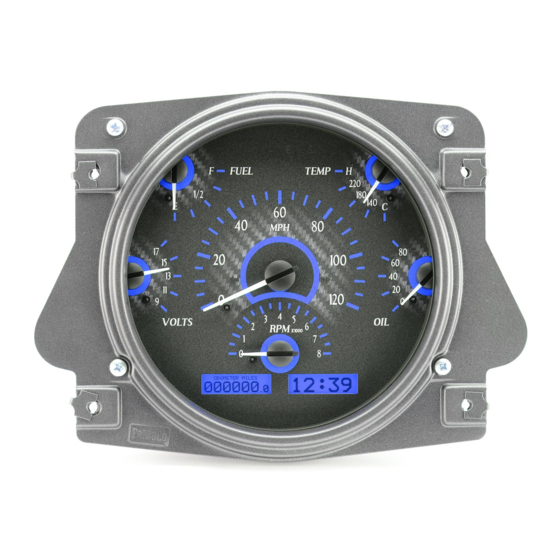

VHX-66F-BRO
Dakota Digital VHX Instrument Installation
For 1961-'66 Ford pickup
1966-'77 Ford Bronco

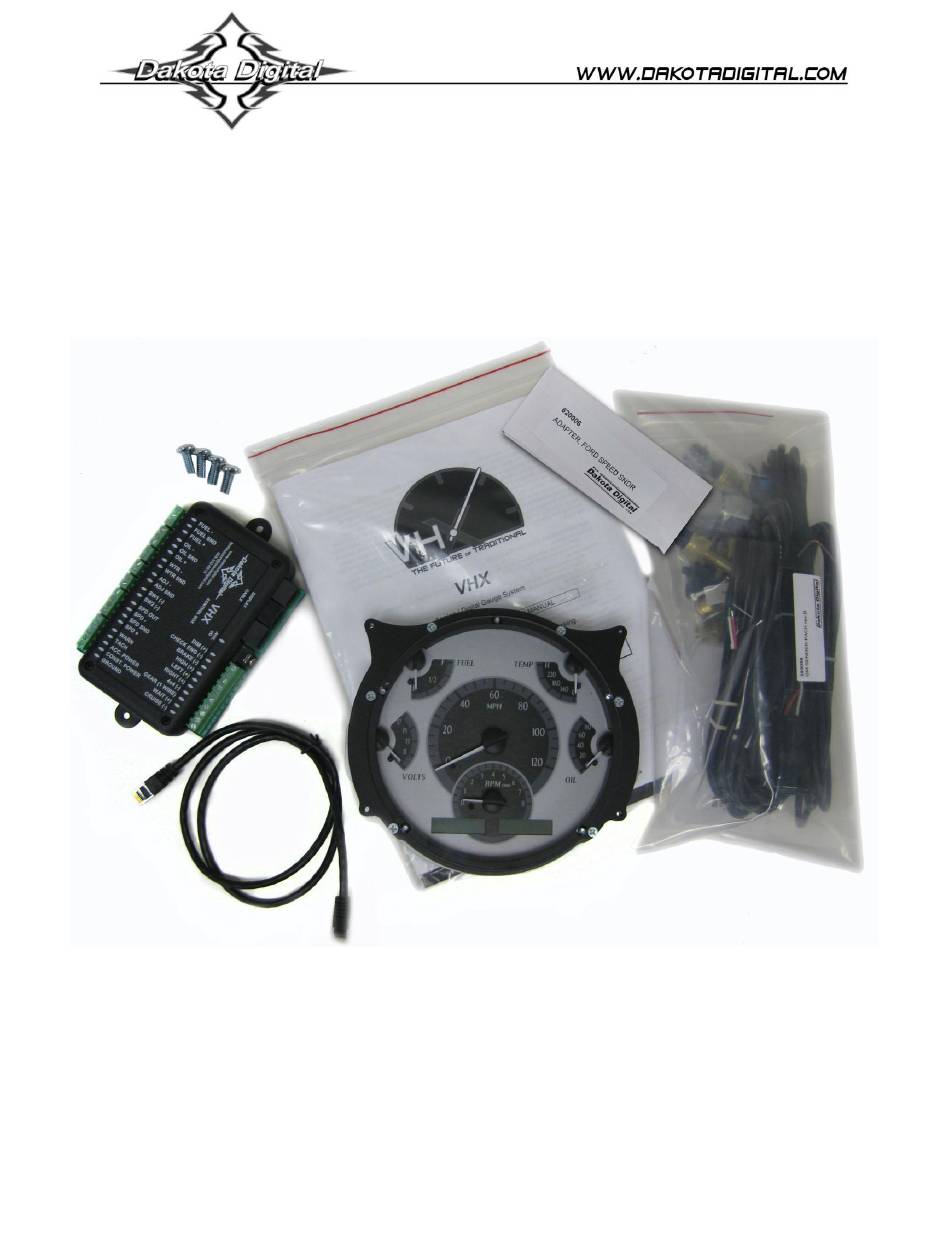

Your new VHX-66F-BRO kit should include:
Installation Manuals
Ford Speed
Universal Sender
Sender
Pack
8-32 Screws
Control Box
CAT5 Cable
(Connects Display
to Control Box)
VHX Display
Manual #650363
Advertisement
Related Manuals for Dakota Digital VHX-66F-BRO
Summary of Contents for Dakota Digital VHX-66F-BRO
- Page 1 VHX-66F-BRO Dakota Digital VHX Instrument Installation For 1961-’66 Ford pickup 1966-‘77 Ford Bronco Your new VHX-66F-BRO kit should include: Installation Manuals Ford Speed Universal Sender Sender Pack 8-32 Screws Control Box CAT5 Cable (Connects Display to Control Box) VHX Display...
-
Page 2: Installation
Installation 1. Remove the stock gauges from the dash. Remove the four screws holding the gauges cluster to the dash. These screws will be re-used for the VHX installation. *F100 Owners: Remove the four screws from the dash to remove the stock gauges. Skip to step 6. Manual #650363... - Page 3 2. Remove these four screws to separate the bezel from the gauges. 3. Remove the gauges, separator plate, and lens. The only part that will be re-used is the stamped bezel. Now is a good time to clean the bezel. Manual #650363...
- Page 4 4. Remove the protective tape from the clear lens and install the VHX system into the bezel. Watch carefully as you insert the system so you don’t scratch or damage the lens. 5. Secure the VHX system to the bezel with the four supplied 8-32 screws. The VHX system should align tightly and sit flush with the bezel.
- Page 5 6. Connect the CAT5 cable to the system so it can be routed and connected to the control box as the system is re-installed 6. Install system with original bezel back into the dash with these four original screws *F100 Owners: Install the system into the dash using the four supplied 8-32 screws. Manual #650363...
- Page 6 7. Re-install the cluster into the truck and refer to the main manual for wiring instructions to complete the VHX installation. 4510 W. 61 St. N., Sioux Falls SD 57107 Phone: (605) 332-6513 Fax: (605) 339-4106 www.dakotadigital.com dakotasupport@dakotadigital.com Manual #650363...
