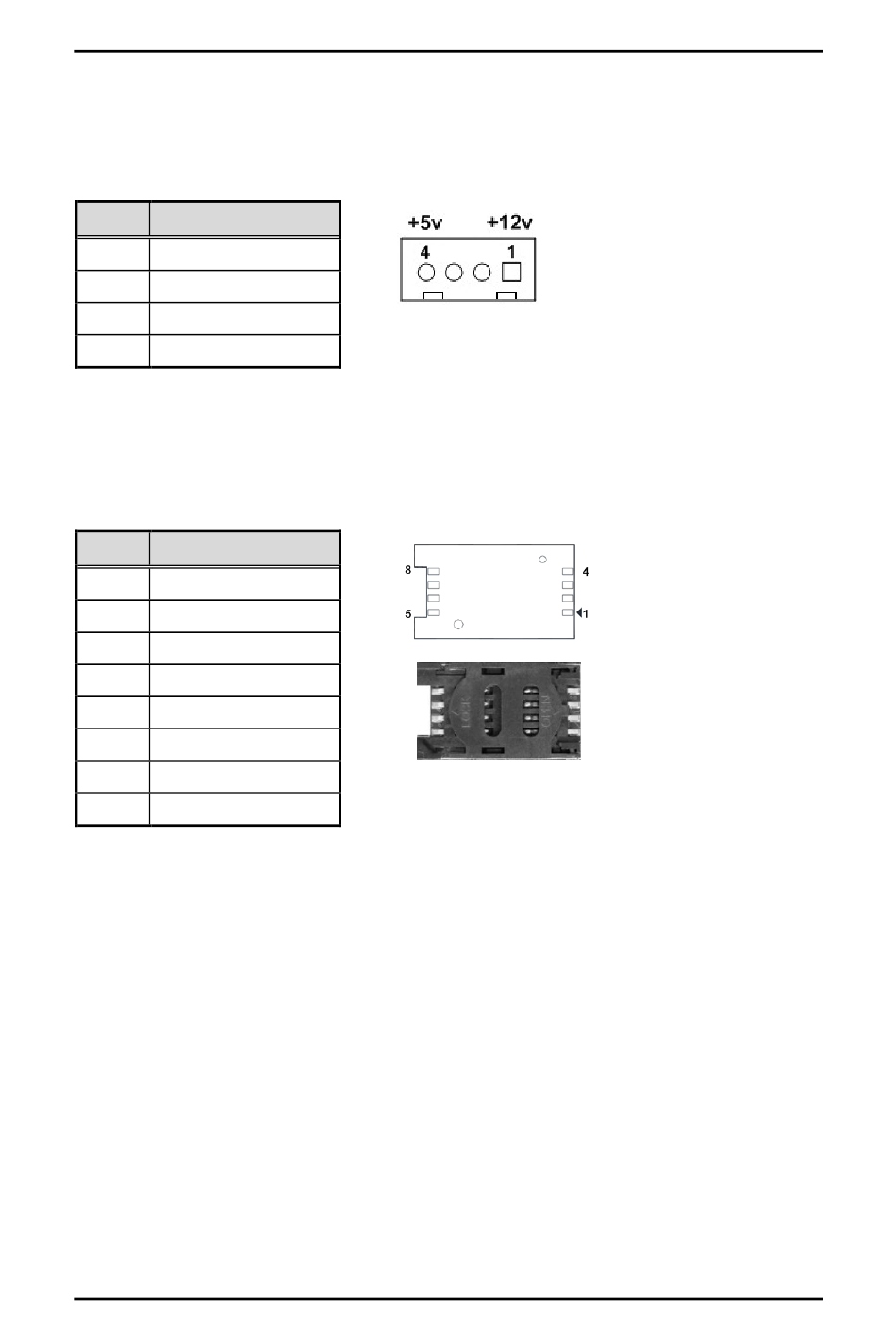

3.3.13 SATA Power Connector (CN16,CN17)

Based on CN19、CN17 to offer the SATA power for SATA 2.5" HDD/SSD.
Pins Signals
1 +12V level
2 GND
3 GND
4 +5V level

3.3.14 SIM Card Slots (CN13,CN14)

The eBOX710-521-FL includes two SIM slots (SCN1) on the bottom side of the system
for inserting the SIM card. It is mainly used in 3G/LTE wireless network application
on SCN13 and SCN14.
Pins Signals
1 PW R
2 RST
3 CLK
4 NC
5 GND
6 VPP
7 I/O
8 NC
