Step 5

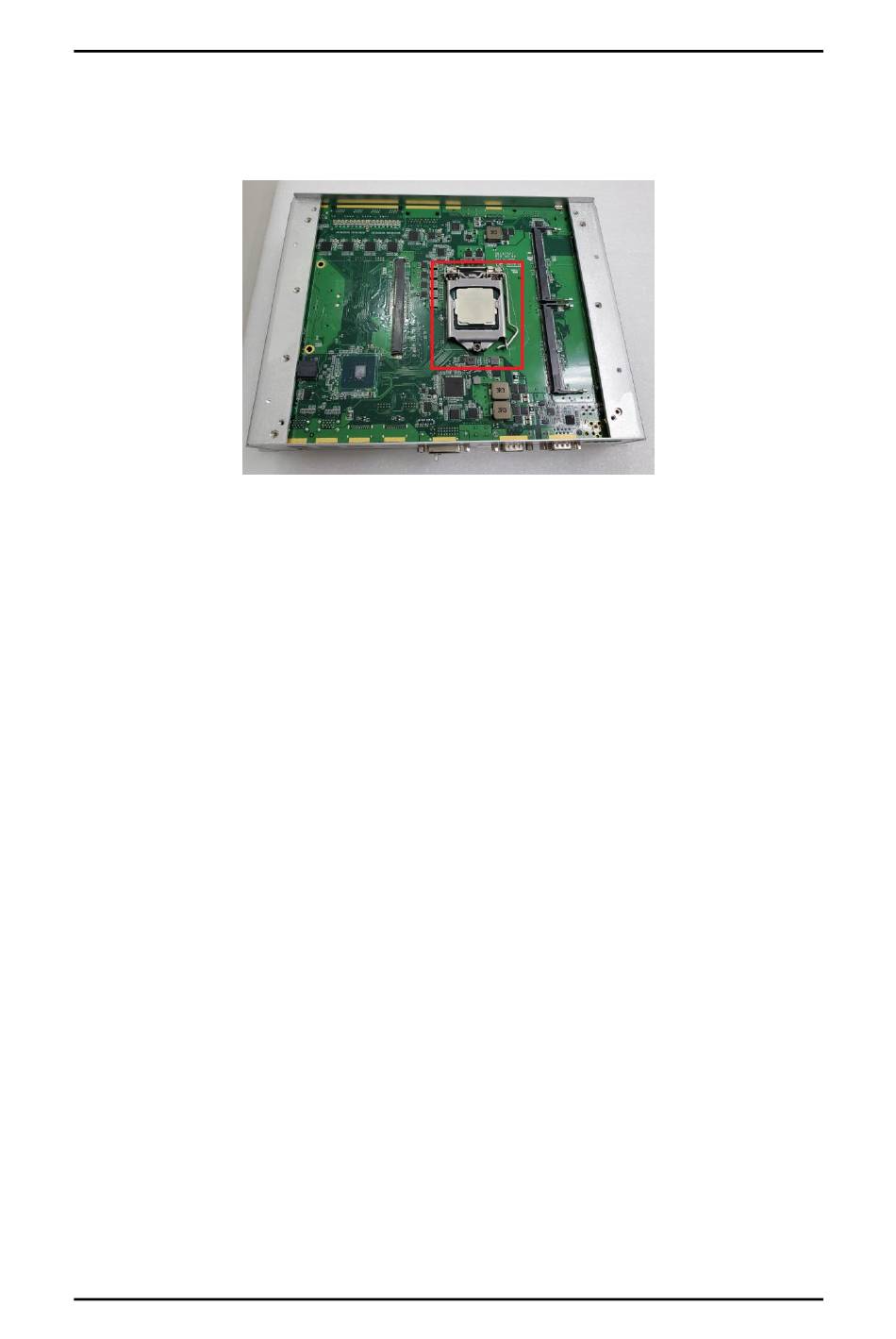

Align pins of the CPU with pin holes of the socket. While installing the
CPU, pay attention to the CPU's orientation by aligning the arrow mark
on the CPU with the arrow key on the socket.
Step 6 Put the top cover and fasten four screws back onto the system.
Hardware Installation
eBOX710-521-FL Series user's Manual
15
