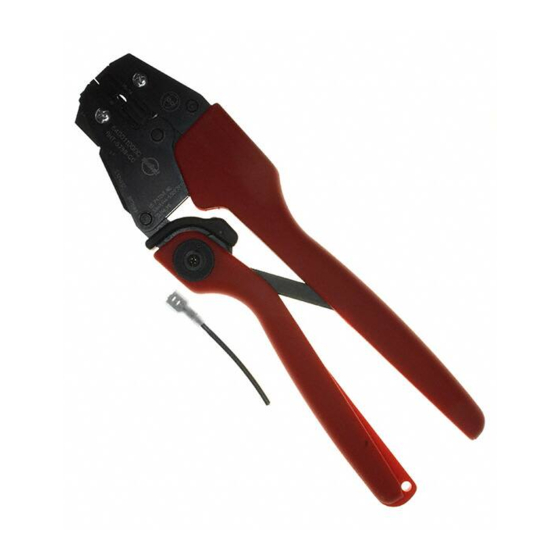

RHT5758-CC Hand Crimp Tool
FEATURES
§
A full cycle ratcheting hand tool ensures complete crimps
§
Long handles for comfortable crimping with reduced crimping force
§
A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position
§
Single color-coded crimp pocket eliminates the possibility of using the wrong pocket
SCOPE
InsulKrimp™ Fully Insulated Quick Disconnect and, Perma-Seal™ Fully Insulated Quick Disconnect Conductor Crimp only 14–16 AWG.
Testing
Mechanical
The tensile test, or pull test, is a means of evaluating the mechanical properties of the crimped connections. The following charts
show the UL specifications for various wire sizes. The tensile strength is shown in pounds and indicates the minimum acceptable
force to break or separate the terminal from the conductor.
The following is a partial list of the product part numbers and their specifications that this tool is designed to run. We will be adding
to this list and an up to date copy is available on www.molex.com.
Wire Size: 14 – 16 AWG
Terminal
Terminal
No.
Eng No. (REF)
19003-0040
BB-2206
19003-0044
BB-2206VB
19003-0047
BB-2206X
19003-0050
BB-2207
19003-0053
BB-2207X
19003-0056
BB-2208
OPERATION
Open the tool by first closing the jaws sufficiently for the ratchet mechanism to release.
Doc No. 64001-1000
Release Date: 12-11-02
Revision: B
Revision Date: 09-02-03

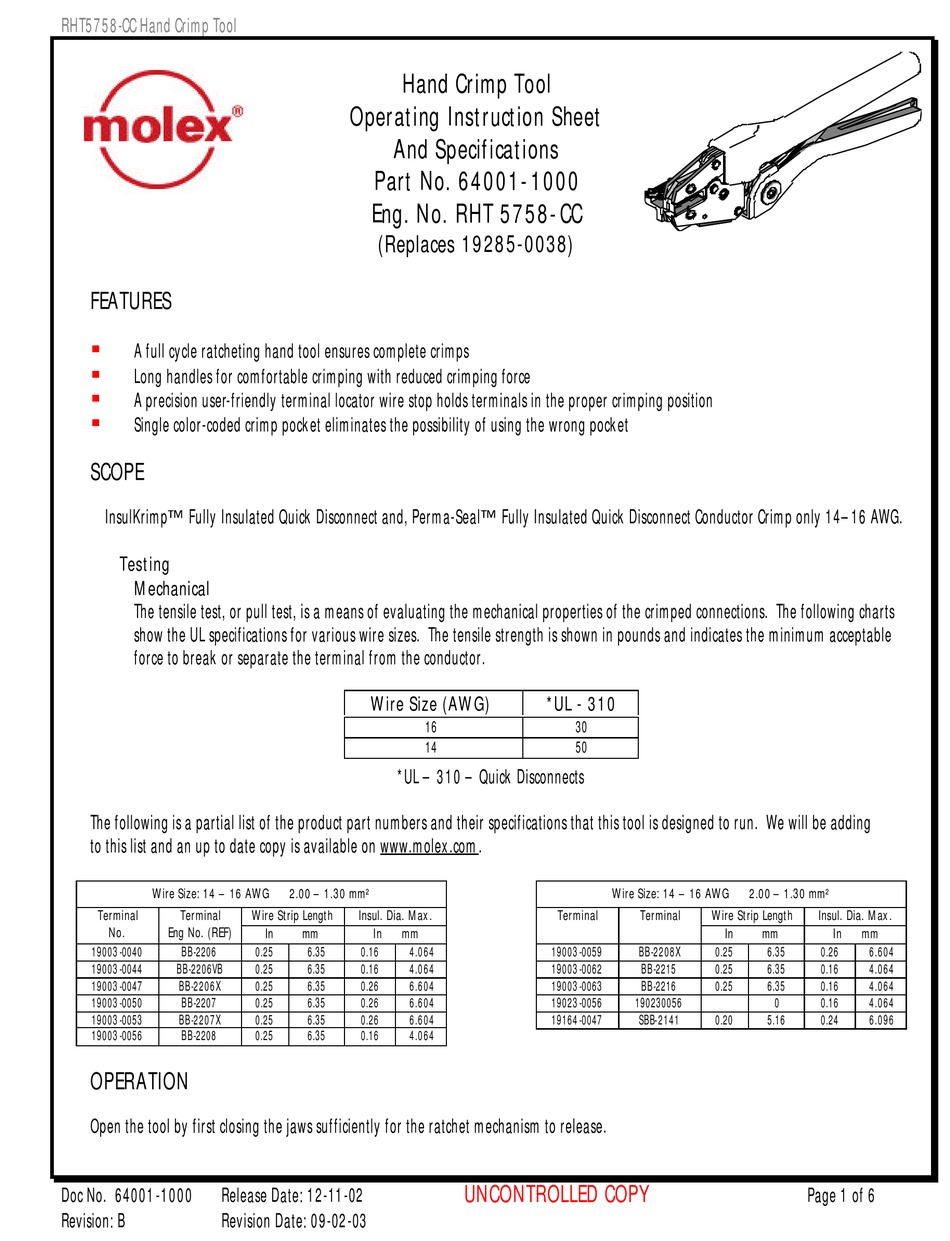

Hand Crimp Tool
Operating Instruction Sheet
And Specifications
Part No. 64001-1000
Eng. No. RHT 5758-CC
(Replaces 19285-0038)
Wire Size (AWG)
16
14
*UL – 310 – Quick Disconnects
2.00 – 1.30 mm²
Wire Strip Length
Insul. Dia. Max.
In
mm
In
mm
0.25
6.35
0.16
4.064
0.25
6.35
0.16
4.064
0.25
6.35
0.26
6.604
0.25
6.35
0.26
6.604
0.25
6.35
0.26
6.604
0.25
6.35
0.16
4.064
*UL - 310
30
50
Wire Size: 14 – 16 AWG
Terminal
Terminal
19003-0059
BB-2208X
19003-0062
BB-2215
19003-0063
BB-2216
19023-0056
190230056
19164-0047
SBB-2141
UNCONTROLLED COPY
2.00 – 1.30 mm²
Wire Strip Length
Insul. Dia. Max.
In
mm
In
mm
0.25
6.35
0.26
6.604
0.25
6.35
0.16
4.064
0.25
6.35
0.16
4.064
0
0.16
4.064
0.20
5.16
0.24
6.096
Page 1 of 6
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for molex 64001-1000
Summary of Contents for molex 64001-1000
- Page 1 The following is a partial list of the product part numbers and their specifications that this tool is designed to run. We will be adding to this list and an up to date copy is available on www.molex.com. Wire Size: 14 – 16 AWG 2.00 –...
- Page 2 PUNCH WIRE STOP BUILT PUNCH 5. Remove the crimp and inspect for proper crimp INSERT INTO TERMINAL location. Molex offers a Crimp Inspection Handbook for closed barrel industrial product. See our website TERMINAL or contact your sales engineer. WIRE LOCATOR...
- Page 3 3. Make certain all pin, pivot points and bearing surfaces are protected with a thin coat of high quality machine oil. Do not oil excessively. The 64001-1000 (RHT-5758-CC) was engineered for durability, but like any fine piece of equipment it needs cleaning and lubrication for a maximum service life of trouble-free crimping.
- Page 4 Hand held crimping tools are intended for low volume, prototyping or repair requirements only. Caution: Repetitive use of this tool should be avoided. UNCONTROLLED COPY Doc No. 64001-1000 Release Date: 12-11-02 Page 4 of 6 Revision: B Revision Date: 09-02-03...
- Page 5 M4 X 30LG FOR SPRING PAN HEAD SCREW ACCESS SWING OPEN COVER REPAIR KIT. ALL PARTS REQUIRED FOR REPAIR. (ONLY MAIN SPRING SHOWN) Figure 6 UNCONTROLLED COPY Doc No. 64001-1000 Release Date: 12-11-02 Page 5 of 6 Revision: B Revision Date: 09-02-03...
- Page 6 Technician ______________ Date of Calibration ______________ Calibration should be done every 5,000 cycles or 3 months. Tools should be lubricated during this operation. Molex Application Tooling Group 1150 E. Diehl Road Naperville, IL 60563 Tel: (630) 969-4550 Fax (630) 505-0049 UNCONTROLLED COPY Doc No.
