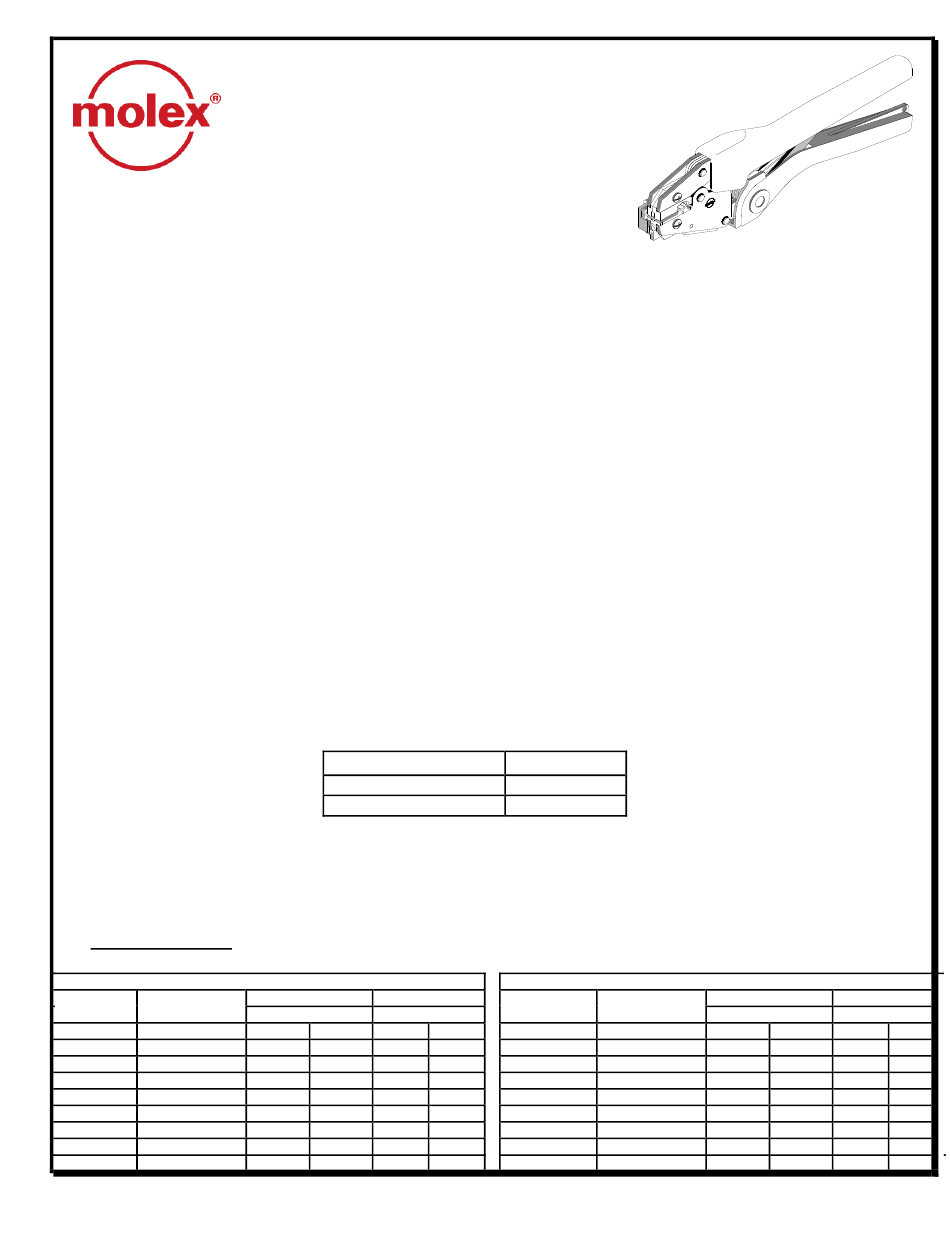

molex RHT 2200HD Operating Instruction Sheet And Specifications

RHT2200HD Hand Crimp Tool
FEATURES

A full cycle ratcheting hand tool ensures complete crimps

Long handles for comfortable crimping with reduced crimping force

A precision user-friendly terminal locator wire stop holds terminals in the proper crimping
position.

Insulation crimp adjustment allows a precise insulation crimp. To meet or exceed the
requirements of UL, CSA and Military Class II

Single color-coded crimp pocket eliminates the possibility of using the wrong pocket
SCOPE
AviKrimp /InsulKrimp Terminals 14-16 AWG Heavy Duty, (Rings, Spades, Railroad
Rings and Test Terminals.)
Testing
Mechanical
The tensile test, or pull test, is a means of evaluating the mechanical properties of the
crimped connections. The following charts show the UL specifications for various wire
sizes. The tensile strength is shown in pounds and indicates the minimum acceptable
force to break or separate the terminal from the conductor.
The following is a partial list of the product part numbers and their specifications that this tool
is designed to run. We will be adding to this list and an up to date copy is available on
www.molex.com
Wire Size: 14 – 16 AWG
Terminal
Terminal No.
Eng No. (REF)
19054-0063 B-201-12HDX
19054-0066 B-201-38HDX
19054-0070 B-201-76HDX
19054-0090 B-228-06HDX
19054-0092 B-228-08HDX
19054-0094 B-228-10HDX
19054-0096 B-230-10HDX
19054-0097 B-230-14HDX
Doc No. 64001-1600
Revision: A
Hand Crimp Tool
Operating Instruction Sheet
And Specifications
Part No. 64001-1600
Eng. No. RHT 2200HD
(Replaces 19285-0019)
Wire Size (AWG)
16
14
*UL - 486 A - Terminals (Copper conductors only)
2.00 – 1.30 mm²
Wire Strip Length Insul. Dia. Max.
In. mm In.
0.31 7.94 0.25
0.31 7.94 0.25
0.31 7.94 0.25
0.31 7.94 0.25
0.31 7.94 0.25
0.31 7.94 0.25
0.31 7.94 0.25
0.31 7.94 0.25
Page 1 of 8
Revision Date: 06-25-03
*UL - 486 A
30
50
Wire Size: 14 – 16 AWG
Terminal No.
Eng No. (REF)
mm
6.35 19054-0098 B-230-56HDX
6.35 19054-0126 B-240-38HDX
6.35 19058-0016 B-801-12HD
6.35 19058-0026 B-801-76HD
6.35 19058-0041 B-828-08HD
6.35 19058-0047 B-828-10HD
6.35 19058-0058 B-830-10HDRR
6.35 19058-0063 B-830-14HD
Release Date: 01-15-03
2.00 – 1.30 mm²
Wire Strip Length
Terminal
In. mm
0.31 7.94
0.31 7.94
0.38 9.53
0.38 9.53
0.38 9.53
0.38 9.53
0.38 9.53
0.38 9.53
UNCONTROLLED COPY
Insul. Dia. Max.
In. mm
0.25 6.35
0.25 6.35
0.23 5.72
0.23 5.72
0.23 5.72
0.23 5.72
0.25 6.22
0.23 5.72
