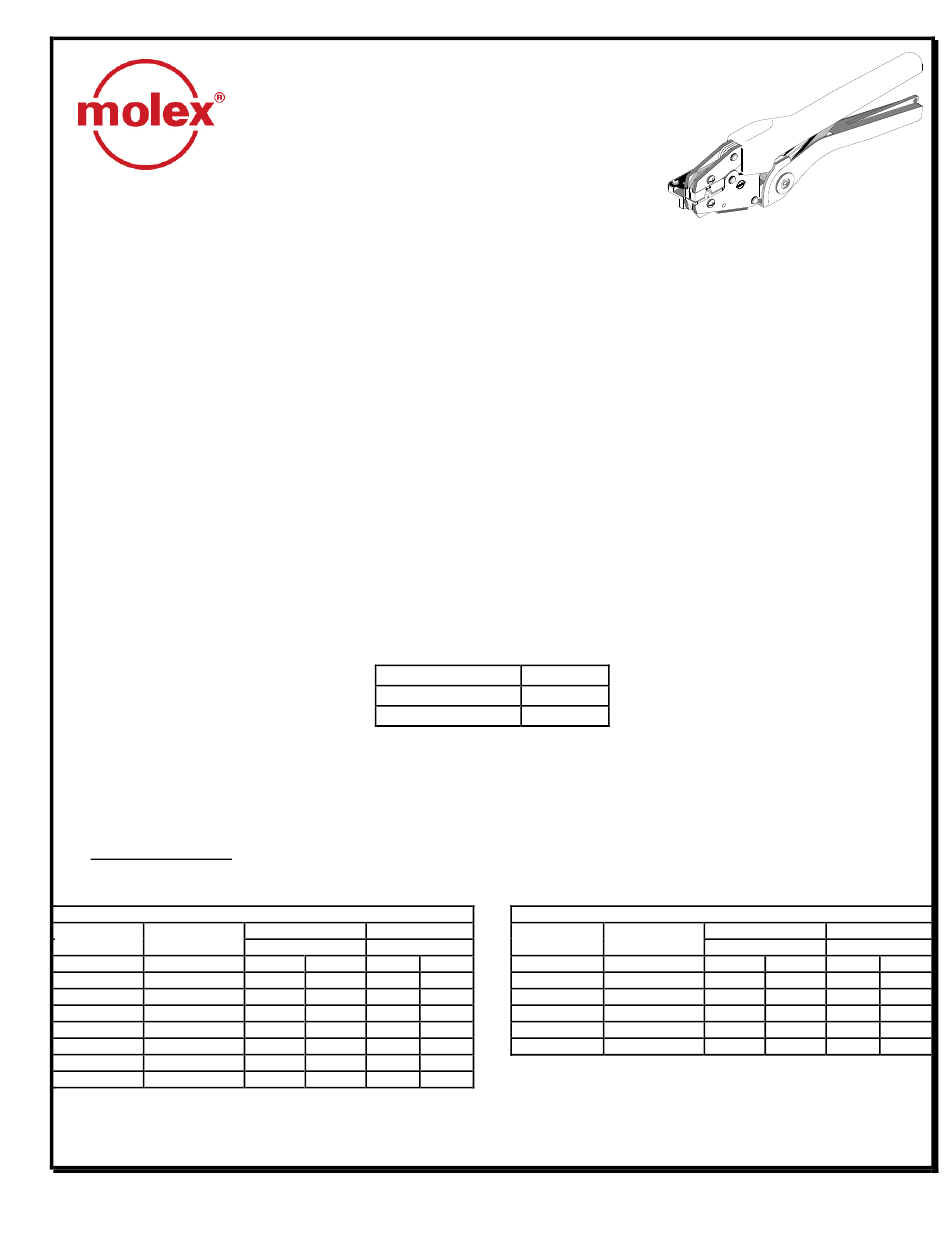

molex RHT 5758 Operating Instruction Sheet And Specifications

RHT5758 Hand Crimp Tool
FEATURES

A full cycle ratcheting hand tool ensures complete crimps

Long handles for comfortable crimping with reduced crimping force

A precision user-friendly terminal locator wire stop holds terminals in the proper crimping
position

Insulation crimp adjustment allows a precise insulation crimp. To meet or exceed the
requirements of UL, CSA and Military Cass II

Single color-coded crimp pocket eliminates the possibility of using the wrong pocket
SCOPE
AviKrimp  / InsulKrimp Female Quick Disconnect 14–16 AWG
Testing
Mechanical
The tensile test or pull test is a means of evaluating the mechanical properties of the
crimped connections. The following charts show the UL specifications for various wire
sizes. The tensile strength is shown in pounds and indicates the minimum acceptable force
to break or separate the terminal from the conductor.
The following is a partial list of the product part numbers and their specifications that this tool
is designed to run. We will be adding to this list and an up to date copy is available on
www.molex.com.
Wire Size: 14 – 16 AWG
Terminal
Terminal No.
Eng No. (REF)
19017-0023 BB-2132
19017-0028 BB-2135
19017-0031 BB-2138
19017-0032 BB-2138-032
19017-0037 BB-2141
19017-0043 BB-2191
19017-0044 BB-2191-032
19019-0022 BB-8132
Doc No. 64001-2000
COPY
Page 1 of 8
Revision: B Revision Date: 09-02-03
Hand Crimp Tool
Operating Instruction Sheet And Specifications
Part No. 64001-2000
Eng. No. RHT 5758
(Replaces 19285-0037)
Wire Size (AWG)
*UL – 310 – Quick Disconnects
2.00 – 1.30 mm²
Wire Strip Length Insul. Dia. Max.
In mm In
0.31 7.94 0.14
0.31 7.94 0.14
0.31 7.94 0.14
0.31 7.94 0.14
0.31 7.94 0.14
0.31 7.94 0.14
0.31 7.94 0.14
0.31 7.94 0.14
*UL - 310
16 30
14 50
Wire Size: 14 – 16 AWG
Terminal No.
Eng No. (REF)
mm
3.56 19019-0025
3.56 19019-0027
3.56 19019-0028
3.56 19019-0031
3.56 19019-0034
3.56 19019-0035
3.56
3.56
Release Date: 12-11-02
2.00 – 1.30 mm²
Wire Strip Length
Terminal
In mm
BB-8135 0.31 7.94
BB-8138 0.31 7.94
BB-8138-032 0.31 7.94
BB-8141 0.31 7.94
BB-8191 0.31 7.94
BB-8191-032 0.31 7.94
UNCONTROLLED
Insul. Dia. Max.
In mm
0.14 3.56
0.14 3.56
0.14 3.56
0.14 3.56
0.14 3.56
0.14 3.56
