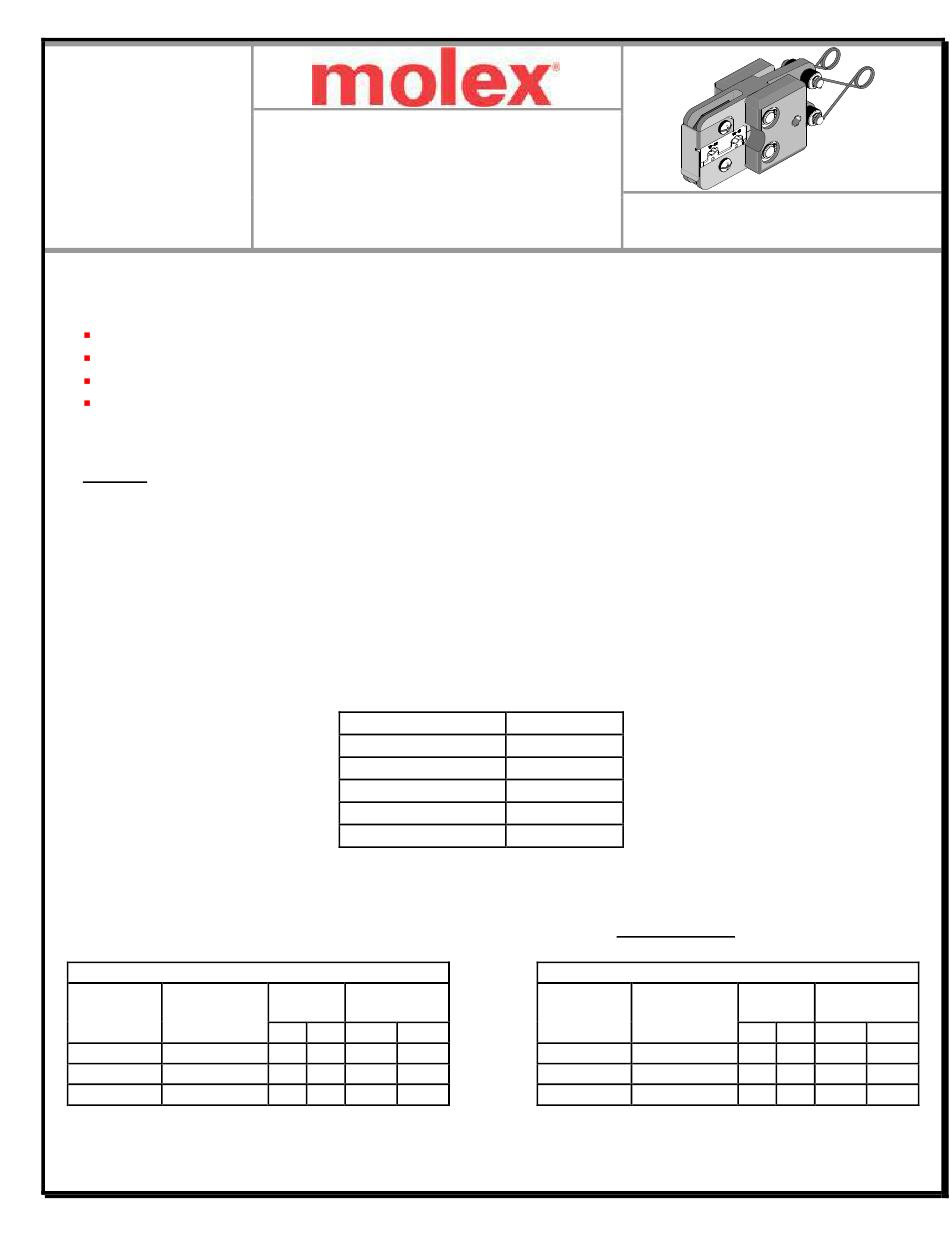

AT-AFIFG Air Crimp Tool Head
Air Powered
Crimp Tool Head
AviKrimp™
FEATURES
Quick-change tool head for the 19279-0001 (AT-200)
Tooling kit is interchangeable with other kits in the 64001 and 64003 Series
A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position.
Pneumatic powered crimp tools help reduce fatigue and discomfort from repetitive manual crimping
SCOPE
Products: AviKrimp™ Fully Pre-Insulated and-Insulated Quick Disconnect Flags 14-22 AWG. This tool head is
intended for use in the 19279-0001 (AT-200) either hand held or with optional bench adapter 19078-0307
(ATBA) and foot switch.
Testing
Mechanical
The tensile test, or pull test, is a means of evaluating the mechanical properties of the crimped connections.
The following charts show the UL and Government specifications (MIL-T-7928) for various wire sizes. The
tensile strengths are shown in pounds, and indicate the minimum acceptable force to break or separate the
terminal from the conductor.
The following is a partial list of the product part numbers and their specifications that this tool is designed to
run. We will be adding to this list and an up to date copy is available on www.molex.com.
Wire Size: 18 – 22 AWG 0.80 – 0.35 mm²
Terminal
Terminal No.
Eng. No. (REF)
19006-0001
AA-5220
19006-0005
AA-5222
19006-0008
AA-5223
Doc. No: ATS-640054300
Revision: B
Application Tooling
Specification Sheet
Wire Size (AWG)
22
20
18
16
14
*UL – 310 – Quick Disconnects
Wire Strip
Insulation
Length
Diameter Max.
In.
mm
In.
mm
.344 8.73
.150
3.81
.344 8.73
.150
3.81
.344 8.73
.150
3.81
Release Date: 10-01-03
Revision Date: 05-05-04
Order No. 64005-4300
Engineering No. AT AFIFG
*UL - 310
8
13
20
30
50
Wire Size: 14 – 16 AWG 2.00 – 1.30 mm²
Terminal
Terminal No.
Eng. No. (REF)
19006-0011
BB-5221
19006-0015
BB-5224
19006-0017
BB-5225
UNCONTROLLED COPY
Wire Strip
Insulation
Length
Diameter Max.
In.
mm
In.
mm
.344 8.73
.170
4.32
.344 8.73
.170
4.32
.344 8.73
.170
4.32
Page 1 of 6
