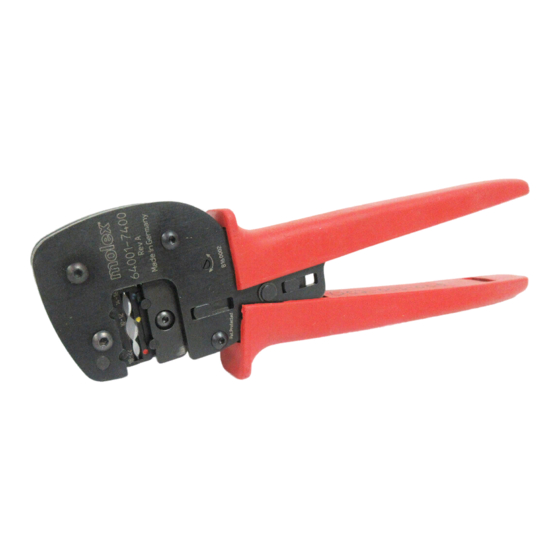

64001-7400 Hand Crimp Tool
Operating Instruction and Specifications Sheet
FEATURES

A full cycle ratcheting hand tool ensures complete crimps

Long handles for comfortable crimping with reduced crimping force

3-nested tool eliminates the need for additional tools

A precision user-friendly terminal locator holds terminals in the proper crimping position for
each of the three nests
SCOPE
Products: Perma-Seal Ring Tongue, Spade Tongue, Hook Tongue, 3 and 4-Way
Terminals. Butt Splices and Step Down Butt Splices 10–22 AWG.
Testing
Mechanical
The tensile test, or pull test, is a means of evaluating the mechanical properties of the
crimped connections. The following charts show the specifications for various wire sizes.
The tensile strength is shown in pounds and indicates the minimum acceptable force to
break or separate terminal from the conductor.
The following is a partial list of the product part numbers and their specifications that this tool
is designed to run. We will be adding to this list and an up to date copy is available on
www.molex.com
Terminal No.
19164-0003
19164-0004
19164-0005
19164-0006
19164-0007
19164-0008
Doc No. ATS-640017400
COPY
Revision: A
Hand Crimp Tool
Order No. 64001-7400
(Replaces 64001-3200)
Wire Size (AWG)
22
20
18
16
14
12
10
*UL - 486 A - Terminals (copper conductors only)
*UL - 486 C - Butt Splices, Parallel Splices
Wire Size: 18 – 22 AWG 0.80 – 0.35 mm²
Terminal Terminal No.
Eng No. (REF) Mylar Tape
SA-221-10 19164-0306
SA-222-14 19164-0844
SA-226-38 19164-0845
SA-235-06
SA-235-08
SA-235-10
Page 1 of 9
Revision Date: 05-21-07
UL – 486 A UL – 486 C
8 8
13 10
20 10
30 15
50 25
70 35
80 40
Wire Strip Length
In mm
.281 7.14
.281 7.14
.281 7.14
.281 7.14
.281 7.14
.281 7.14
Release Date: 05-21-07
Insulation Diameter
Maximum
In mm
.235 5.97
.235 5.97
.235 5.97
.235 5.97
.235 5.97
.235 5.97
UNCONTROLLED
