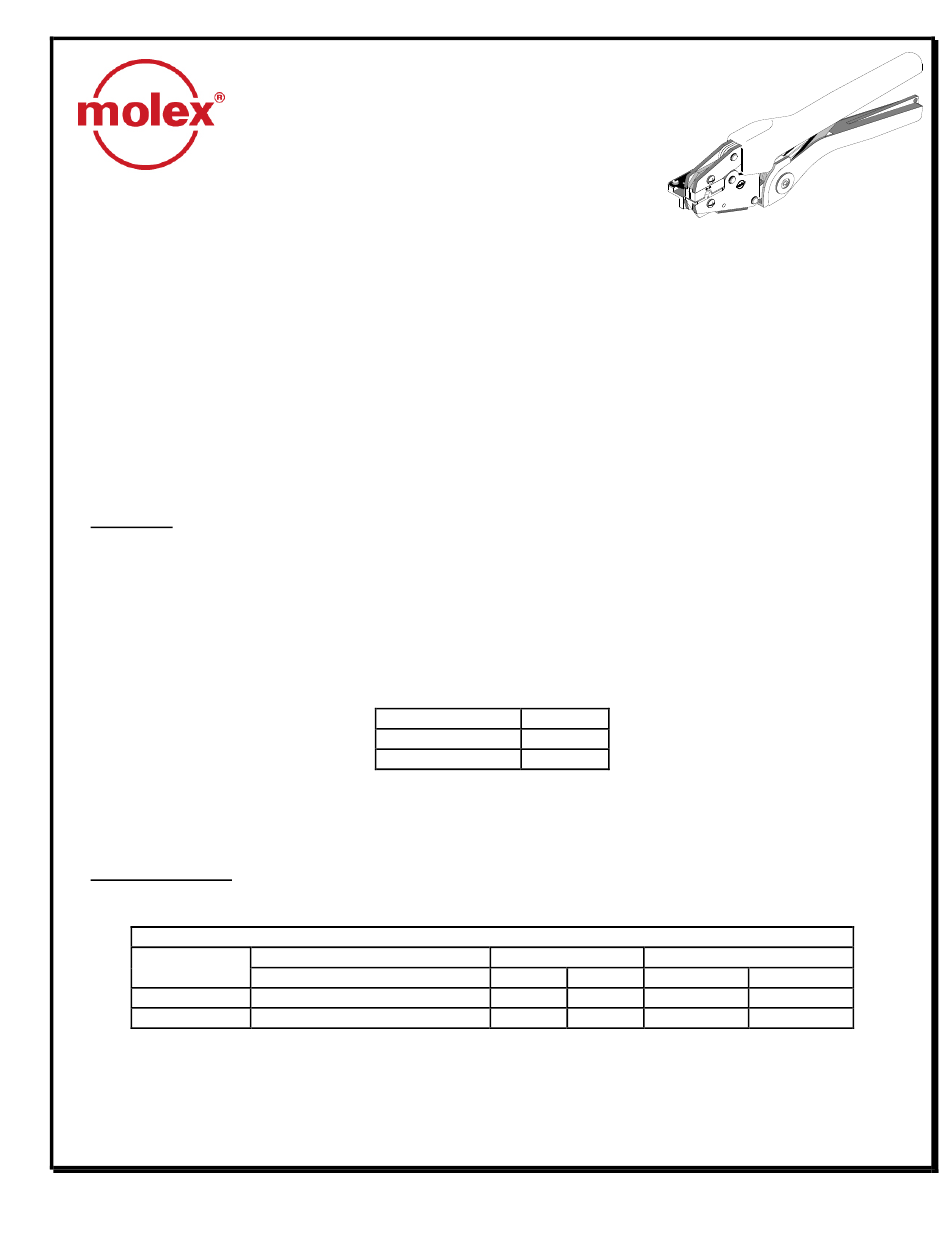

molex 64001-7300 Operating Instruction Sheet And Specifications

Hand Crimp Tool for AviKrimp ® FQD Terminals
Operating Instruction Sheet and Specifications
FEATURES

A full cycle ratcheting hand tool ensures complete crimps

Long handles for comfortable crimping with reduced crimping force

A precision user-friendly terminal locator wire stop holds terminals in the proper crimping
position

Insulation crimp adjustment allows a precise insulation crimp. To meet or exceed the
requirements of UL, CSA and Military Cass II

Single color-coded crimp pocket eliminates the possibility of using the wrong pocket
SCOPE
Products: AviKrimp ® Female Quick Disconnect 10-12 AWG
Testing
Mechanical
The tensile test or pull test is a means of evaluating the mechanical properties of the
crimped connections. The following charts show the UL specifications for various wire
sizes. The tensile strength is shown in pounds and indicates the minimum acceptable force
to break or separate the terminal from the conductor.
The following is a partial list of the product part numbers and their specifications that this tool
is designed to run. We will be adding to this list and an up to date copy is available on
www.molex.com.
Terminal No.
19019-0037
19019-0038
Doc No. ATS-640017300
COPY
Revision: A
Hand Crimp Tool
Part No. 64001-7300
Engineering No. RHT 2210
(Replaces 19285-0020)
Wire Size (AWG)
*UL – 310 – Quick Disconnects
Wire Size: 10 – 12 AWG 5.00 – 3.30mm²
Terminal Eng No. (REF)
Available in Reel form only
C-8143
C-8143T
Page 1 of 8
Revision Date: 01-22-07
*UL - 310
12 70
10 80
Wire Strip Length
In mm
.375 9.53
.375 9.53
Release Date: 01-22-07
Insulation Diameter Max.
In mm
.150 3.81
.150 3.81
UNCONTROLLED
