For Models
Communication
For use with all Panasonic KSUs with door phone
card. This unit is a replacement for the Panasonic
KXT-7775 door phone.

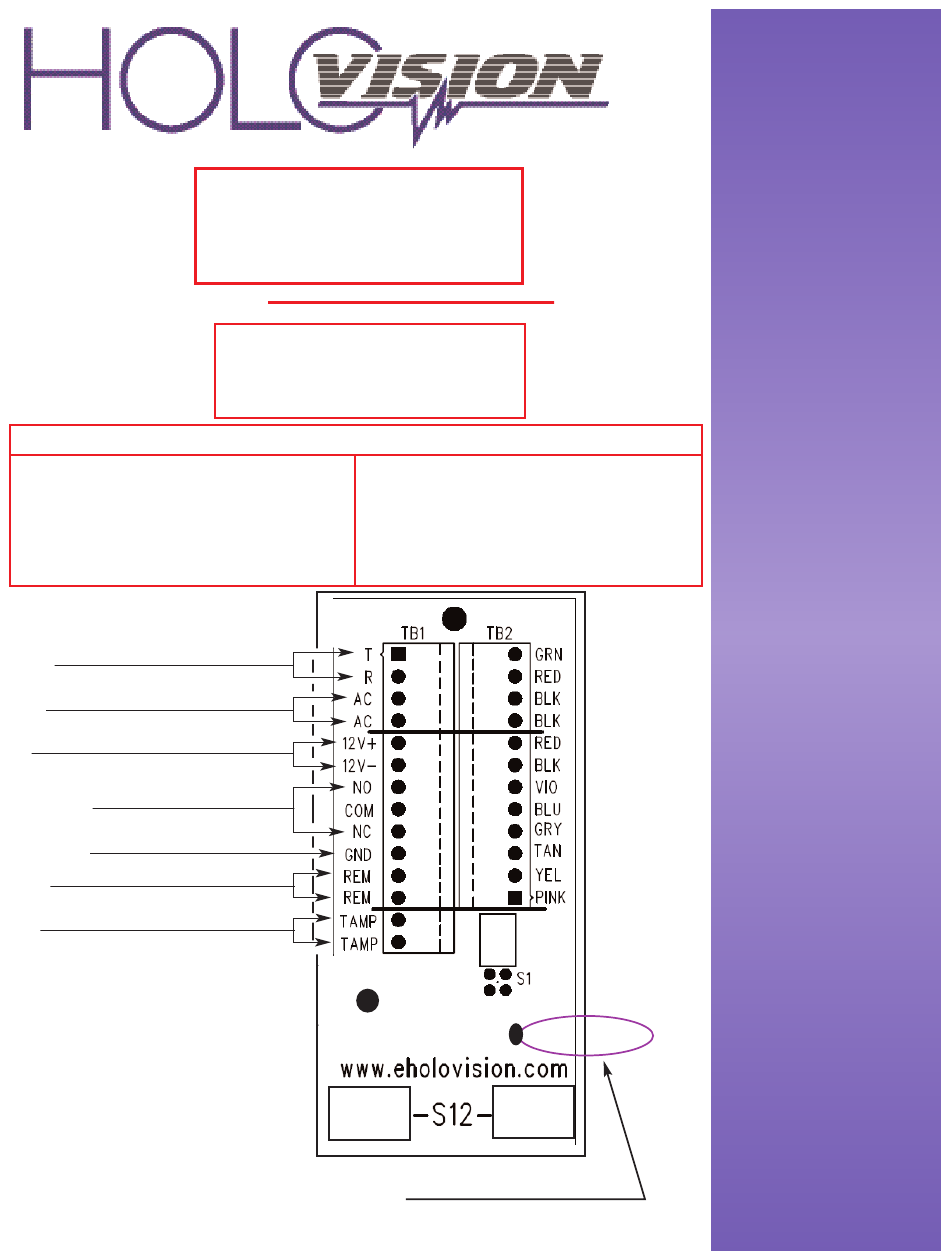

Intercom to PAN-2 Module
Not Used
12 VDC input (for camera and keypad)
NO, COM, NC relay connections
Keypad case ground
Remote bypass terminals (activate relay)
Connect tamper switch to alarm (optional)
Manual Type 6.2.0.8-RF
Paasonic KX-T7775 Intercom with Essex
"S-12 Stand - Alone" Keypad
400-S12-PAN2
401-S12-PAN2
403-S12-PAN2
404-S12-PAN2
410-S12-PAN2
411-S12-PAN2
Specifications
Access Control
Essex "stand-alone" 12 button keypad
1 relay plus 2 grounding outputs
(external relays required)
500 users
12 VDC power supply included
AC Loop for Strike
Cut for NO Contact Closure
INSTALLATION
INSTRUCTIONS
501 E. Goetz Ave.
Santa Ana, Ca 92707
www.eholovision.com
Ph. 714-434-6904
Fax 800-362-0002
HOLOVISION
Advertisement
Related Manuals for HOLOVISION 400-S12-PAN2
Summary of Contents for HOLOVISION 400-S12-PAN2
- Page 1 INSTALLATION INSTRUCTIONS Manual Type 6.2.0.8-RF Paasonic KX-T7775 Intercom with Essex “S-12 Stand - Alone” Keypad For Models 400-S12-PAN2 401-S12-PAN2 403-S12-PAN2 404-S12-PAN2 410-S12-PAN2 411-S12-PAN2 Specifications Access Control Communication Essex “stand-alone” 12 button keypad For use with all Panasonic KSUs with door phone 1 relay plus 2 grounding outputs card.
- Page 2 Essex Keypad Wiring DC Out for Gate Strike Strike 1 To Phones Door 1 NOTE: This connection is POLARITy SENSITIVE Refer to manual pages 6-8 for details 12v + 12v - 12vDC 1.5 A Loop Required for Strike DC AC Loop for Strike Cut for NO Contact Closure Gate Strike Remote...
- Page 3 Essex Keypad Wiring Contact Closure for Gate Operation Strike 1 To Phones Door 1 NOTE: This connection is POLARITy SENSITIVE Refer to manual pages 6-8 for details 12v + 12v - 12vDC 1.5 A AC Loop for Strike Cut for NO Contact Closure Gate Motor Page 3 Type 6.2.0.8-RF...
- Page 4 Programming the Essex Keypad Set Keypad Illumination to ON ALL OF THE TIME STEP ACTION BEEP Red LED Green LED Remove power Jumper the “CONFIG” pins on the rear of the keypad . V = 12 Apply 12 VDC power to red and black wires Quadruple Beep Flash Solid...
- Page 5 Programming the Essex Keypad Set User Codes STEP ACTION BEEP Red LED Green LED The Master Code is necessary to do this step. Master Code “123” is used as an example. Enter 1 1 2 3 Double Beep Slow Flash Solid Enter Double Beep...
- Page 6 Programming the Essex Keypad Deleting User Codes - using User Code/PIN STEP ACTION BEEP Red LED Green LED The Master Code is necessary to do this step. In this example, the Master Code is 123 1 1 2 3 Enter Double Beep Slow Flash Solid...
- Page 7 Programming the Essex Keypad Reset Keypad to Factory Defaults--- This is not normally necessary, but can be done as follows STEP ACTION BEEP Red LED Green LED Remove power Jumper the “CONFIG” pins on the rear of the keypad Apply 12 VDC power to red and black wires ONLY Quadruple Beep Flash Solid...
- Page 8 501 E. Goetz Ave. Santa Ana, Ca 92707 Ph. 714-434-6904 Fax 800-362-0002 www.eholovision.com...
